Industrial Automation

Anchor Mount

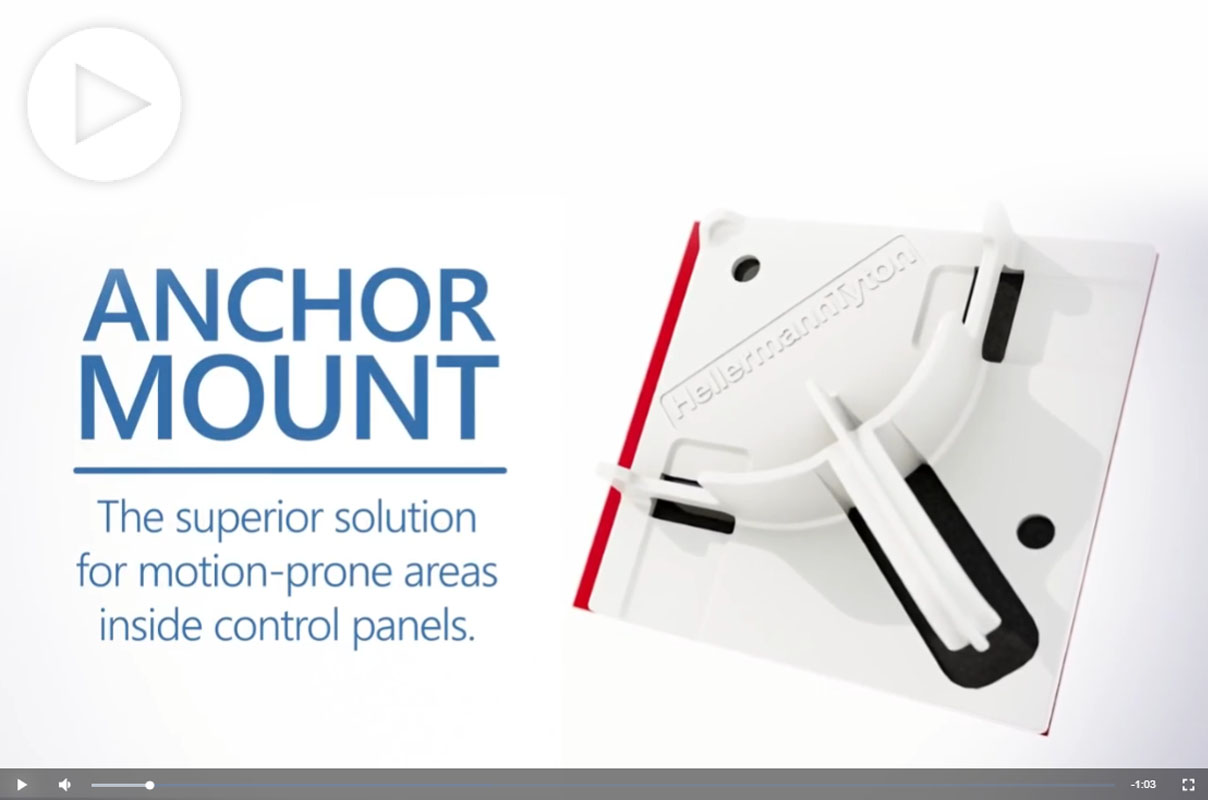

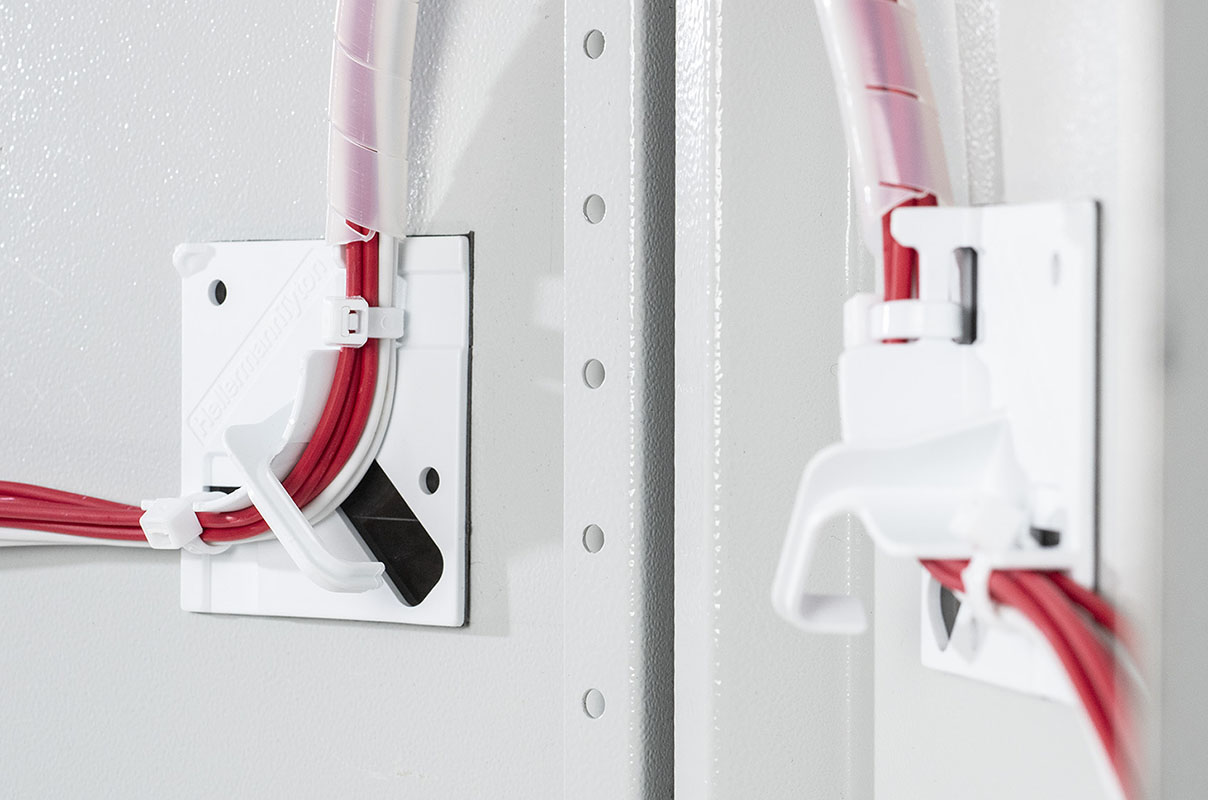

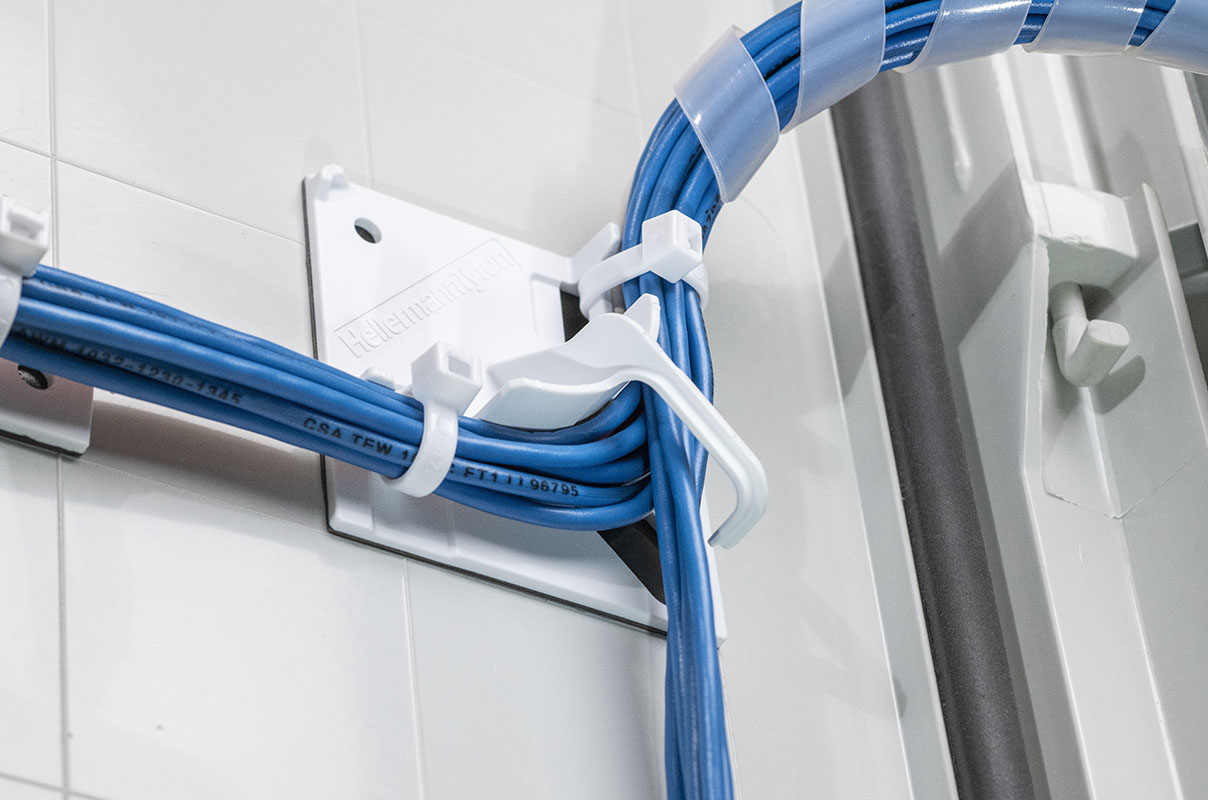

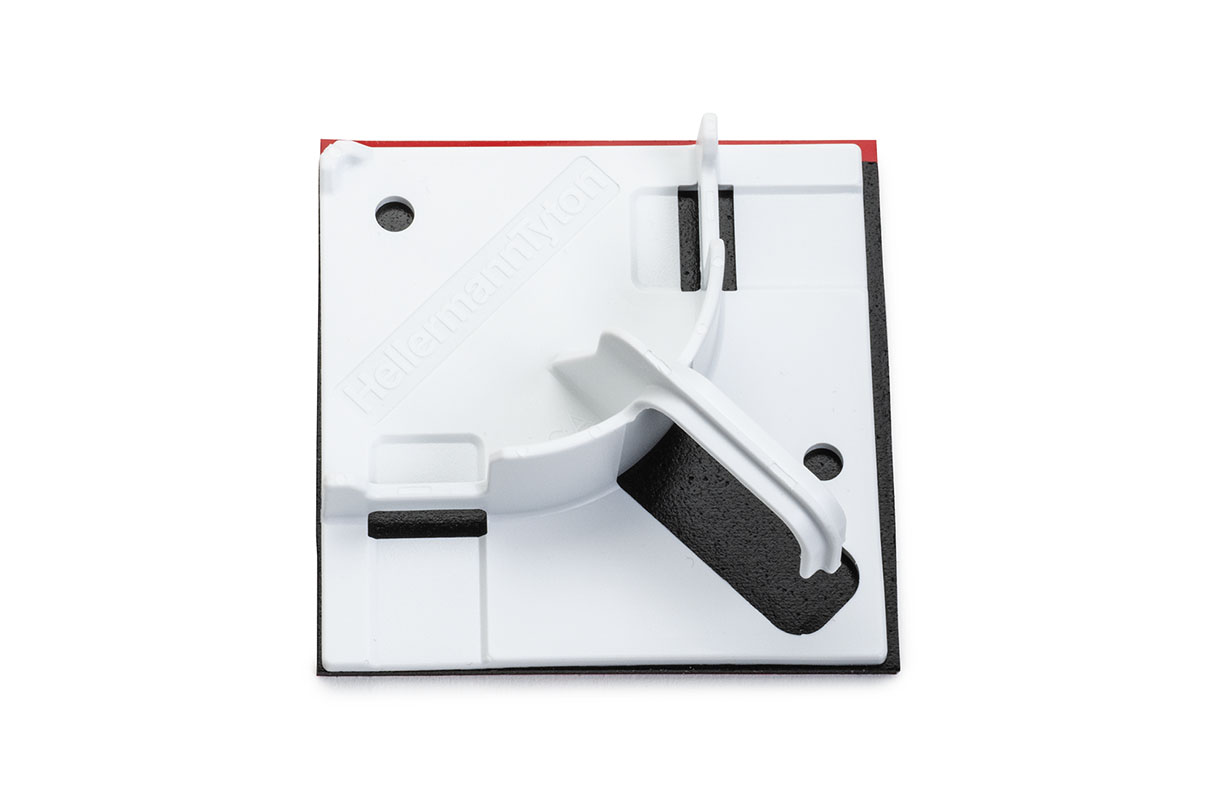

Anchor Mounts

Large footprint and acrylic adhesive deliver excellent, long-lasting adhesion.
Part architecture and large size eliminate need for multiple standard adhesive mounts, allowing for part consolidation and savings.
Retention arm enables installers to stage cable installation before permanently fastening.
Unique EZ Feed cable tie slot eliminates common obstructions for faster completion.
Integrated holes for mechanical fastening if desired.

Documents

High Density

Slotted

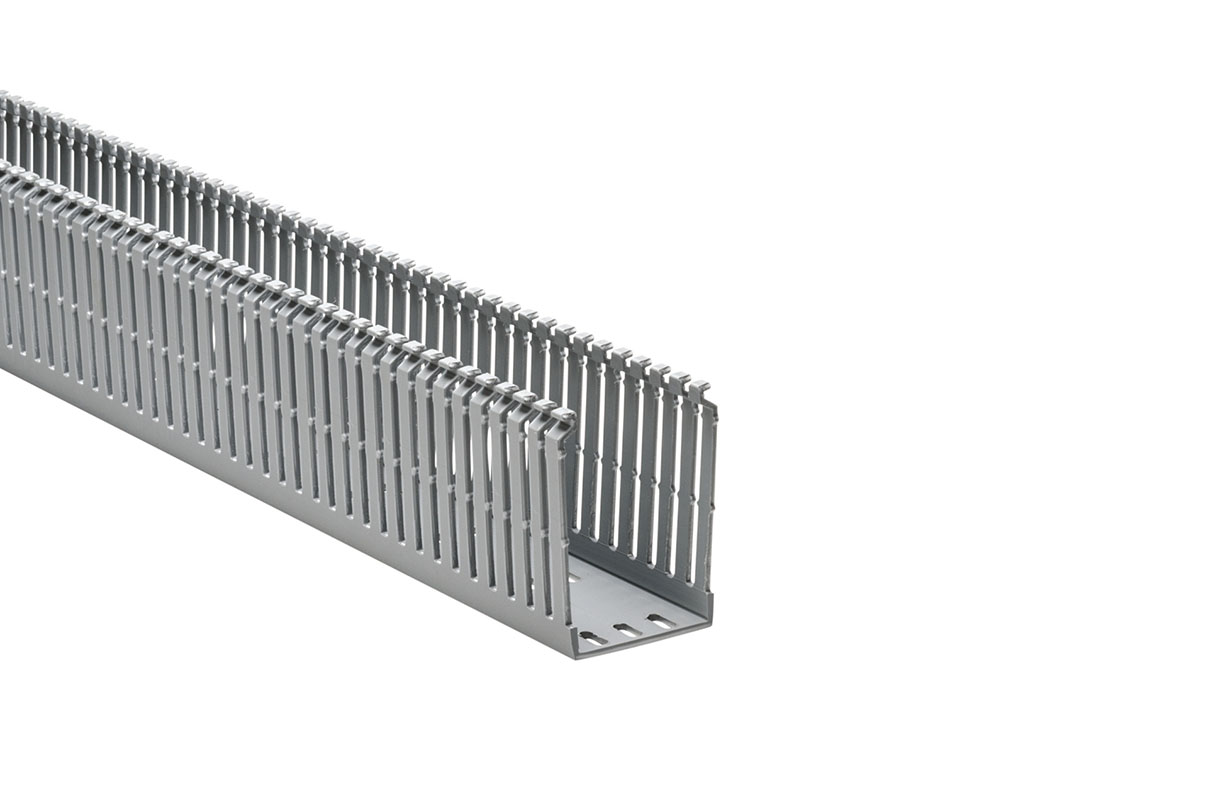

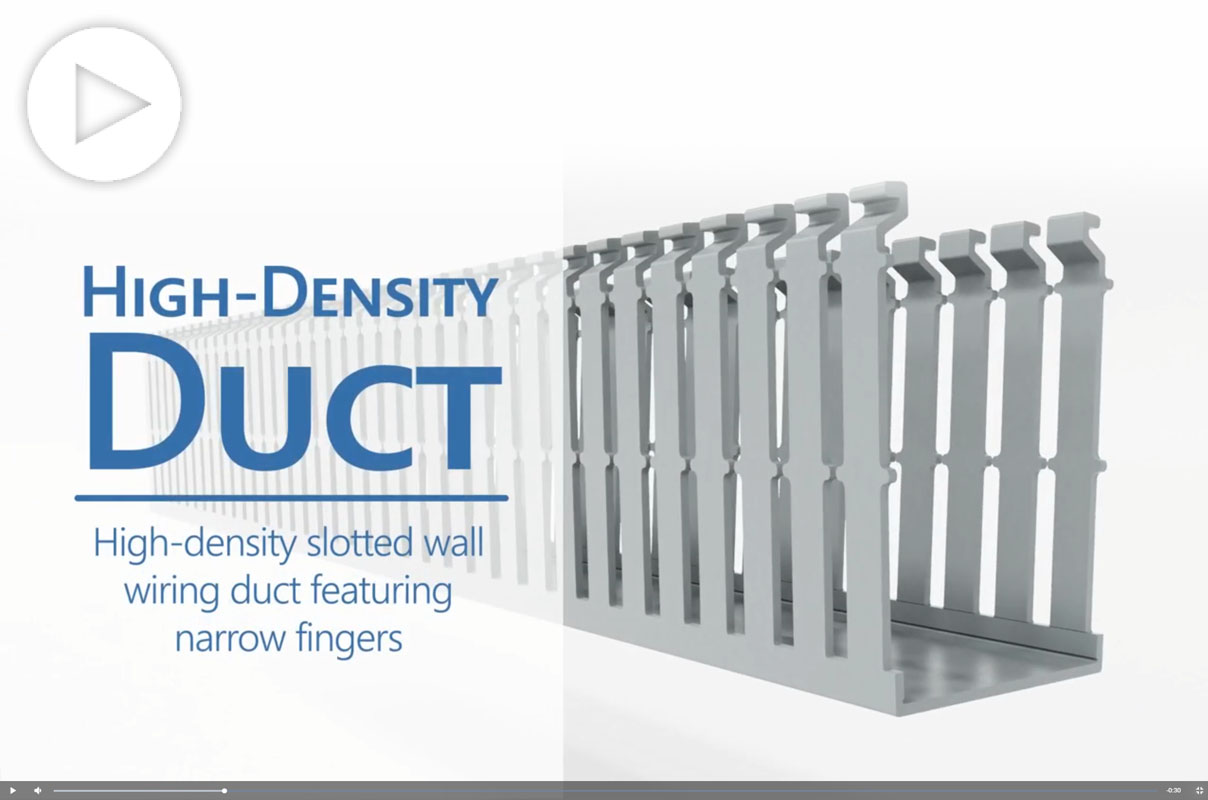

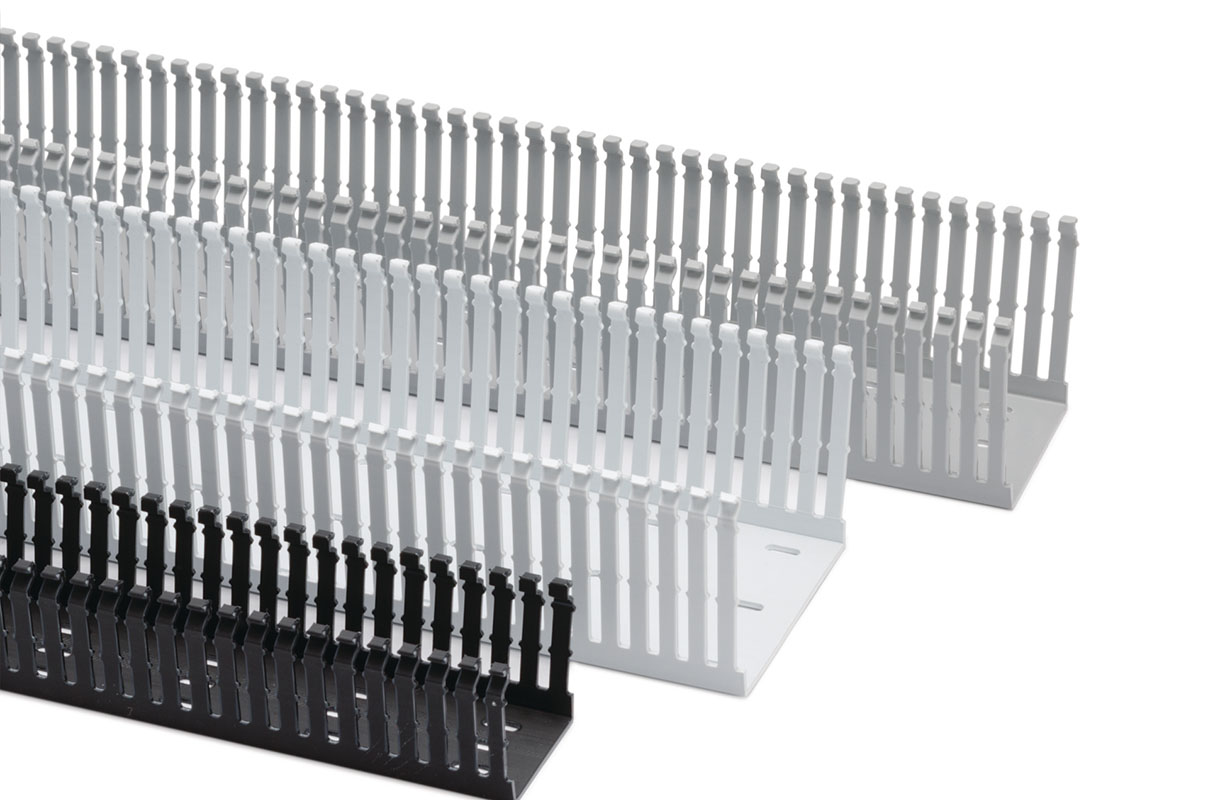

Wiring Duct – Slotted, High Density

Narrow fingers reduce fanning of the wires to the terminal blocks, presenting a neater appearance.
Each finger is provided with a double restriction to hold wires in the bottom portion of the duct, allowing for easier installation.
Mounting holes are uniform in size and located every 2 inches to accommodate compact designs and ease installation.
Optional covers snap on and off easily and feature a non-slip lining, ensuring they remain in place during transport and under vibration.

Documents

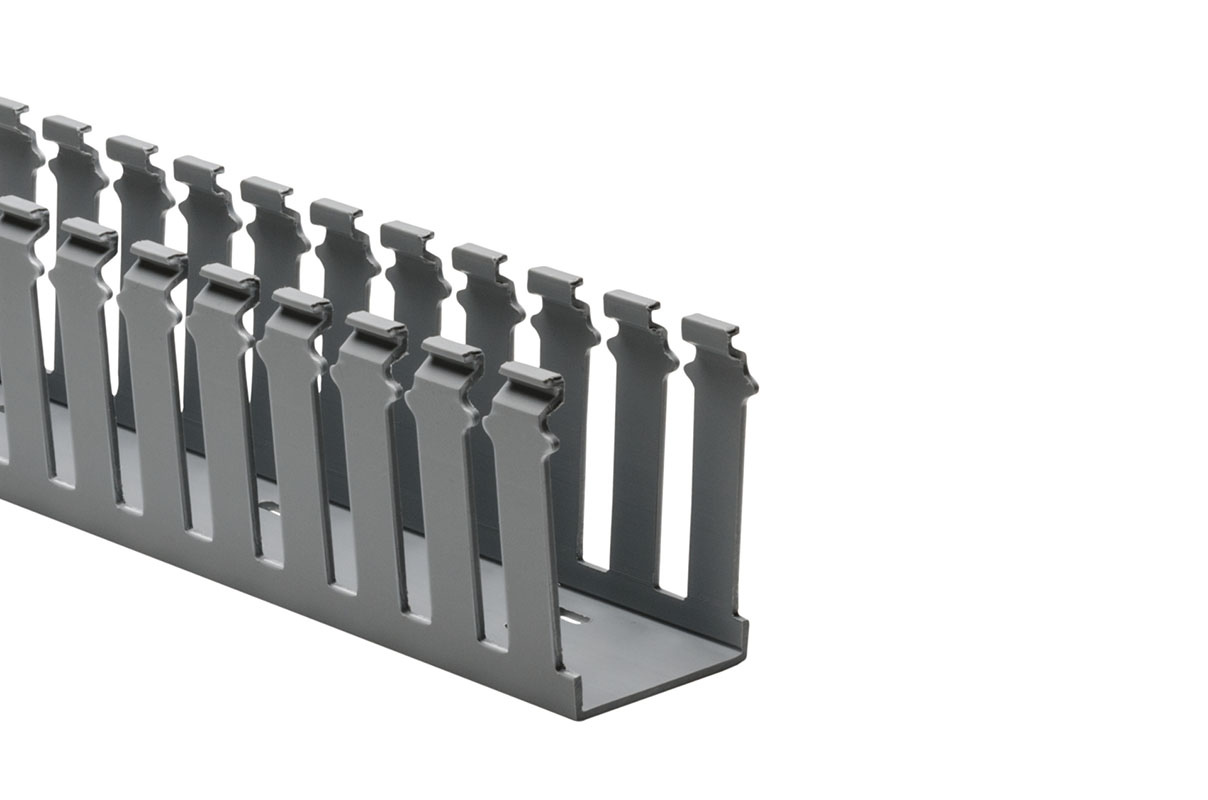

Wiring Duct – Slotted

Strong fingers prevent unwanted breaking.
Restricted opening prevents unintended removal of wires and permits any individual wire to be traced without disconnection.
Supplied with mounting holes to streamline installation.
Optional covers snap on and off easily and feature a non-slip lining, ensuring they remain in place during transport and under vibration.

Documents

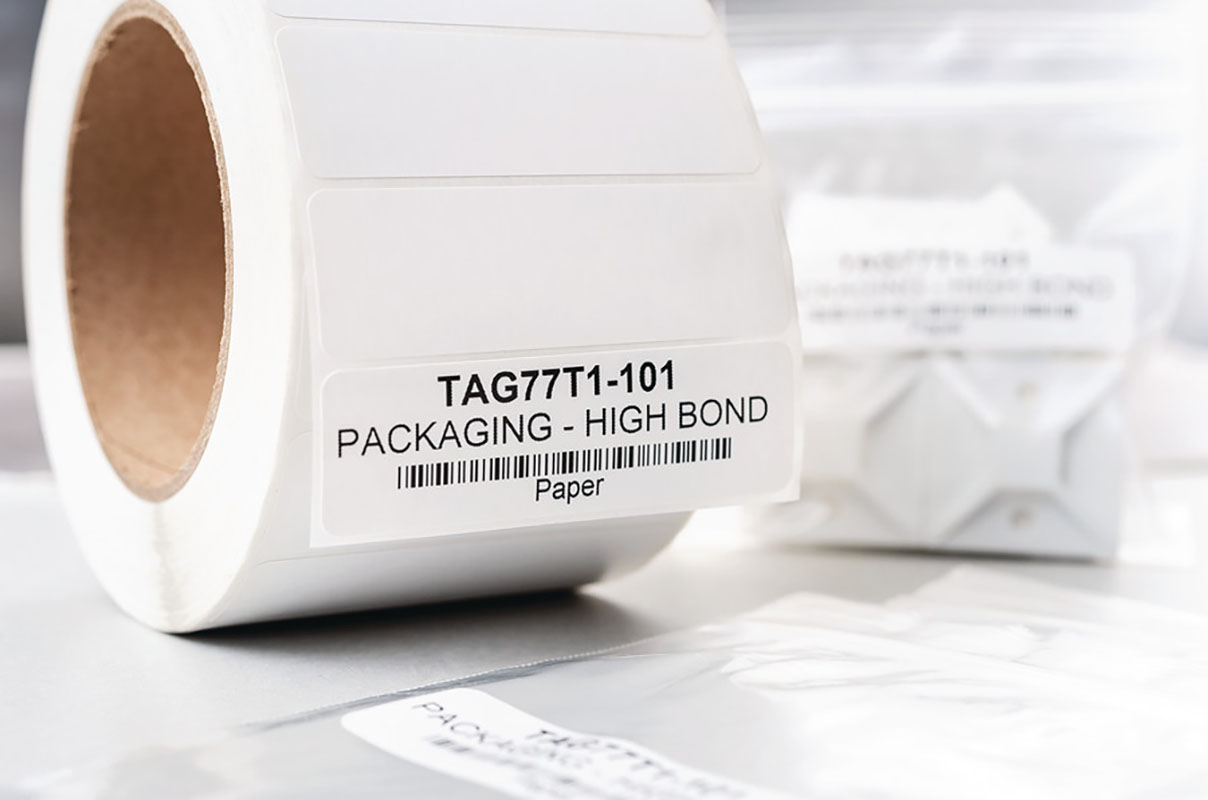

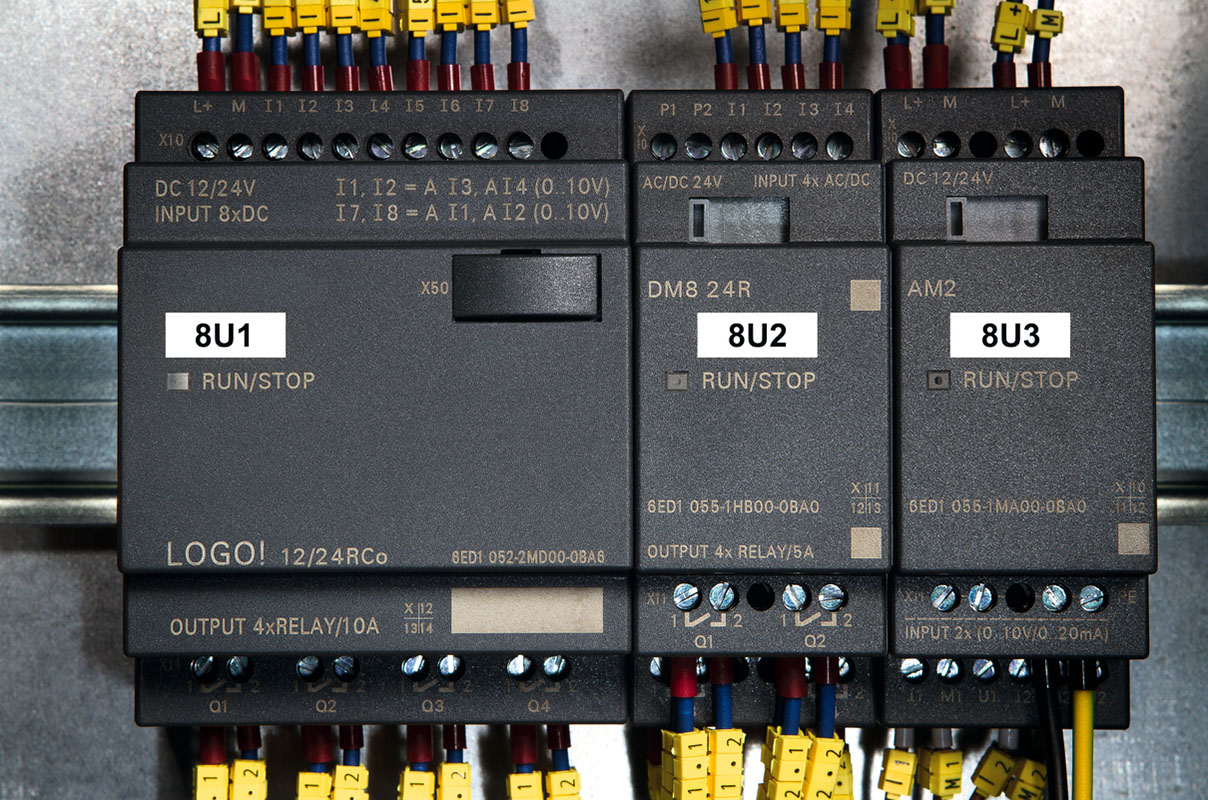

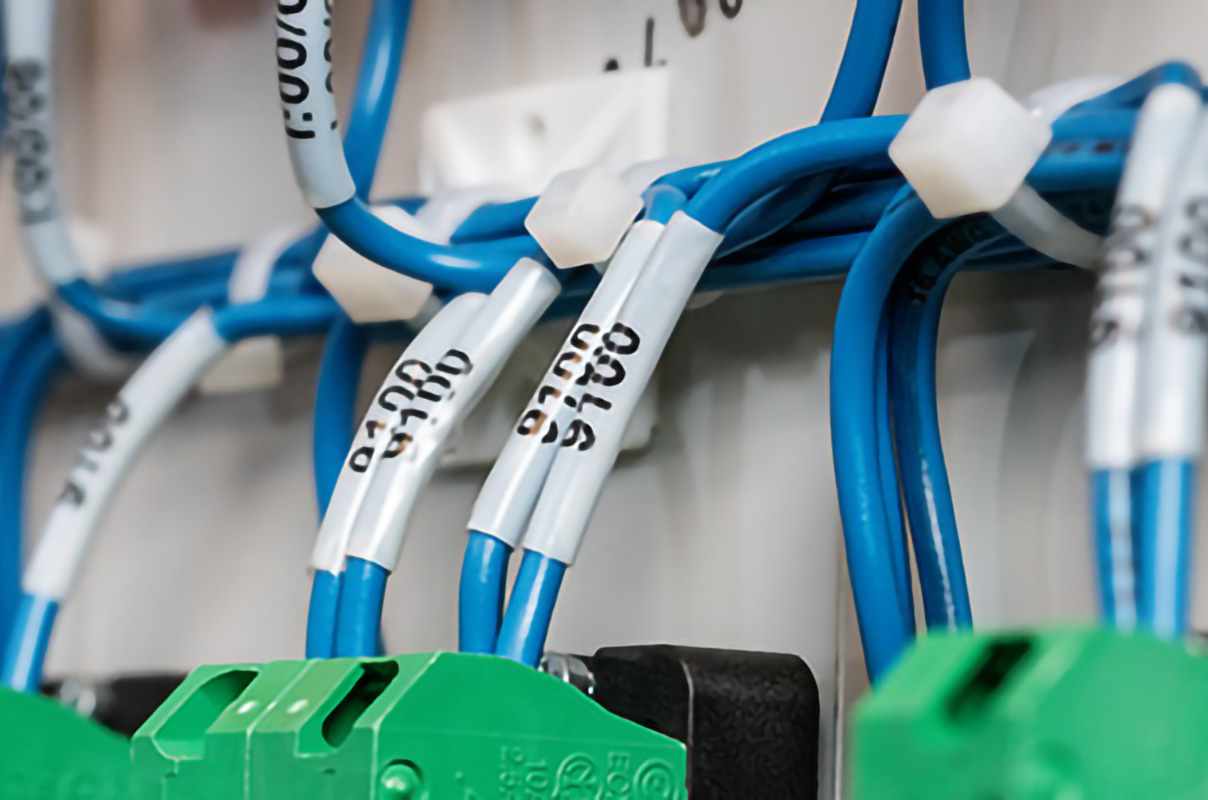

Thermal Transfer Labels

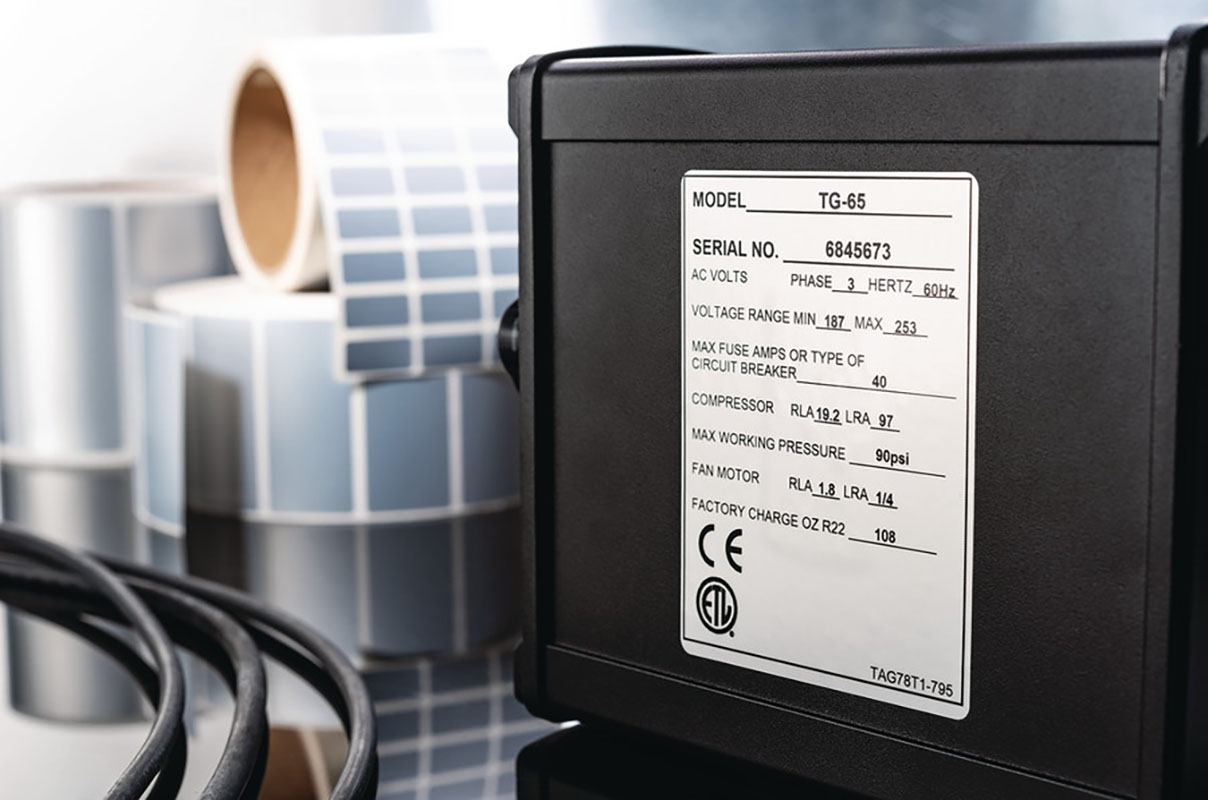

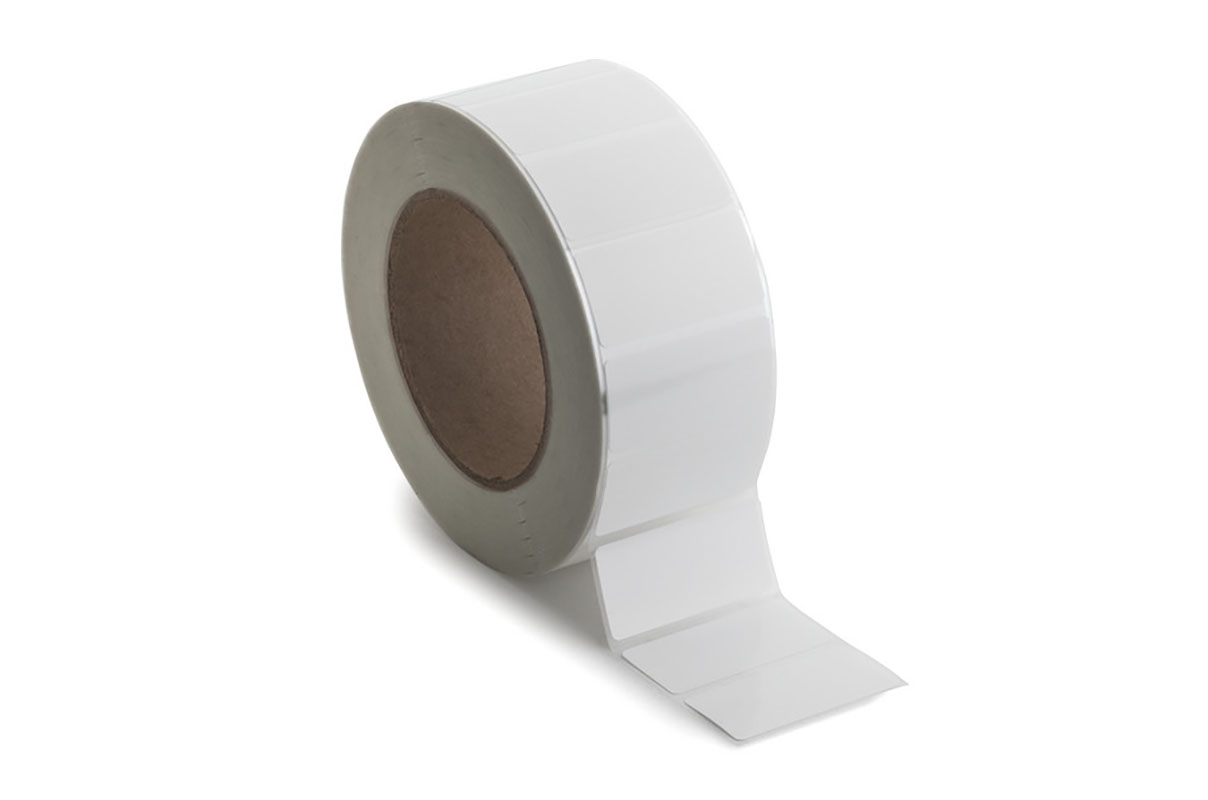

Thermal Transfer Labels

HellermannTyton Self-Laminating Labels come on rolls on a standard 3" core for easy loading into a printer or caddy.
Labels are conformable so that they can bend around small gauge wires and tight bends without coming loose over time.
Labels are UL recognized for indoor and outdoor use to expand application options.
HellermannTyton thermal transfer labels work in any thermal transfer printer so that the user always has options to get labels printed without being locked into a single vendor.

Documents

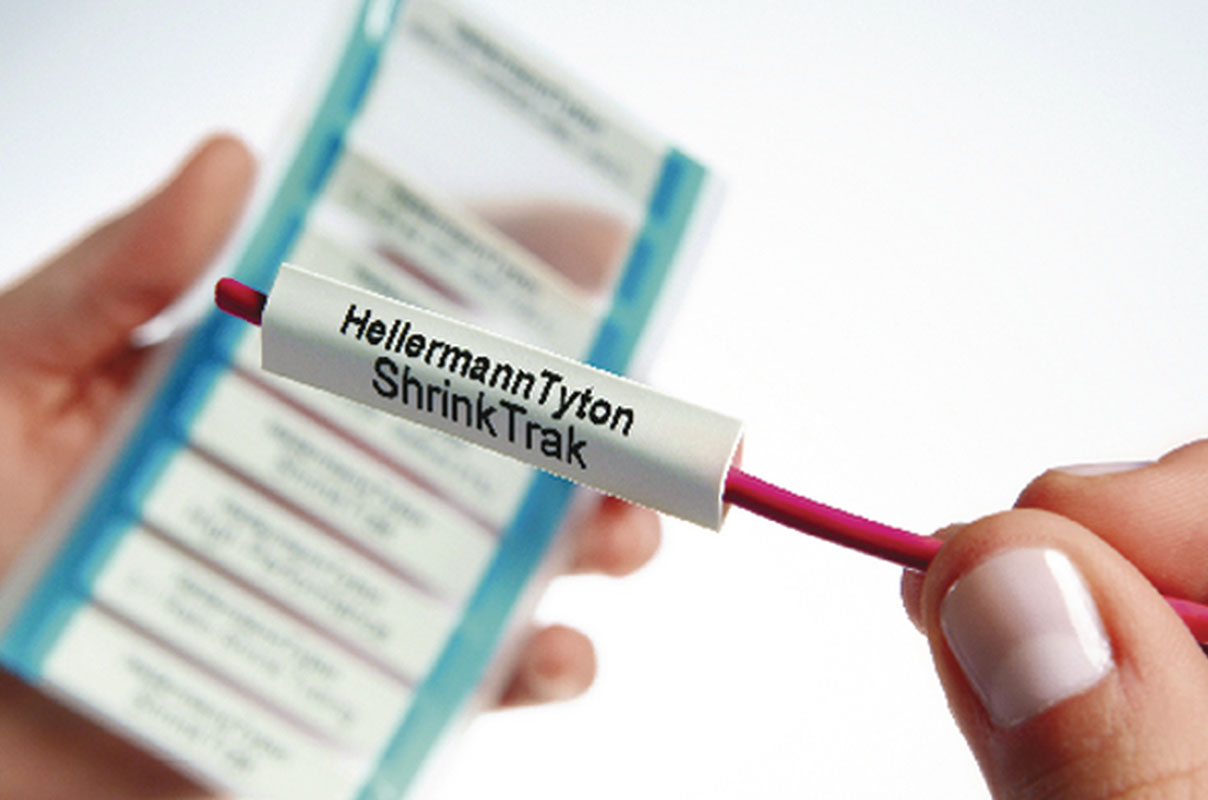

ShrinkTrak Labels

Thermal Transfer Adhesive Labels

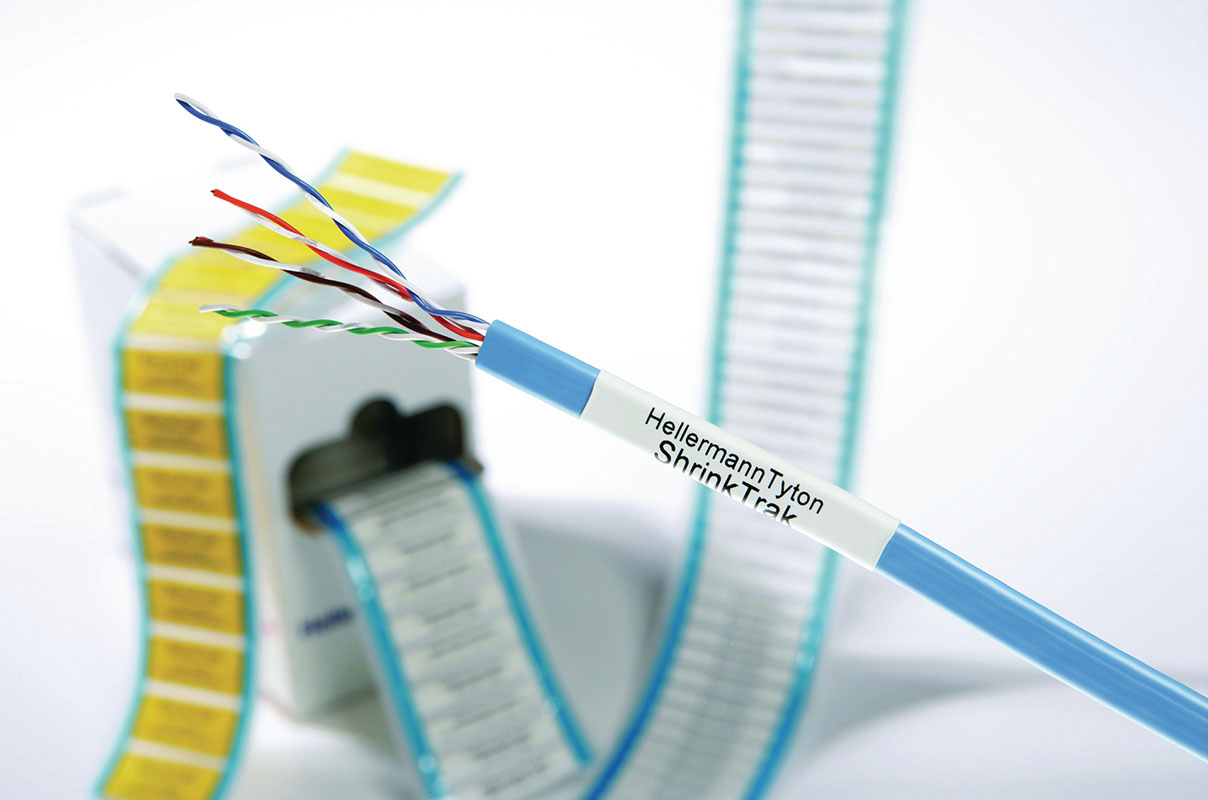

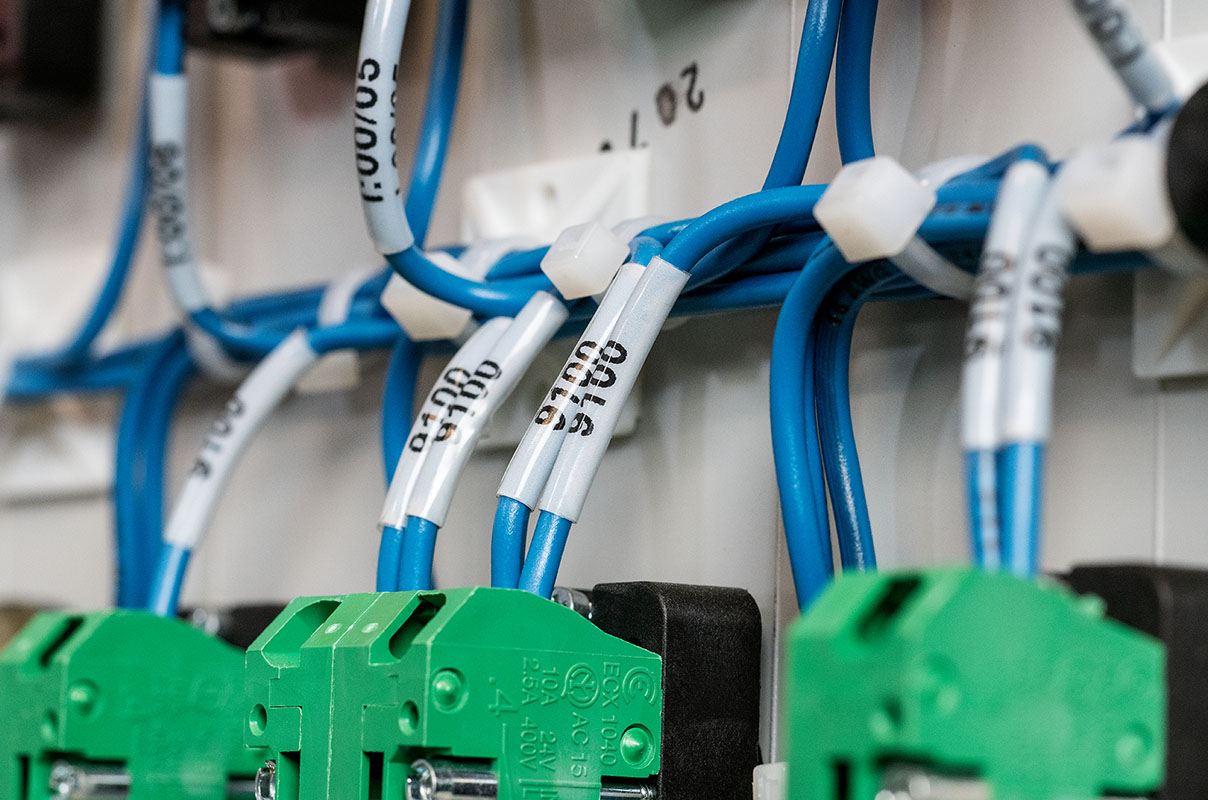

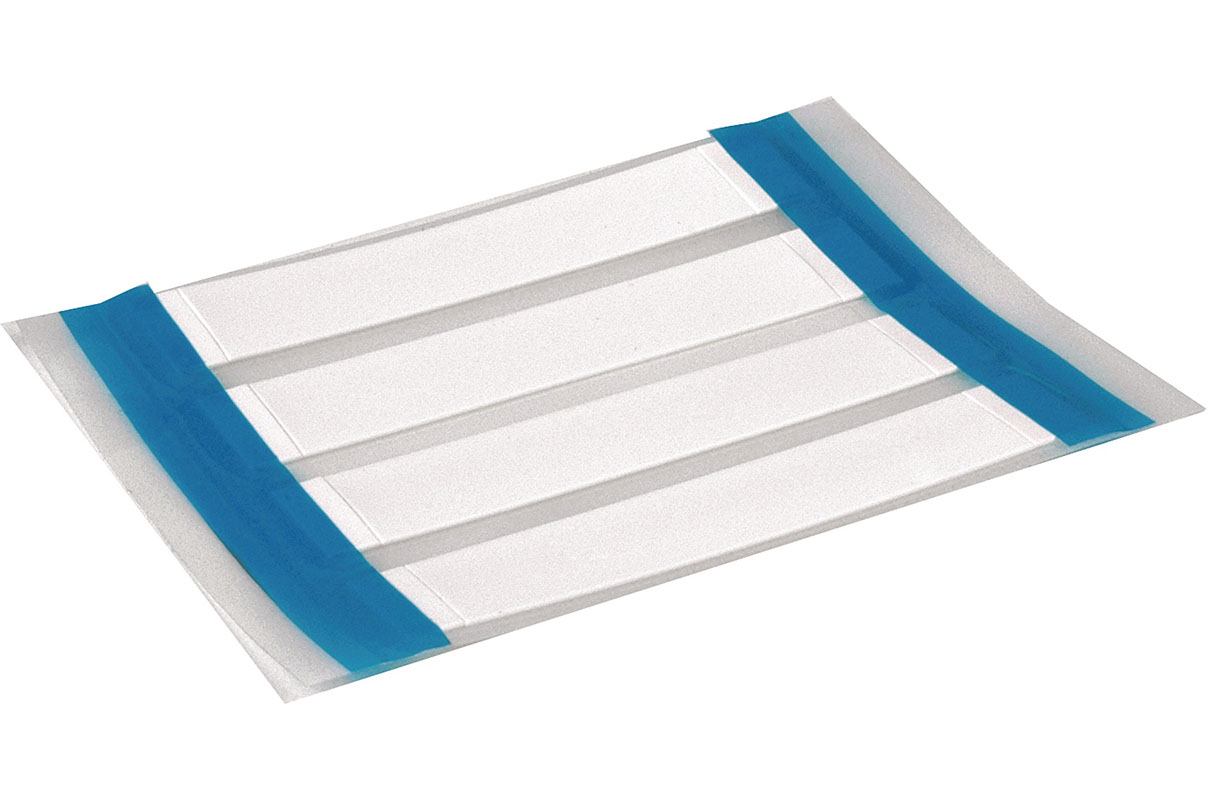

ShrinkTrak Labels

Halogen free, for low smoke propagation, density and toxicity.
50 mm, 25 mm and 16 mm pre-cut marker options are standard to get multiple labels out of one tag.
Provided in convenient storage boxes for protection.

Documents

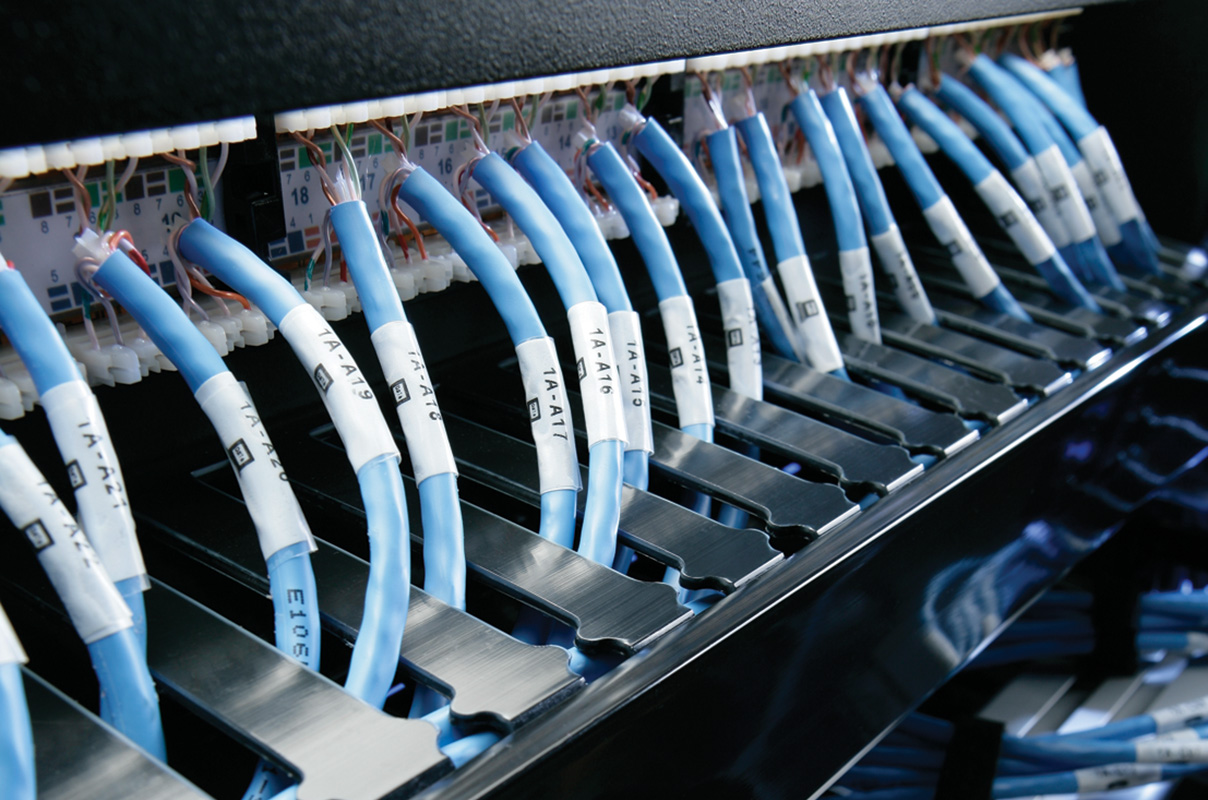

Thermal Transfer Adhesive Labels, Self-Laminating

HellermannTyton Self-Laminating Labels come on rolls on a standard 3" core for easy loading into a printer or caddy.
Labels are conformable so that they can bend around small gauge wires and tight bends without coming loose over time.
Labels are UL recognized for indoor and outdoor use to expand application options.
HellermannTyton thermal transfer labels work in any thermal transfer printer so that the user always has options to get labels printed without being locked into a single vendor.

Documents

Spiralwrap

Helawrap

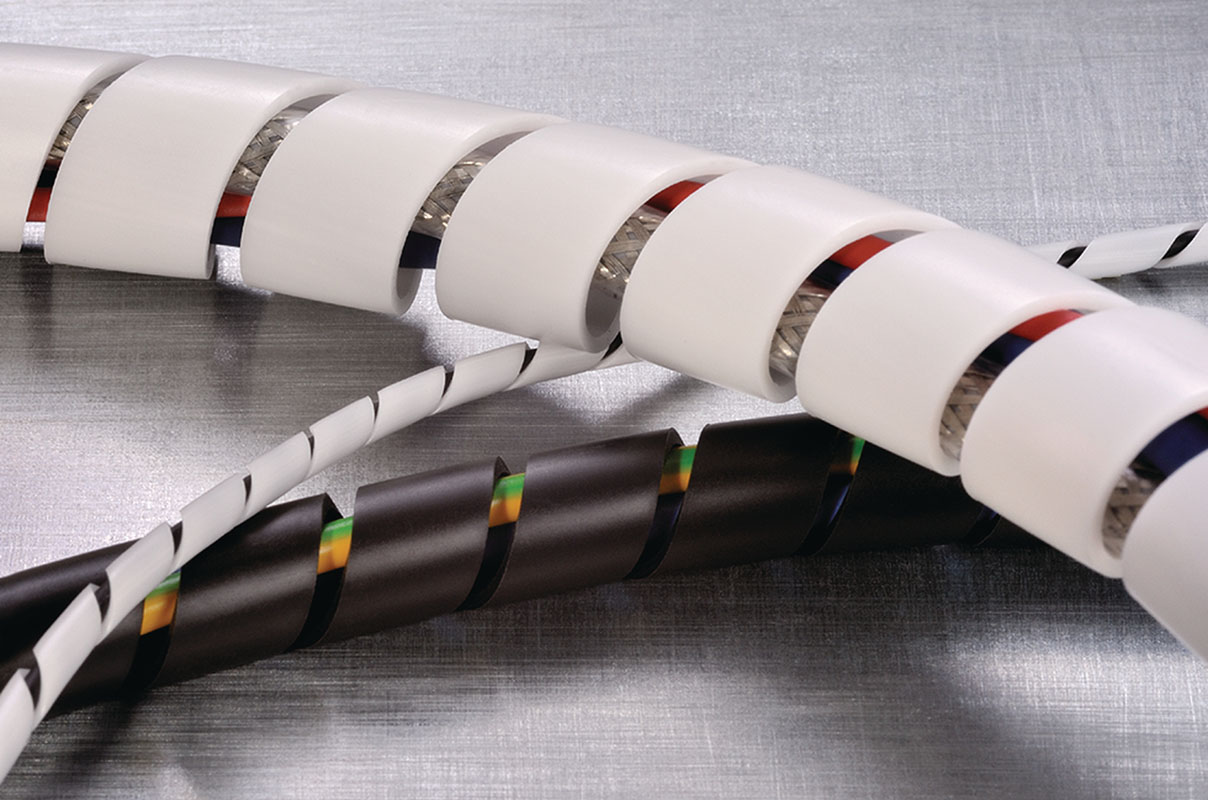

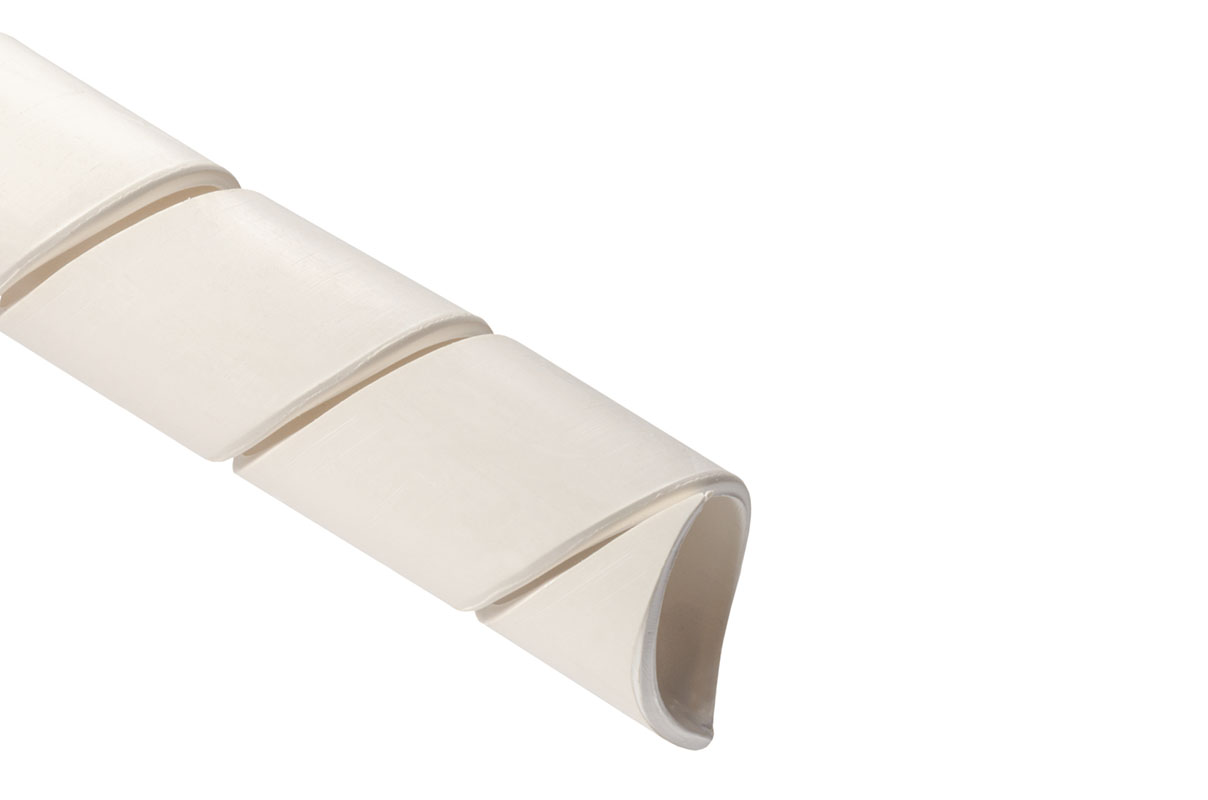

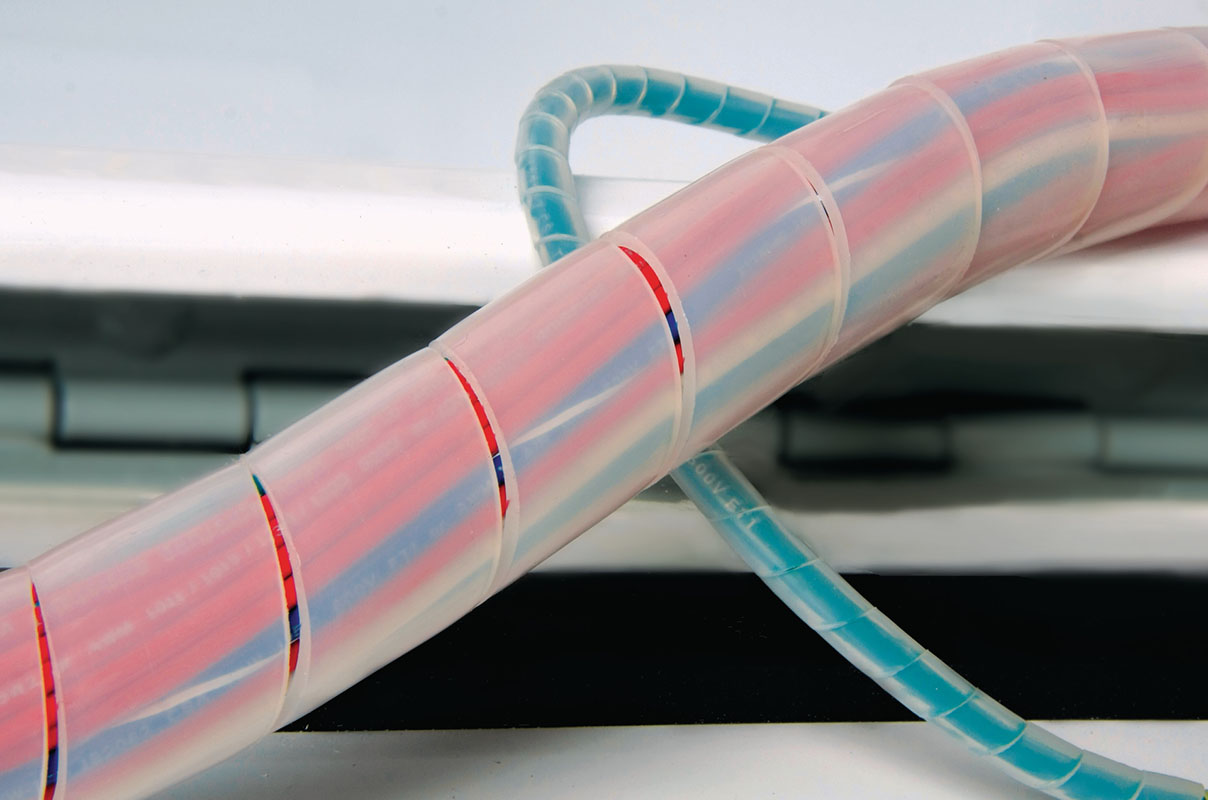

Spiralwrap

Protective sheathing allows flexible routing and lead-out of cables.
Inner edges are beveled, preventing damage to cables.
In the event maintenance is necessary, product is reusable.
Spiralwrap is UL Recognized and resistant to most chemicals.

Documents

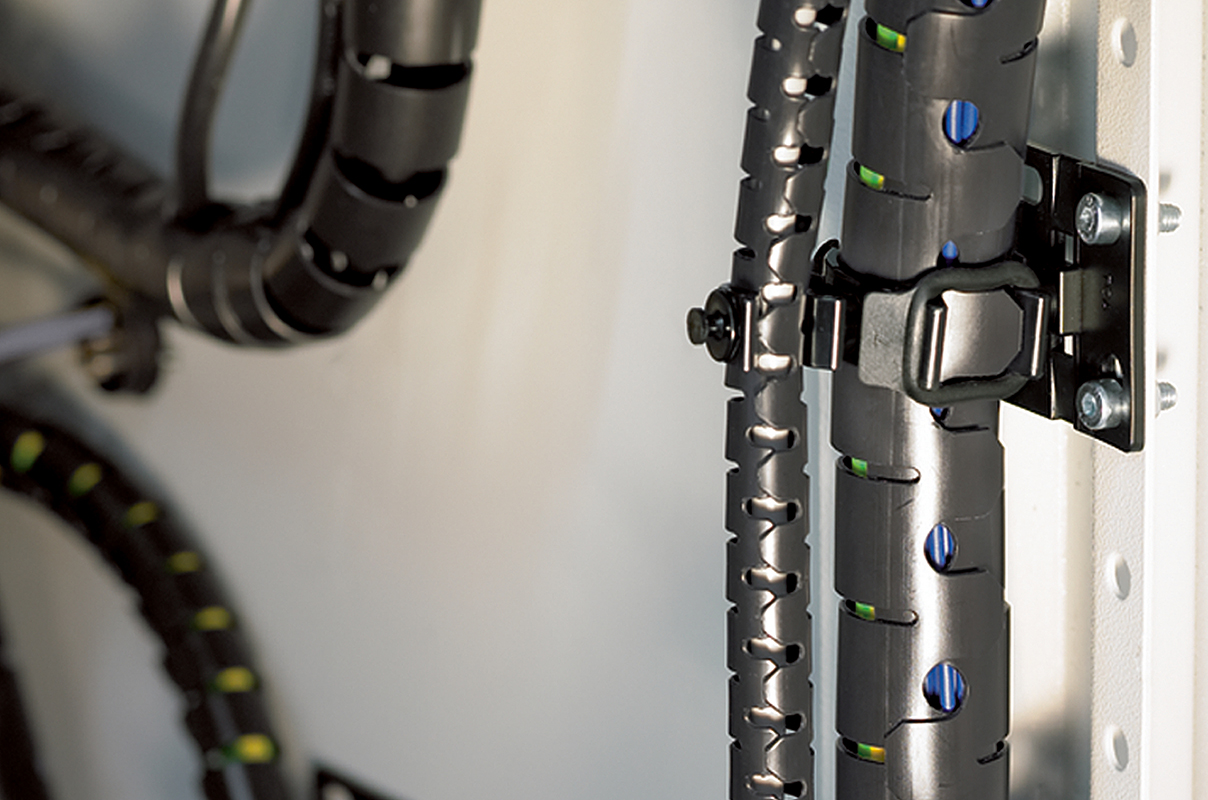

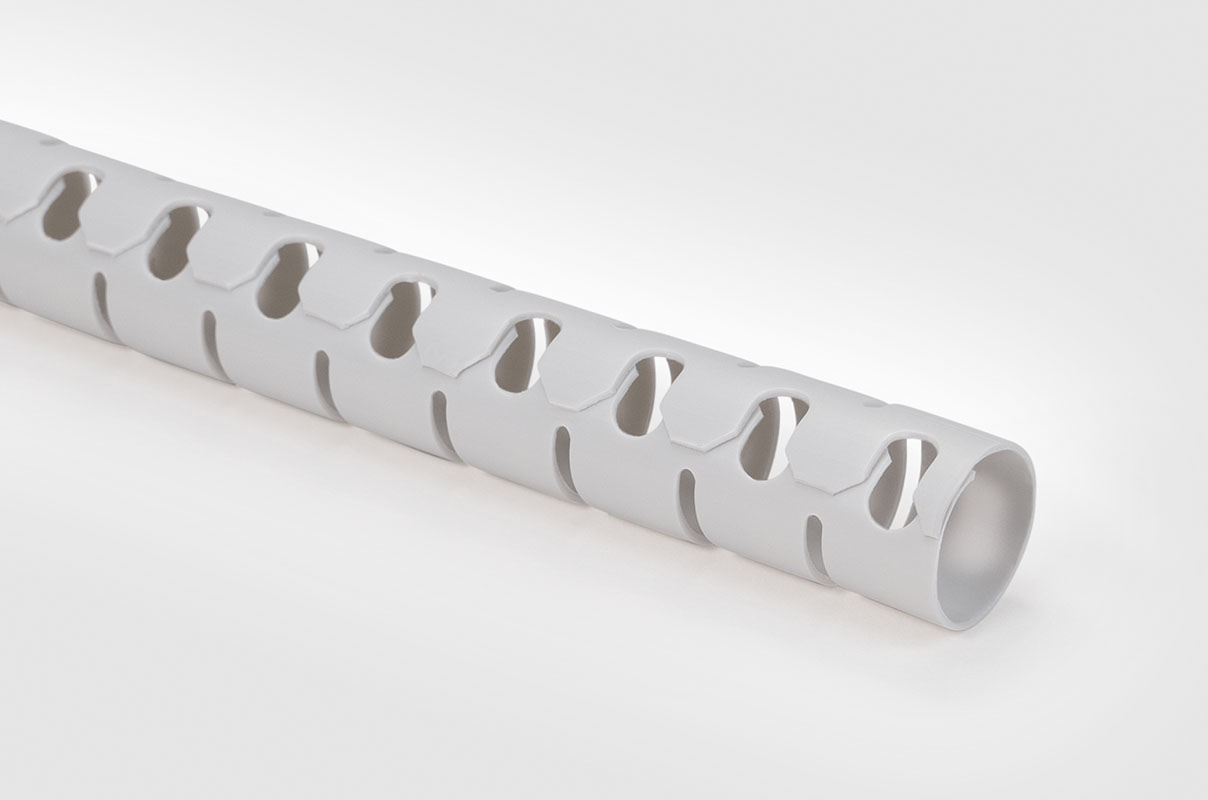

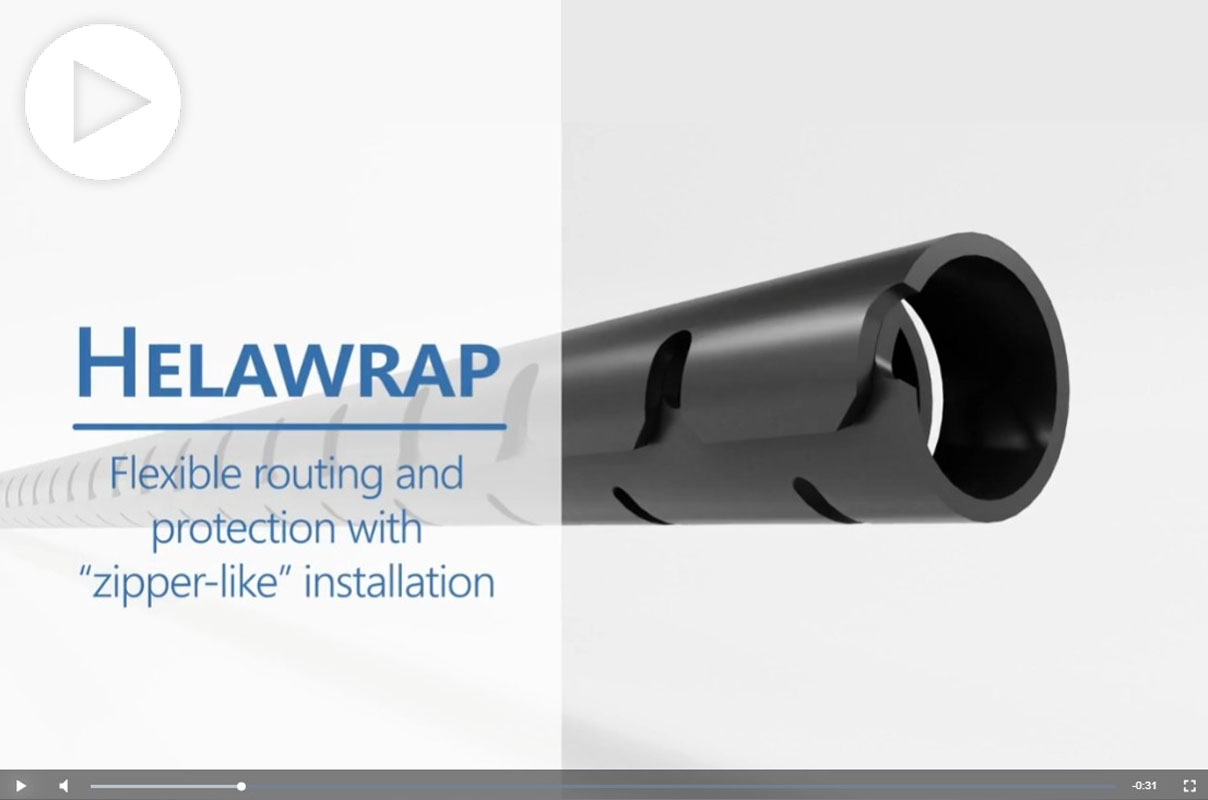

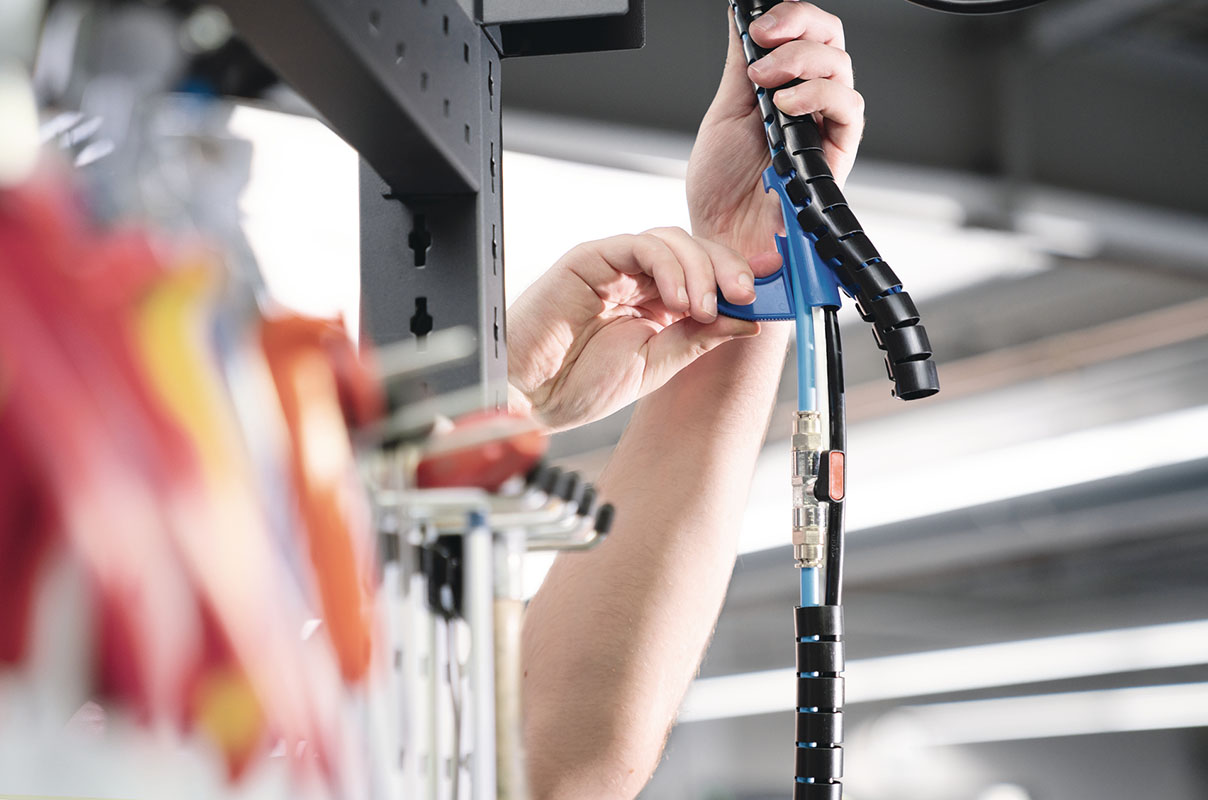

Helawrap

Designed for applications that demand highly flame retardant materials.
Unique open design allows for easy branch-offs at any point along the harness.
Overwrap formation provides abrasion protection and accommodates multiple bundle configurations.
Flexible construction and design is well suited for applications that involve movement and vibration.
Easy-to-use installation tool makes assembly fast and easy.

Documents

WireRail

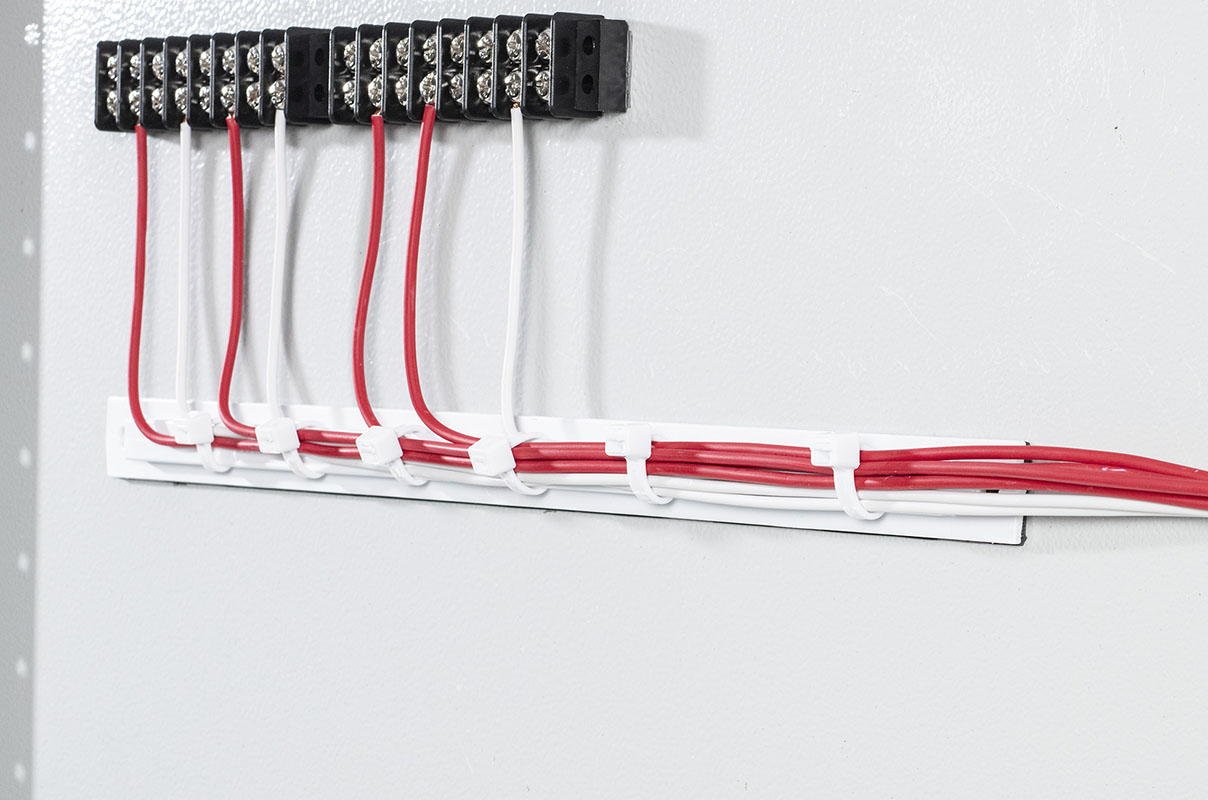

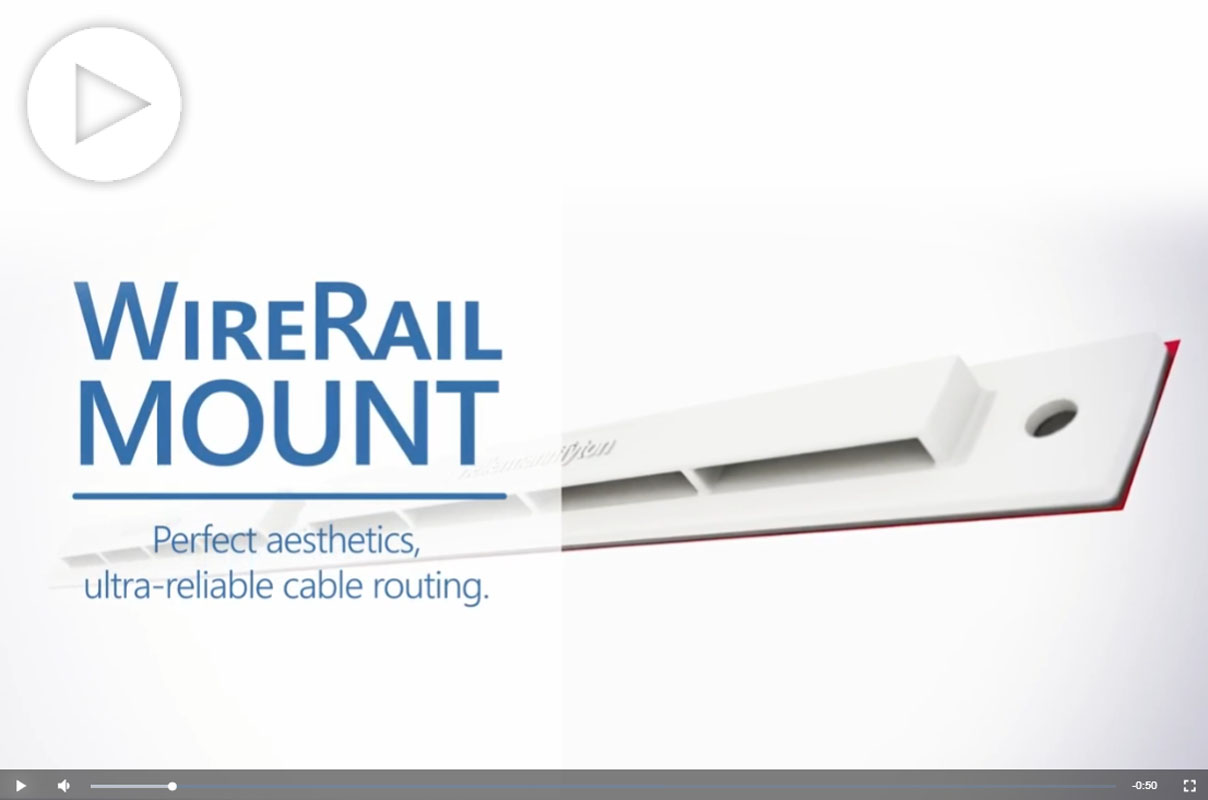

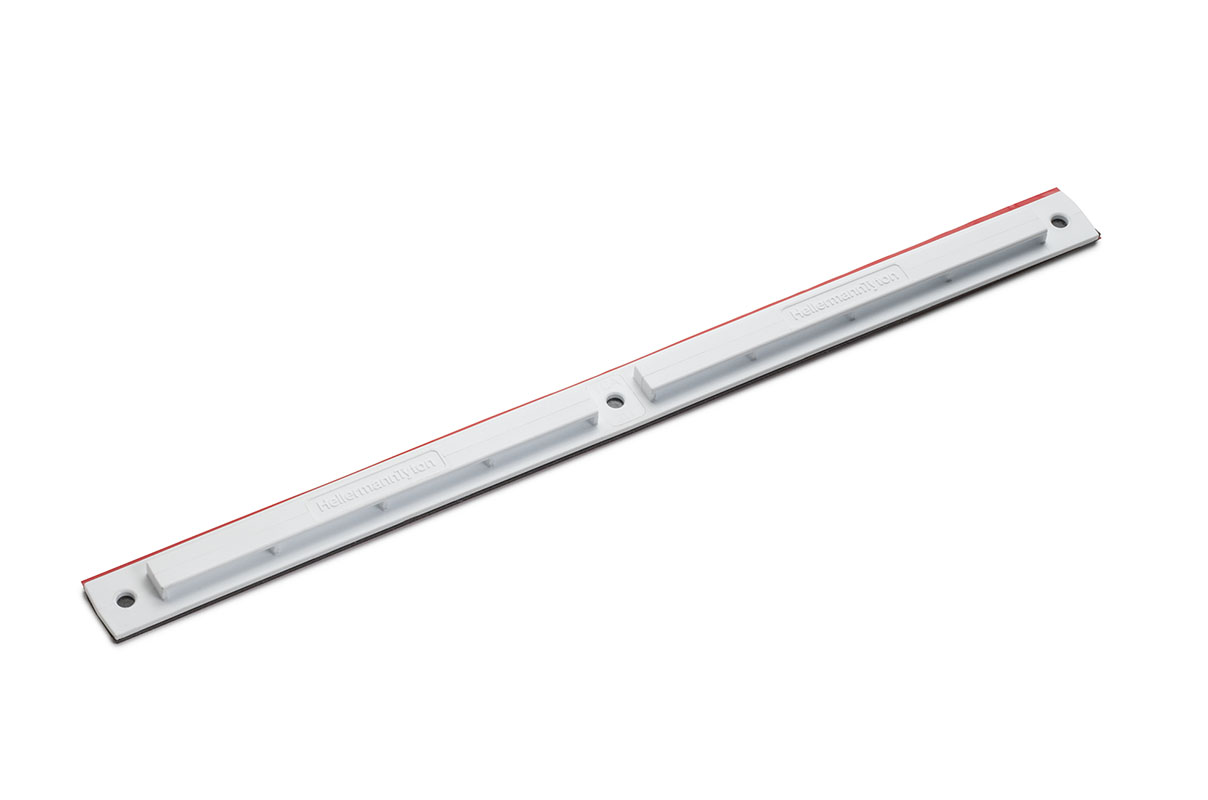

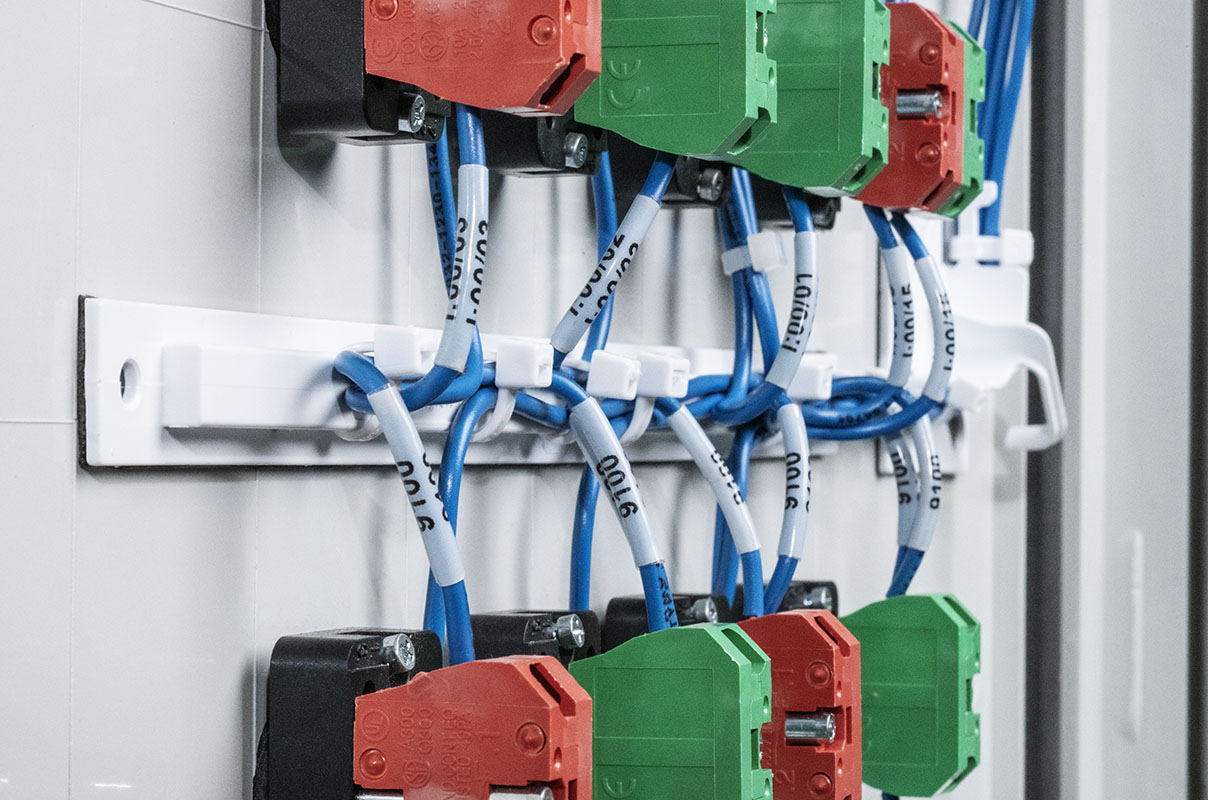

WireRail

Extended-length mount streamlines routing of longer wire bundles in straight-line applications.
Multiple cable tie slots offer routing flexibility during cable installations.
Extra-large adhesive footprint will outlast smaller square mounts.
Mounting holes allow for optional mechanical fastening if desired.

Documents

Adhesive Mount

Screw Mount

Twist Mount

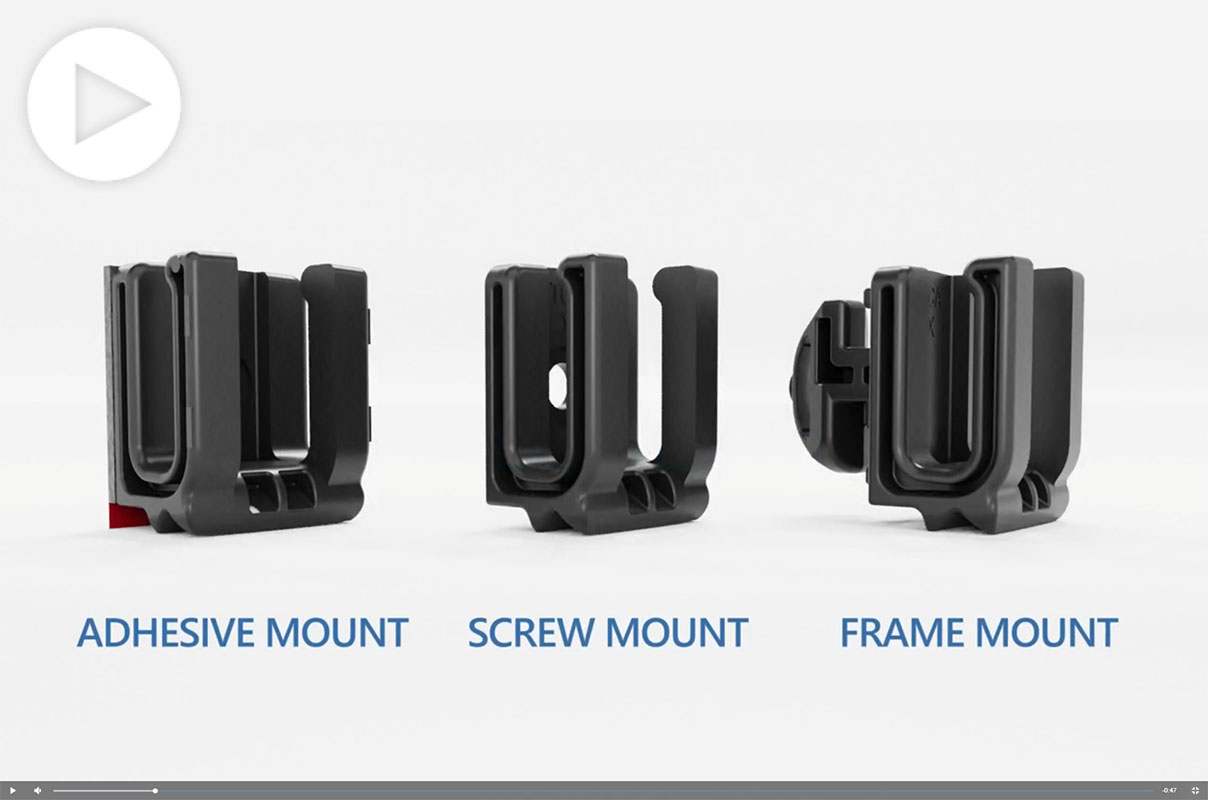

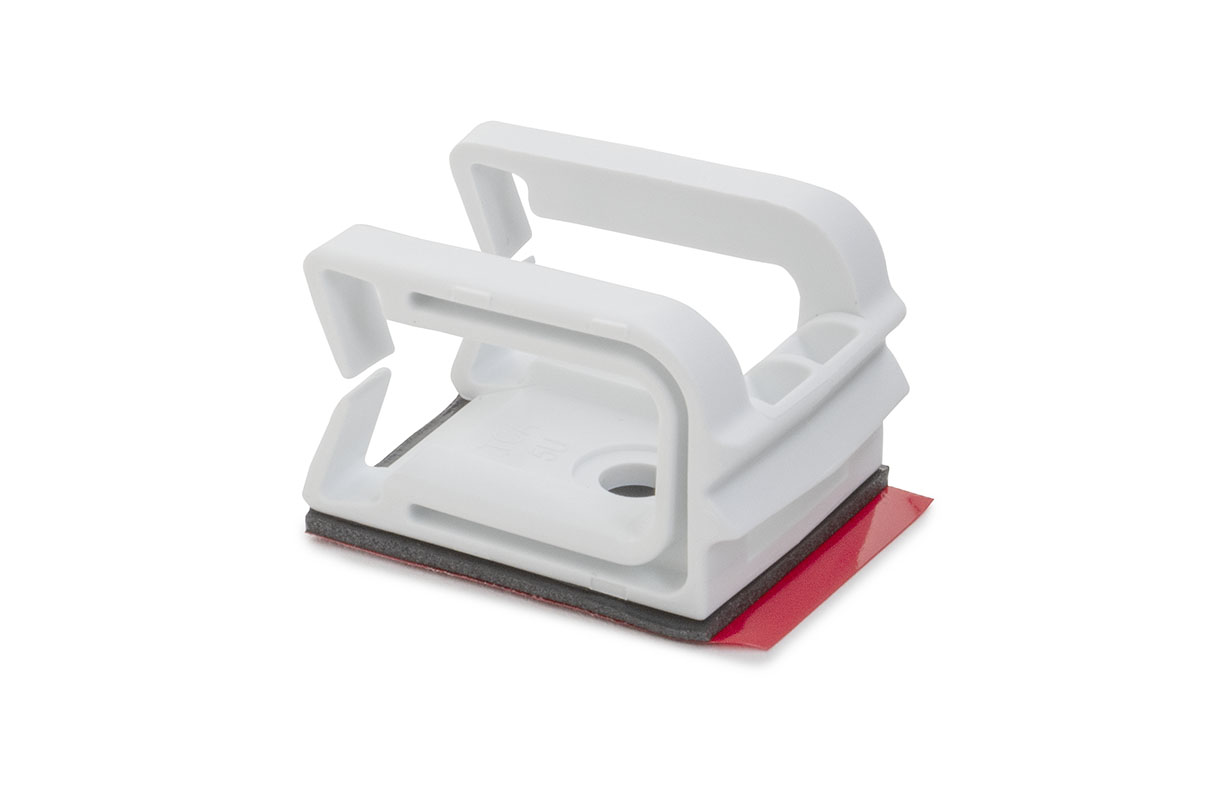

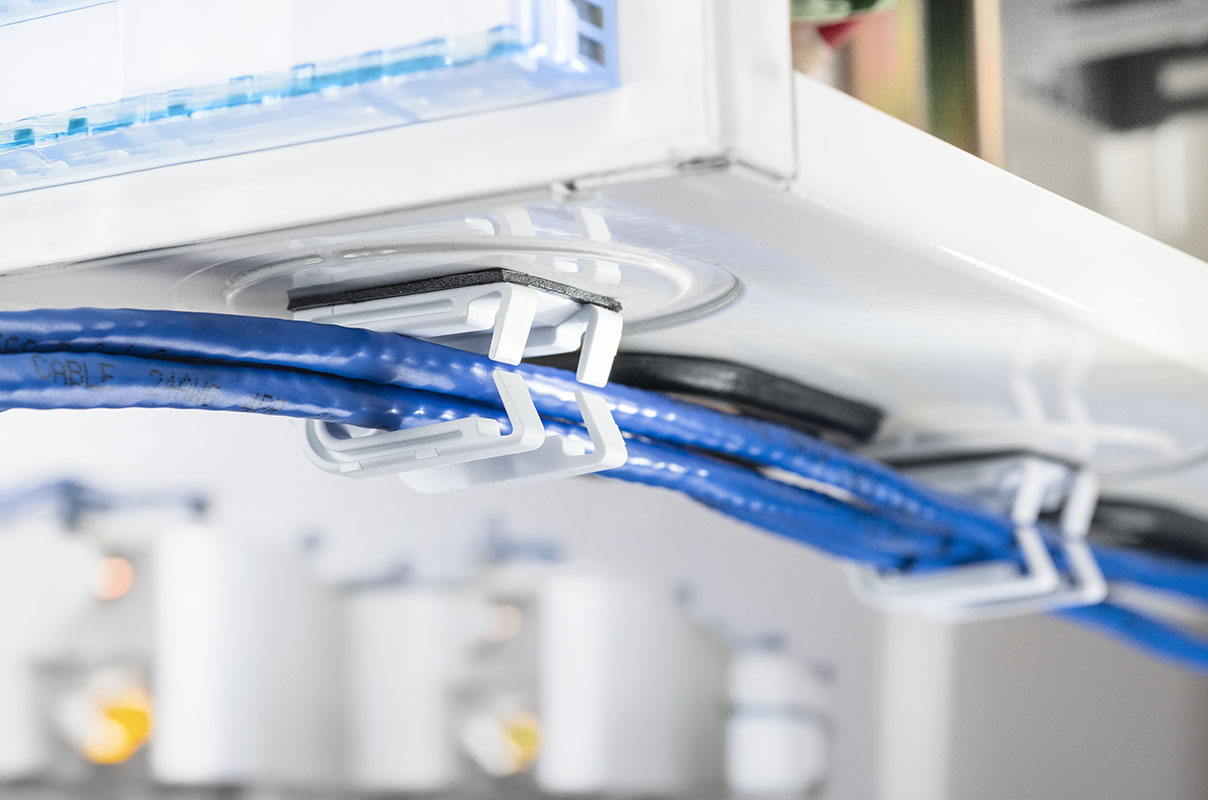

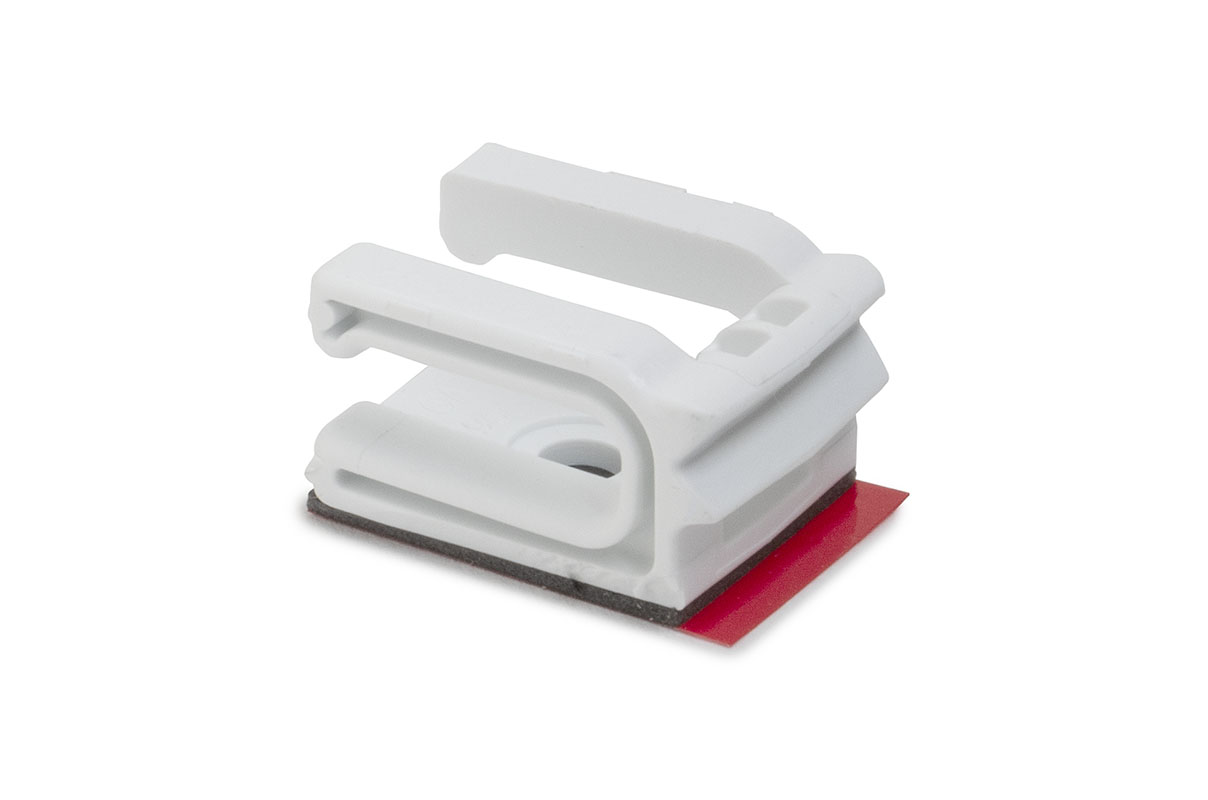

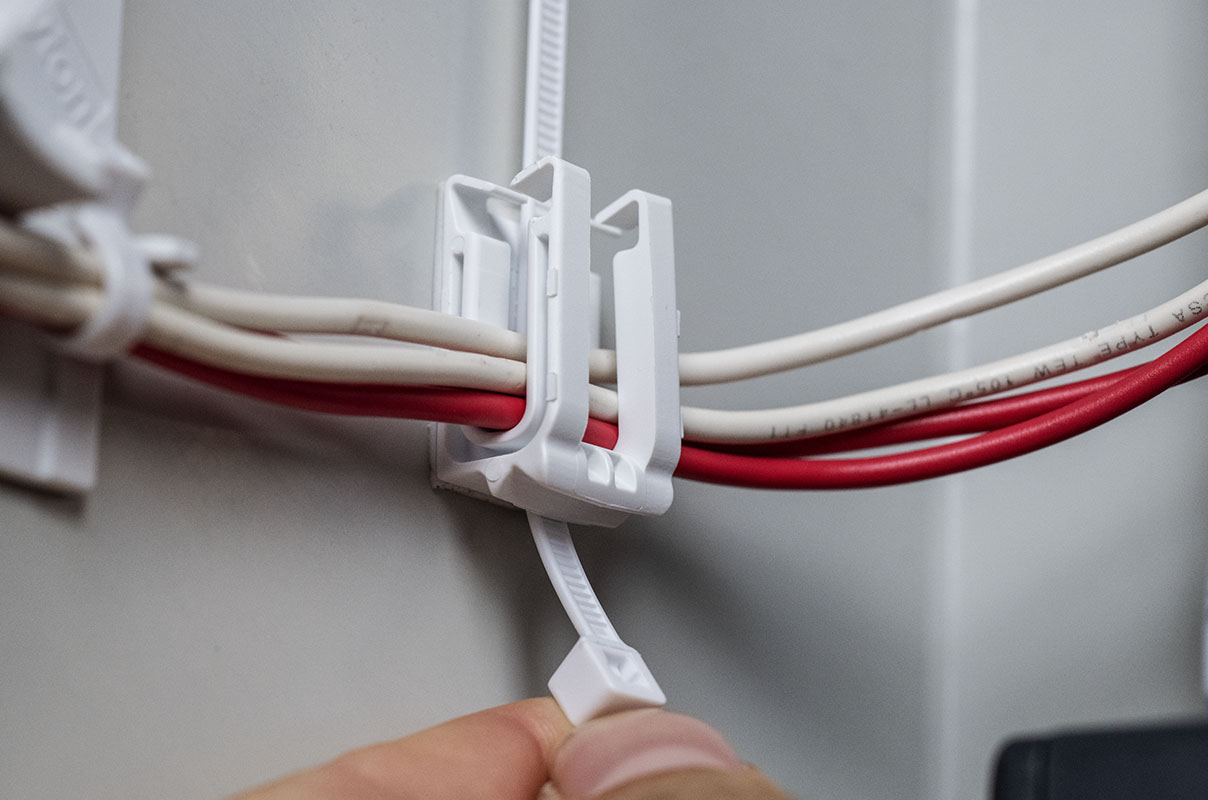

Cradle Mount: Adhesive

Cradle holds wires along routing path while staging, allowing adjustments until ready to make permanent. Optional “Retention Arms” version needs no cable tie to retain cables.
Built-in CutZone safety feature prevents damage to wires and cables.
Unique EZ Feed slot maintains clear space to insert cable ties.
Acrylic adhesive provides superior strength and longevity.

Documents

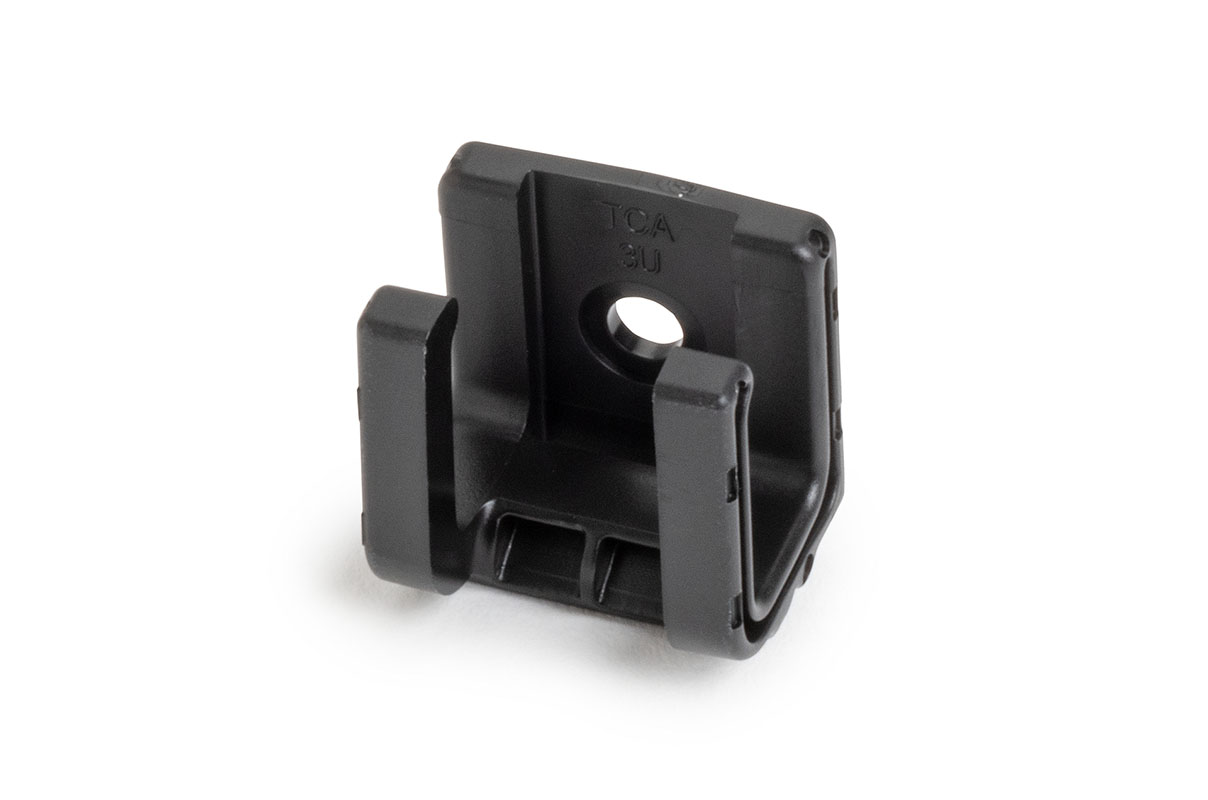

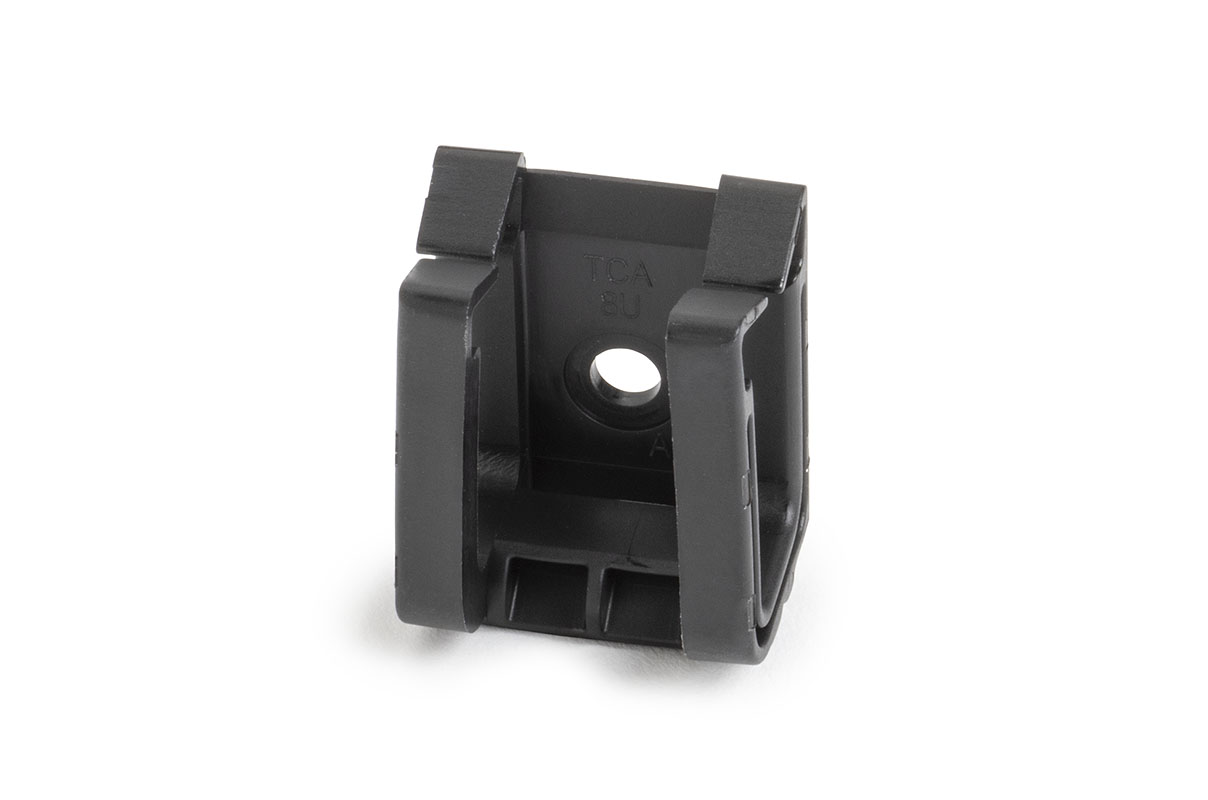

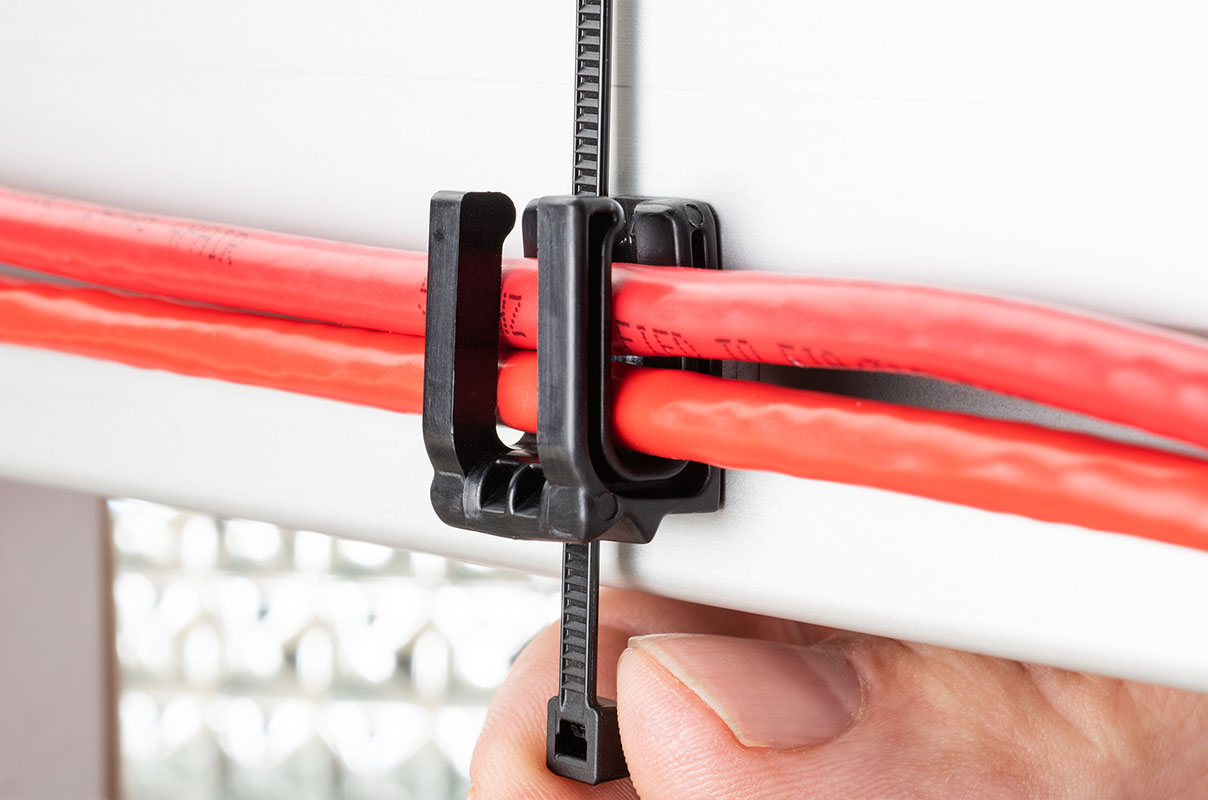

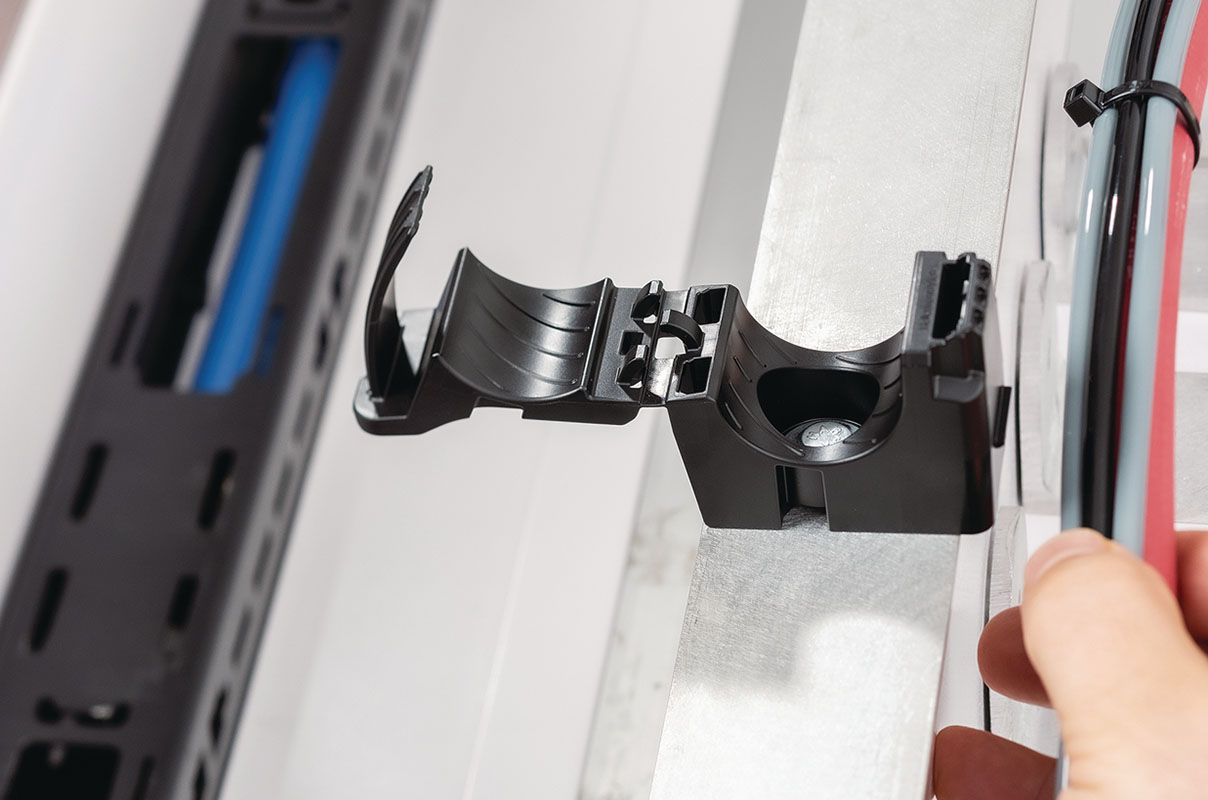

Cradle Mount: Screw

Cradle holds wires along routing path while staging, allowing adjustments until ready to make permanent. Optional “Retention Arms” version needs no cable tie to retain cables.
Built-in CutZone safety feature prevents damage to wires and cables.
Unique EZ Feed slot maintains clear space to insert cable ties.
Allows flexibility of frame size and mounting location with #8 (M4) screw into panel surface or with T-nut in frame.

Documents

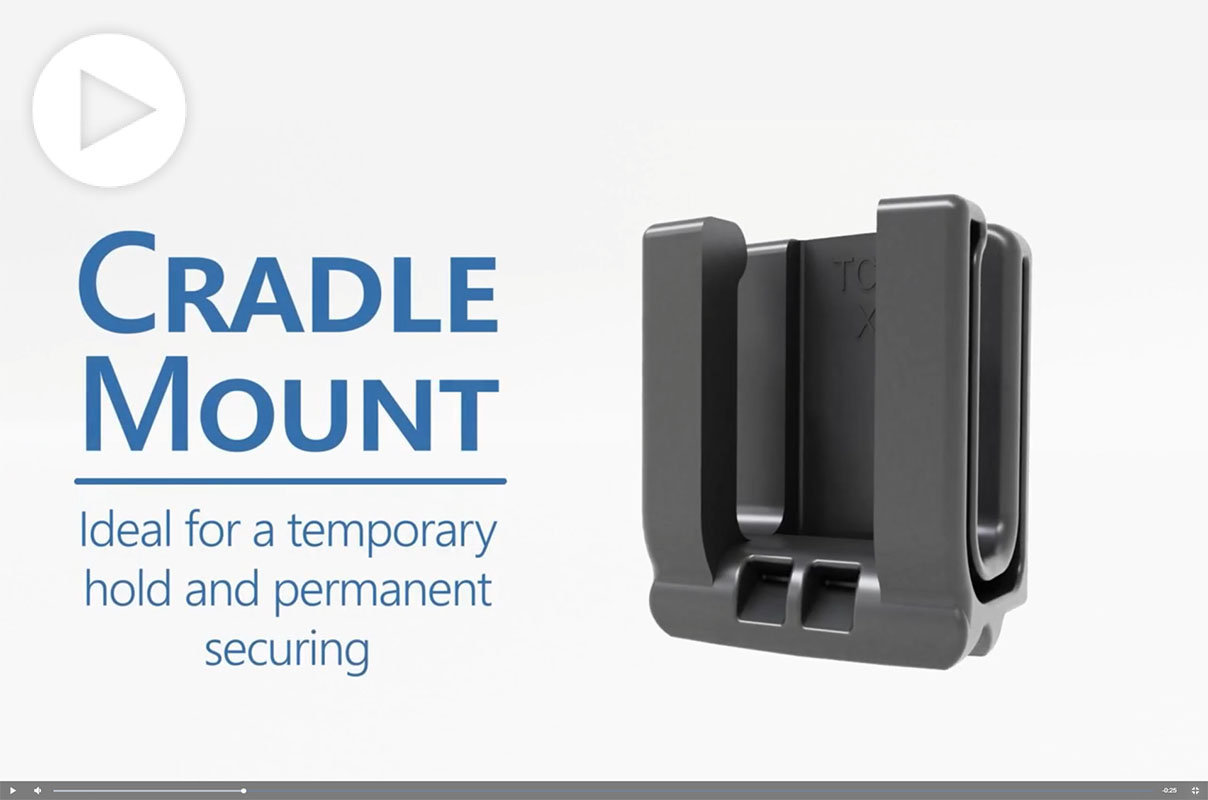

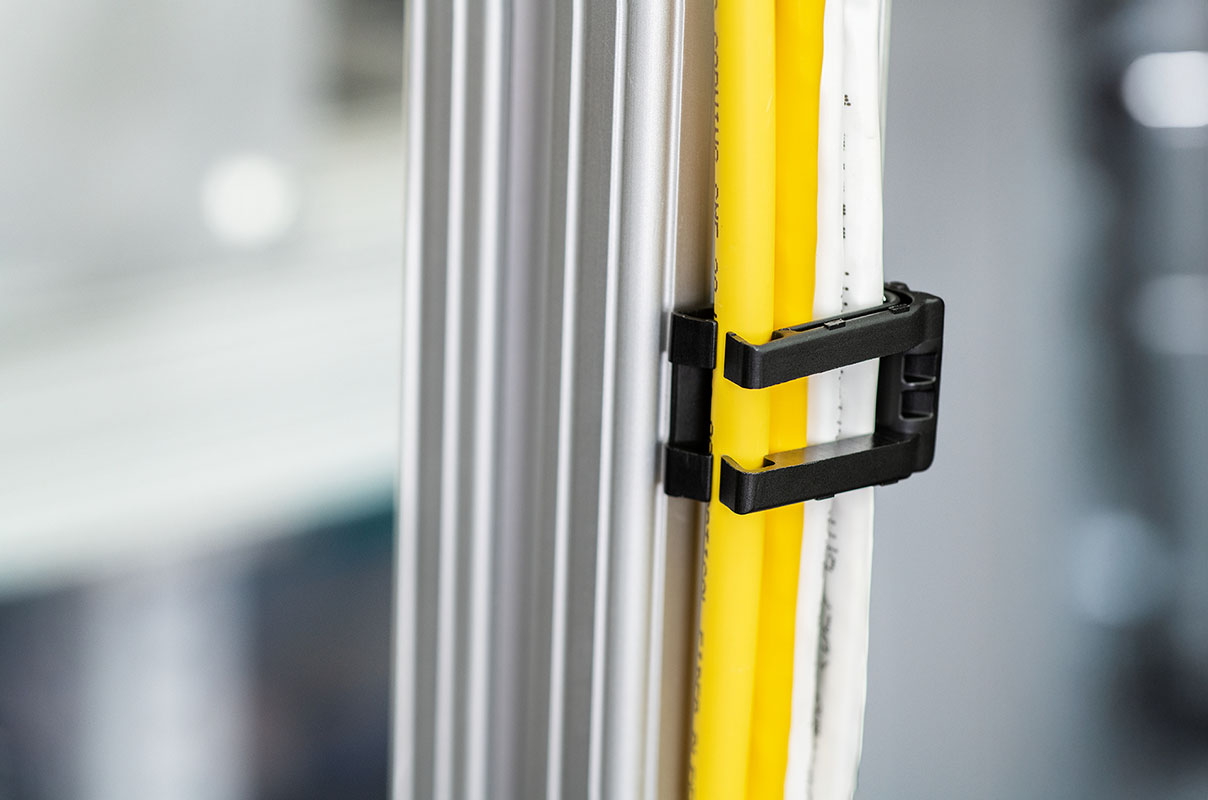

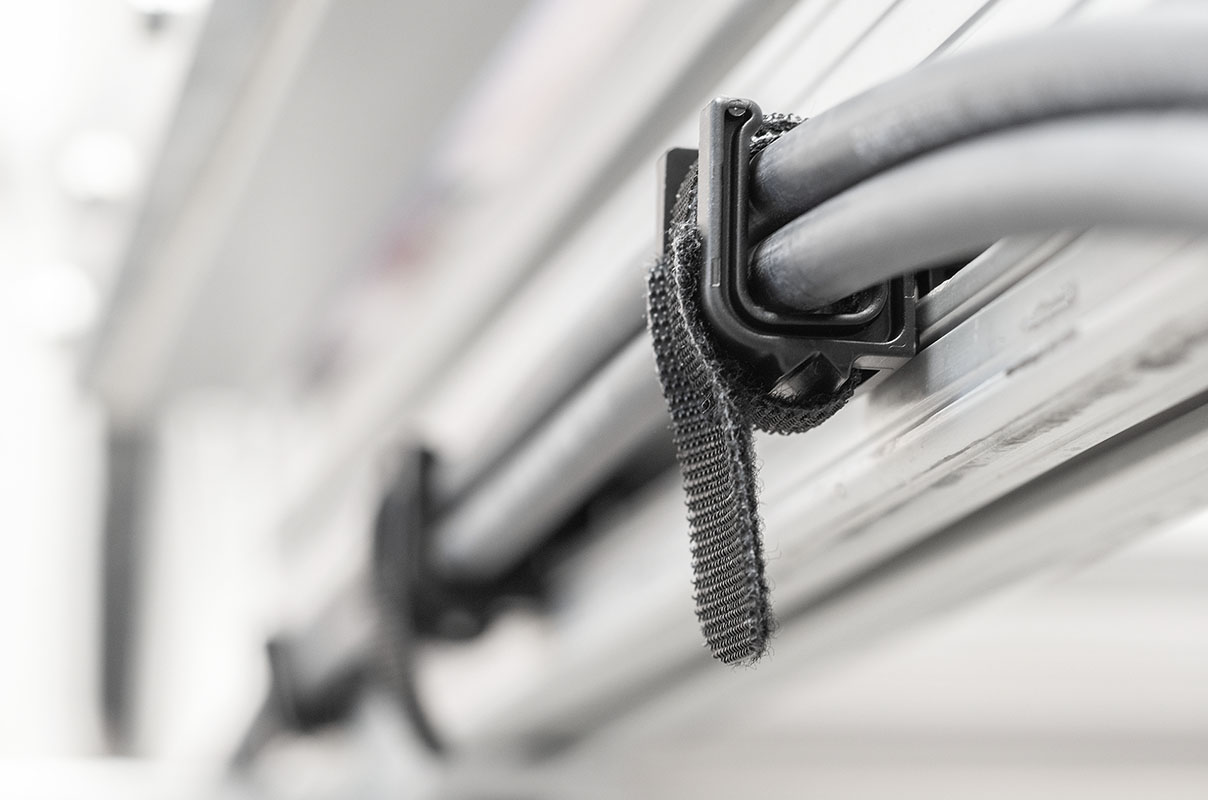

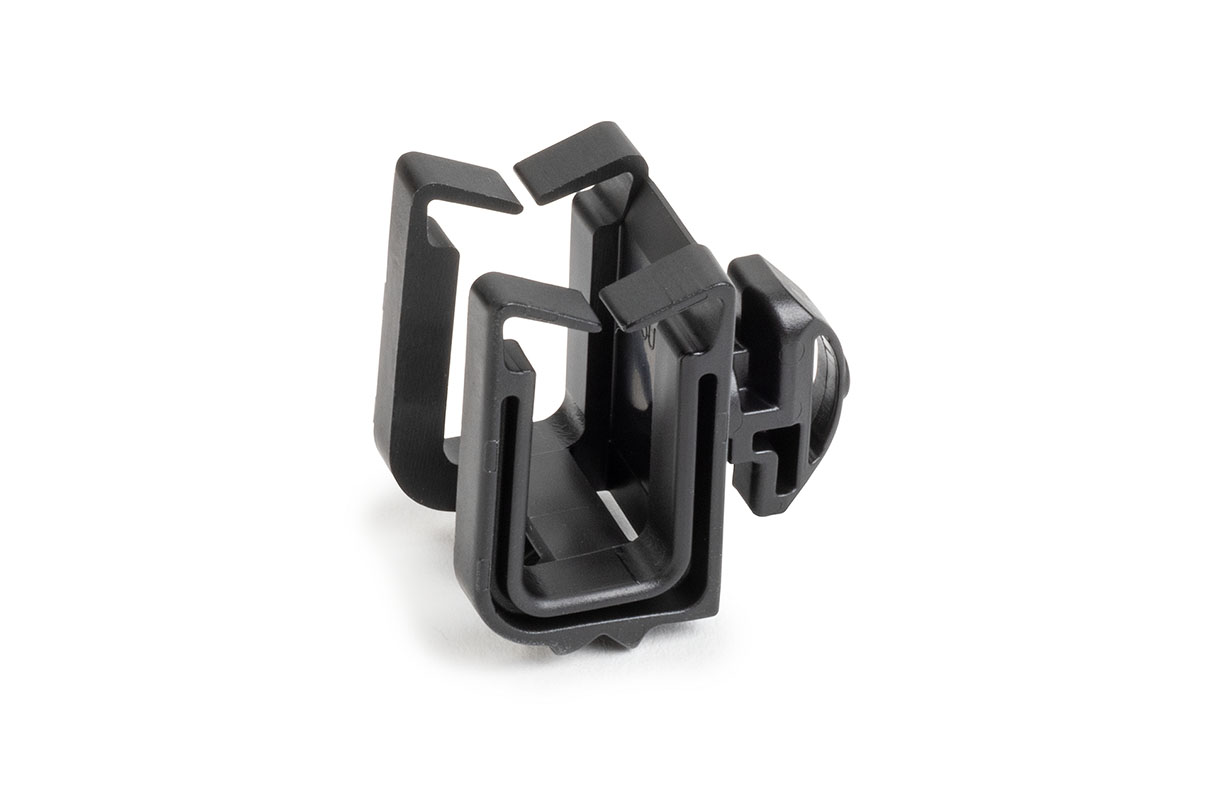

Cradle Mount: Twist

Cradle holds wires along routing path while staging, allowing adjustments until ready to make permanent. Optional “Retention Arms” version needs no cable tie to retain cables.
Built-in CutZone safety feature prevents damage to wires and cables.
Unique EZ Feed slot maintains clear space to insert cable ties.
Frame mount allows for simple quarter-turn mounting into 80/20, 40- or 15-Series aluminum frames.

Documents

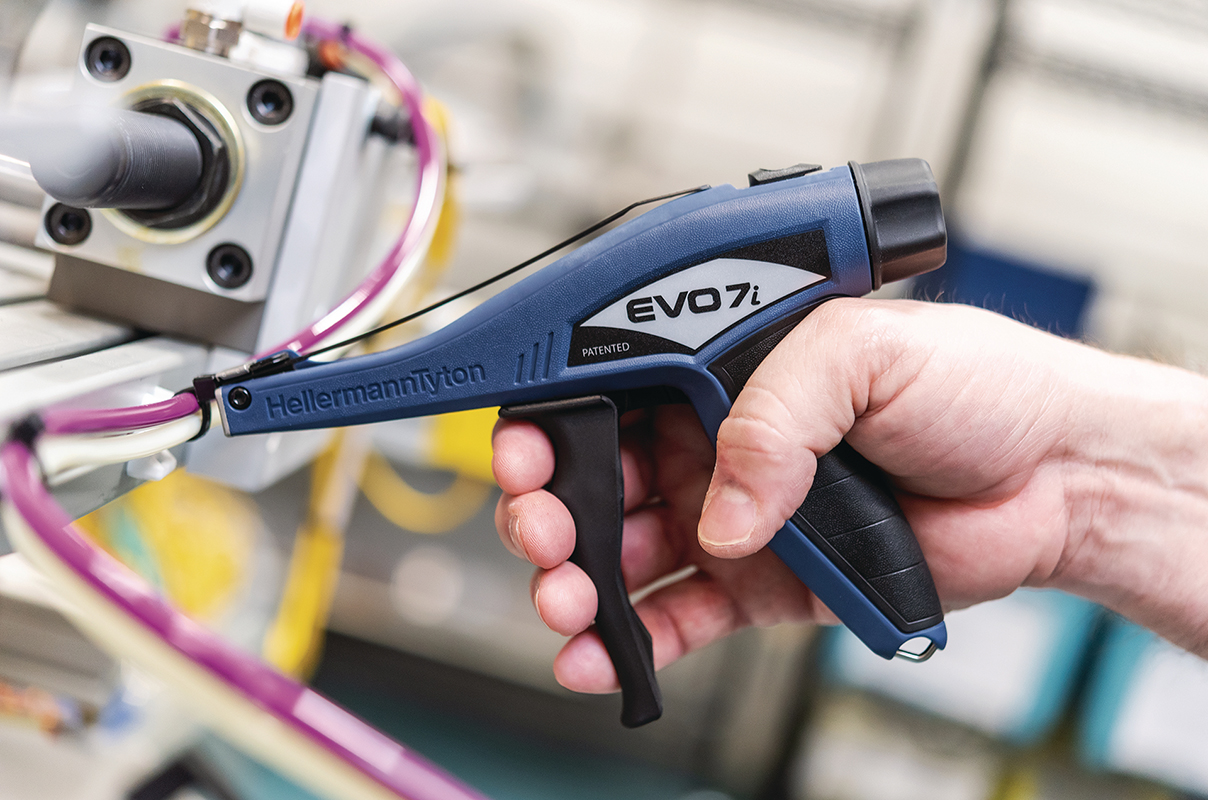

EVO 7i

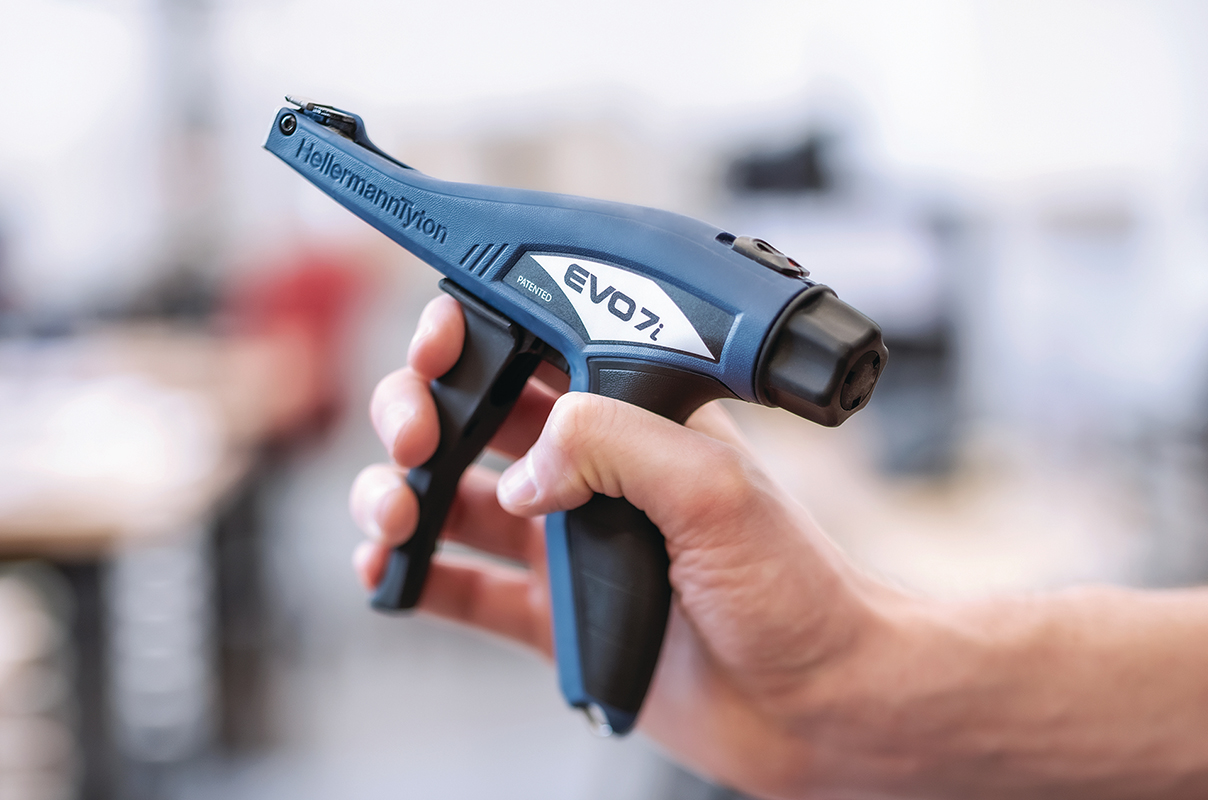

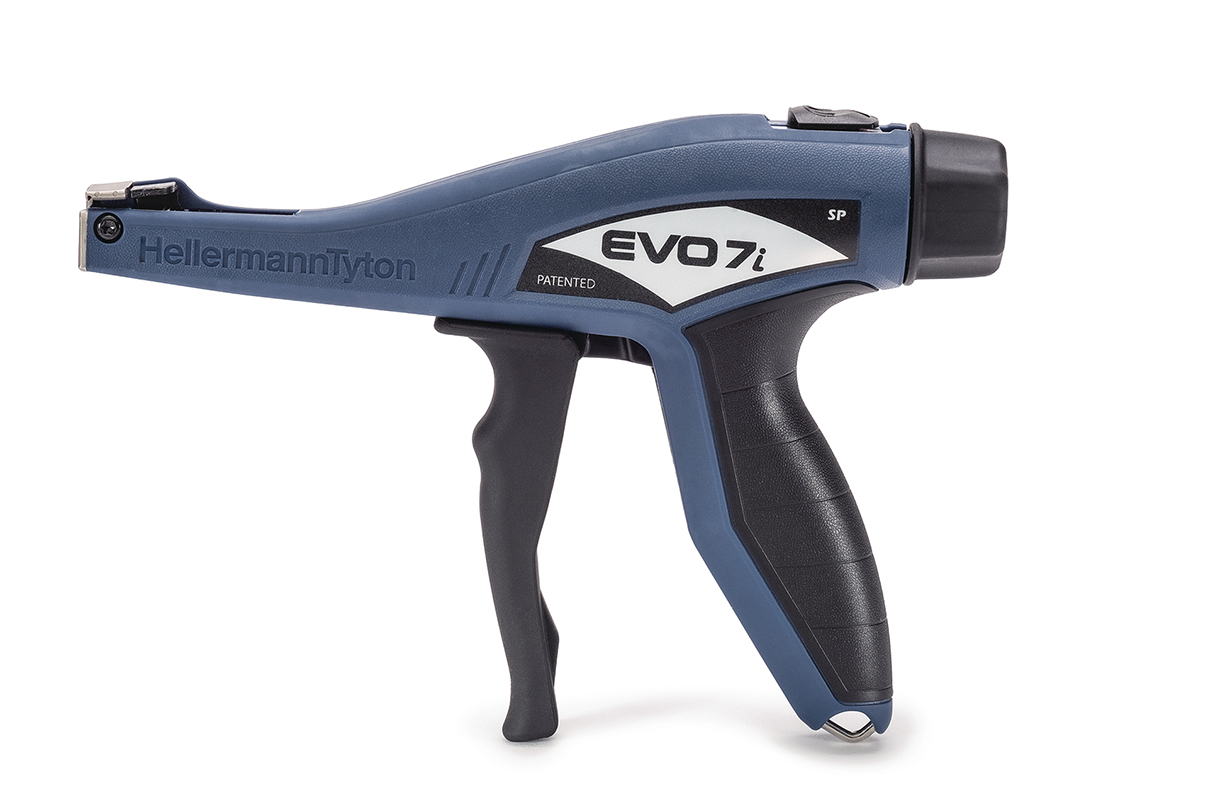

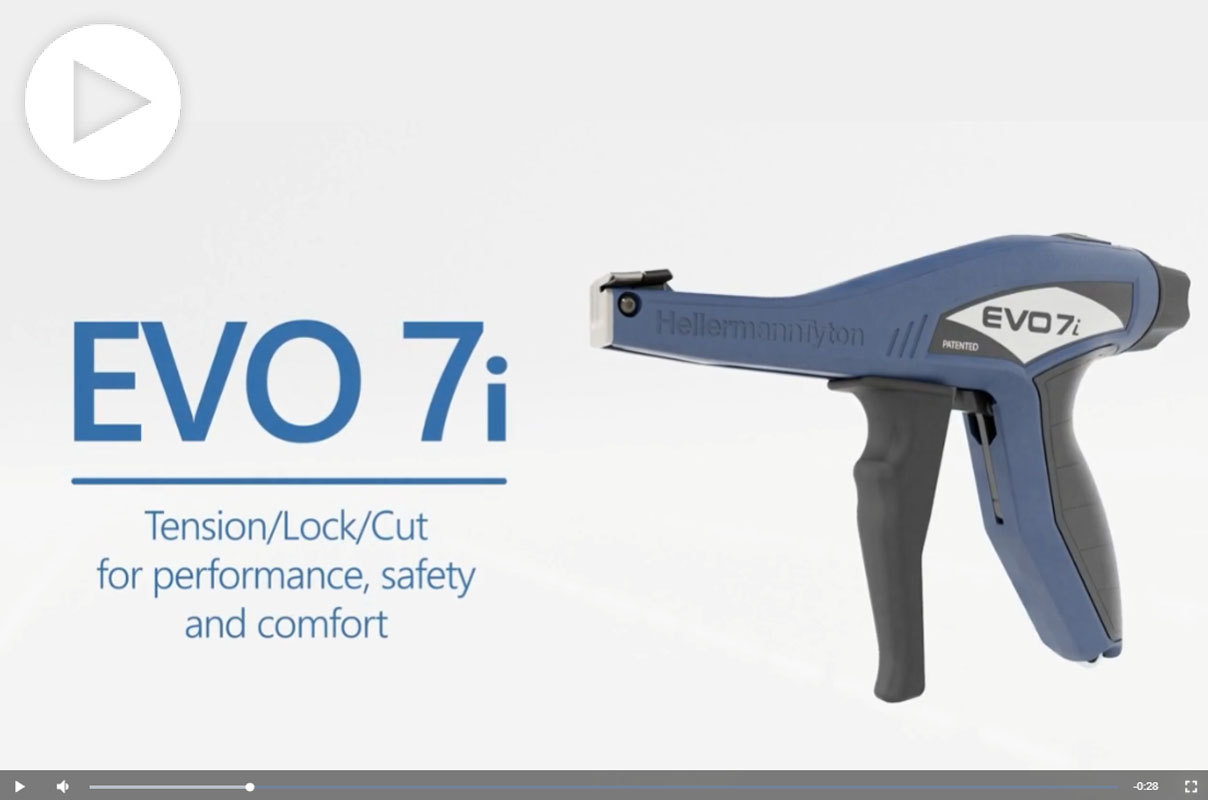

EVO 7i

Cuts ties from 18 to 80 lb with a clean, flush cut for personnel safety and wire insulation integrity.
Quality construction with impact-resistant housing, tested at over 1 million cycles, provides high durability resulting in fewer repairs and an extended product life.
Lightweight tool with the most technologically advanced ergonomic design for reducing work-related risks such as fatigue and injury that affect productivity.
Tension dial offers 33 precise, easy-to-read settings that reduce subjectivity or the need for fine tuning.
Tension lock-in mechanism prevents operator from changing tension setting during critical applications.

Documents

Stacker

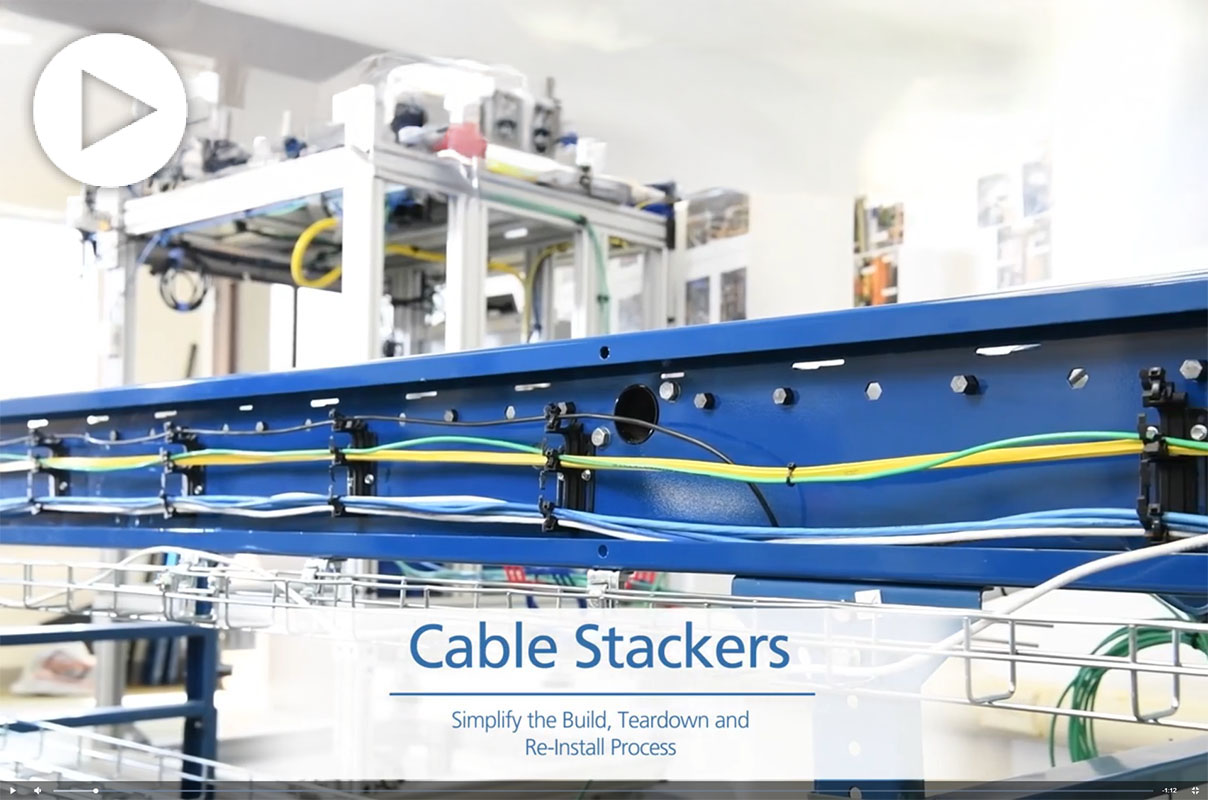

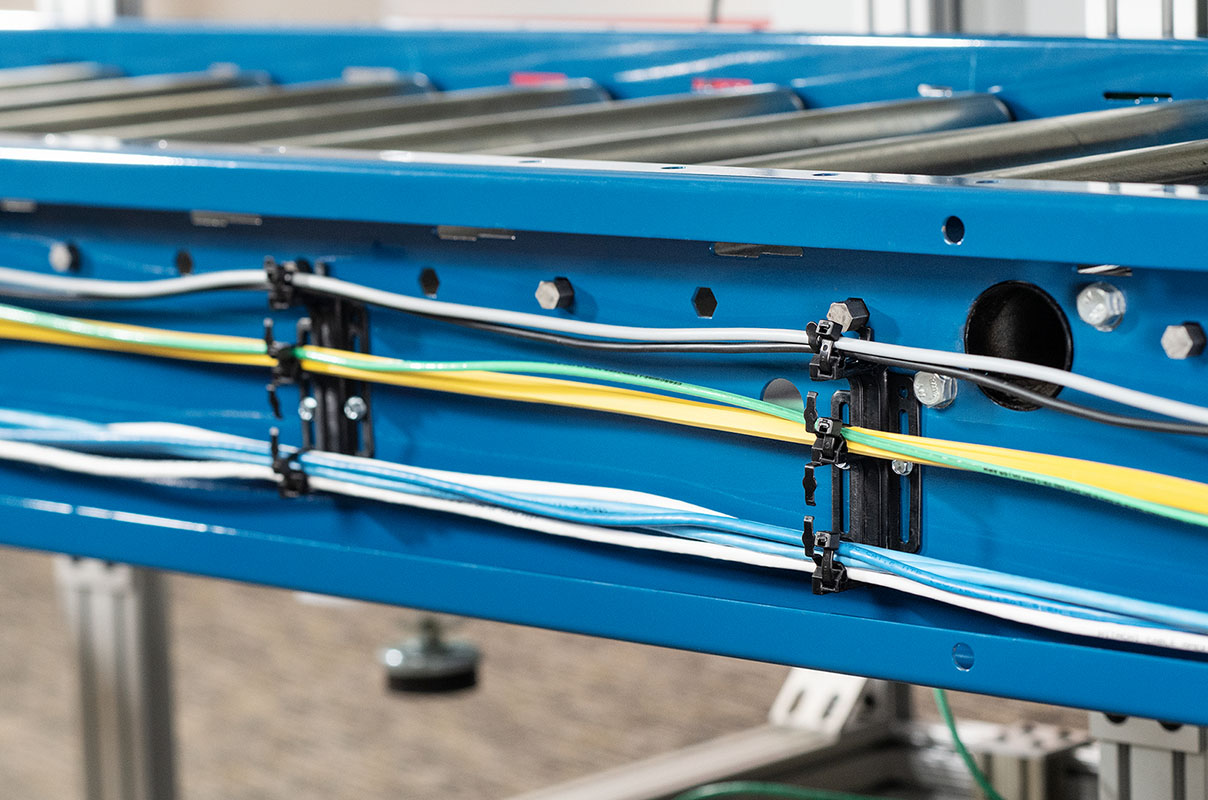

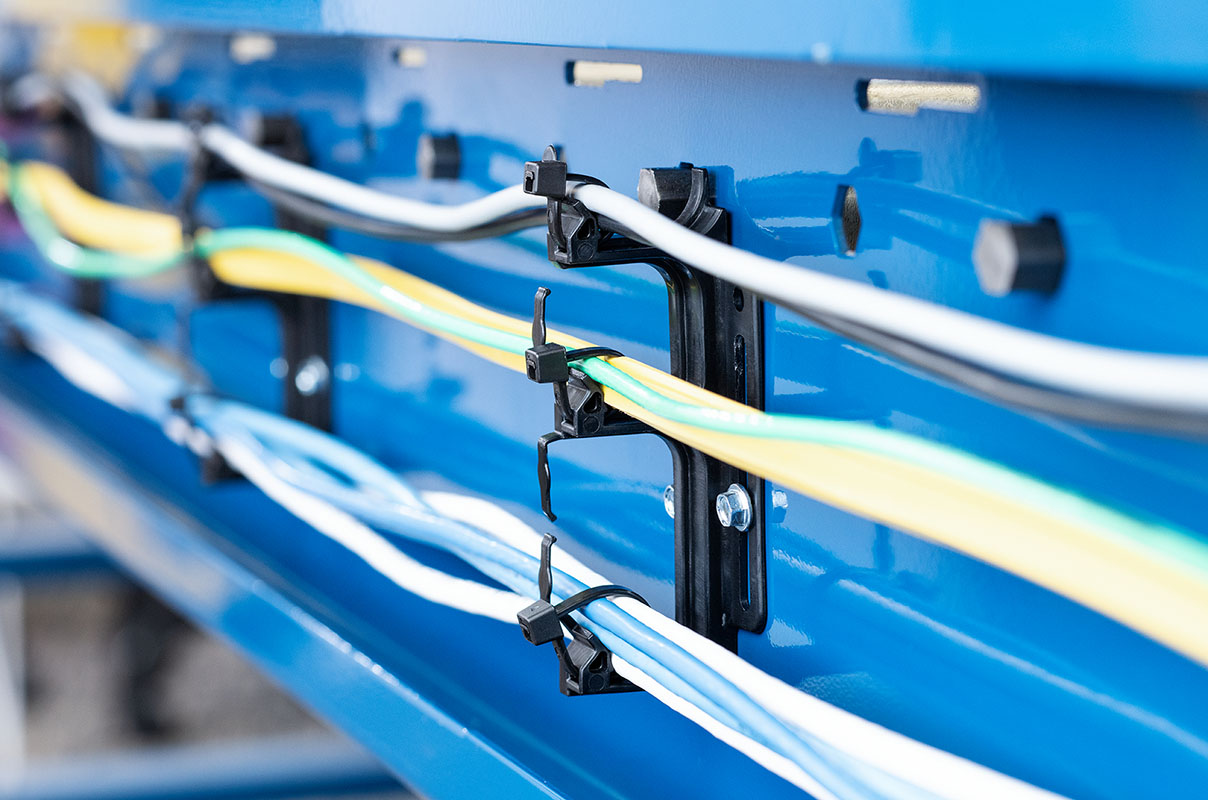

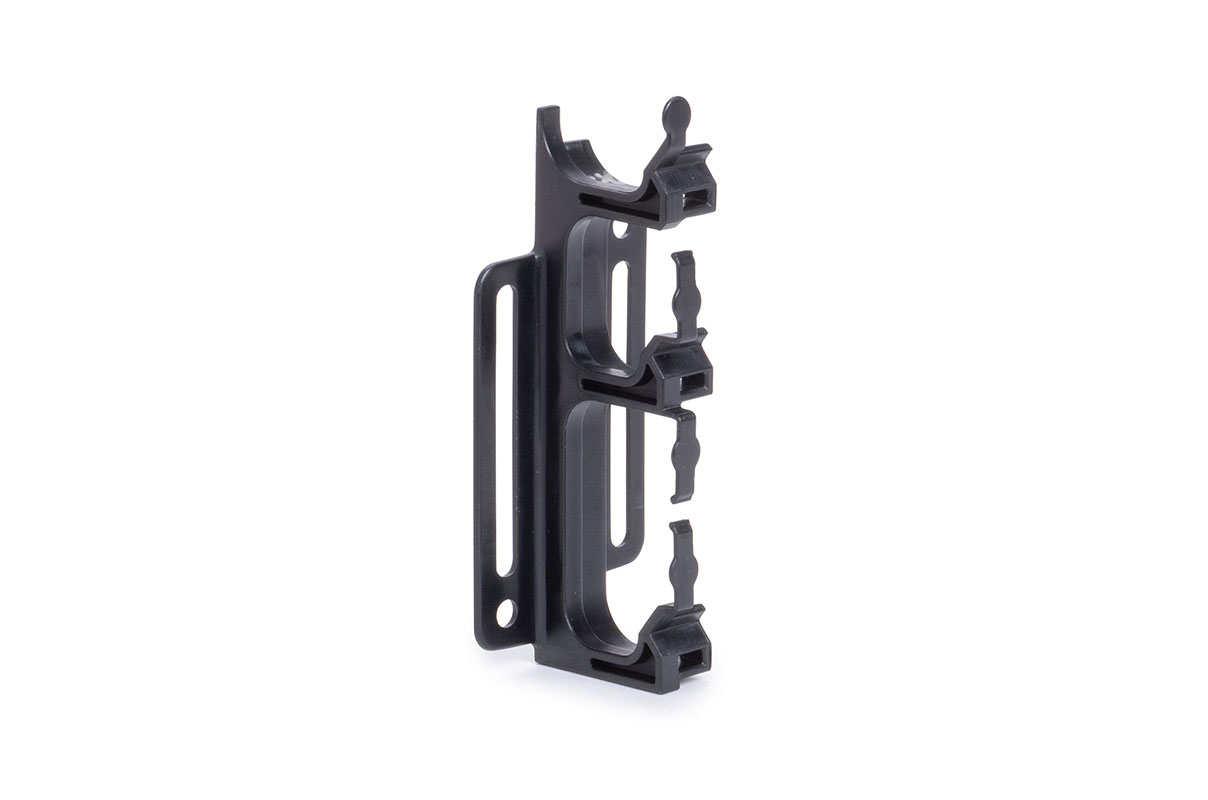

Cable Stacker

Multiple cradle pockets separate power and signal runs.
EZ-in / EZ-out retention pins retain wires during build out and allow future access to add or remove wires.
EZ Feed cable tie groove bypasses obstructive cable runs for quickly cinching down bundles if needed.
CutZone creates guide for safely removing cable tie.
Quick mount options using M6 (#10) screws in holes or slots for easy positioning and adjustability.

Documents

Saddle Mount

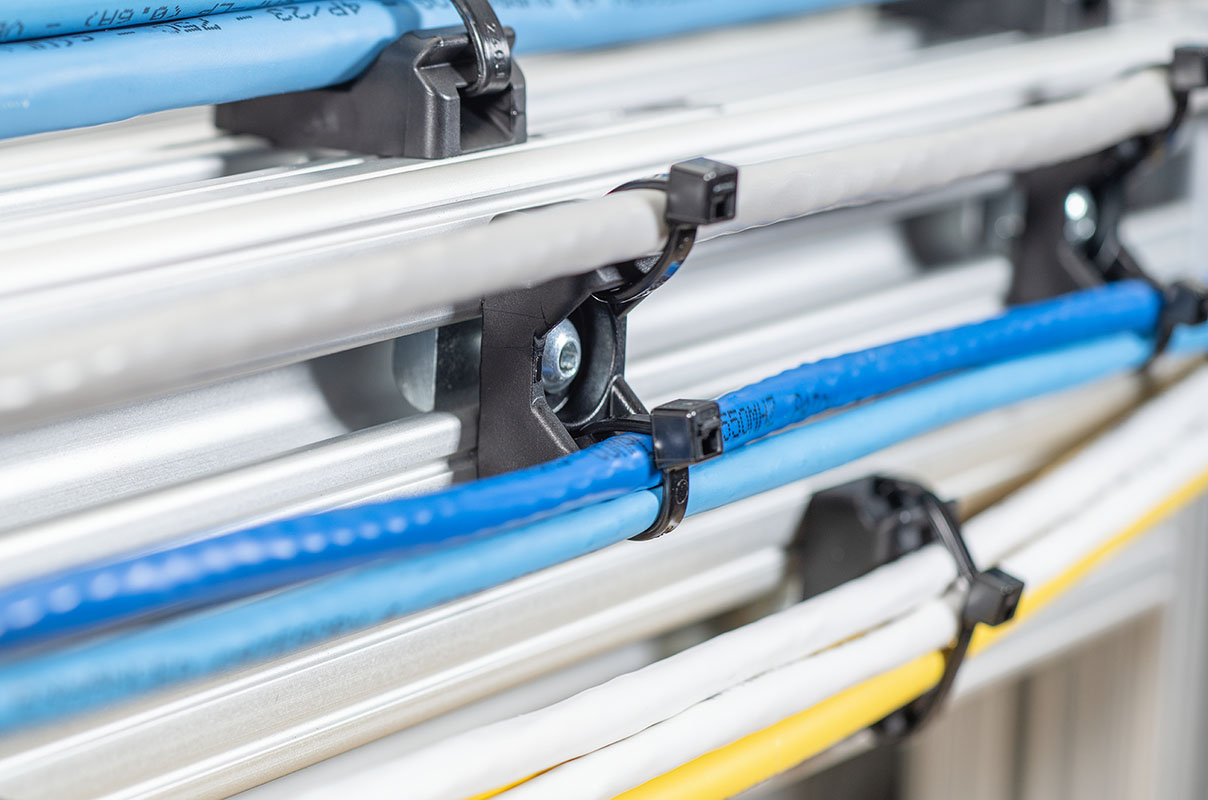

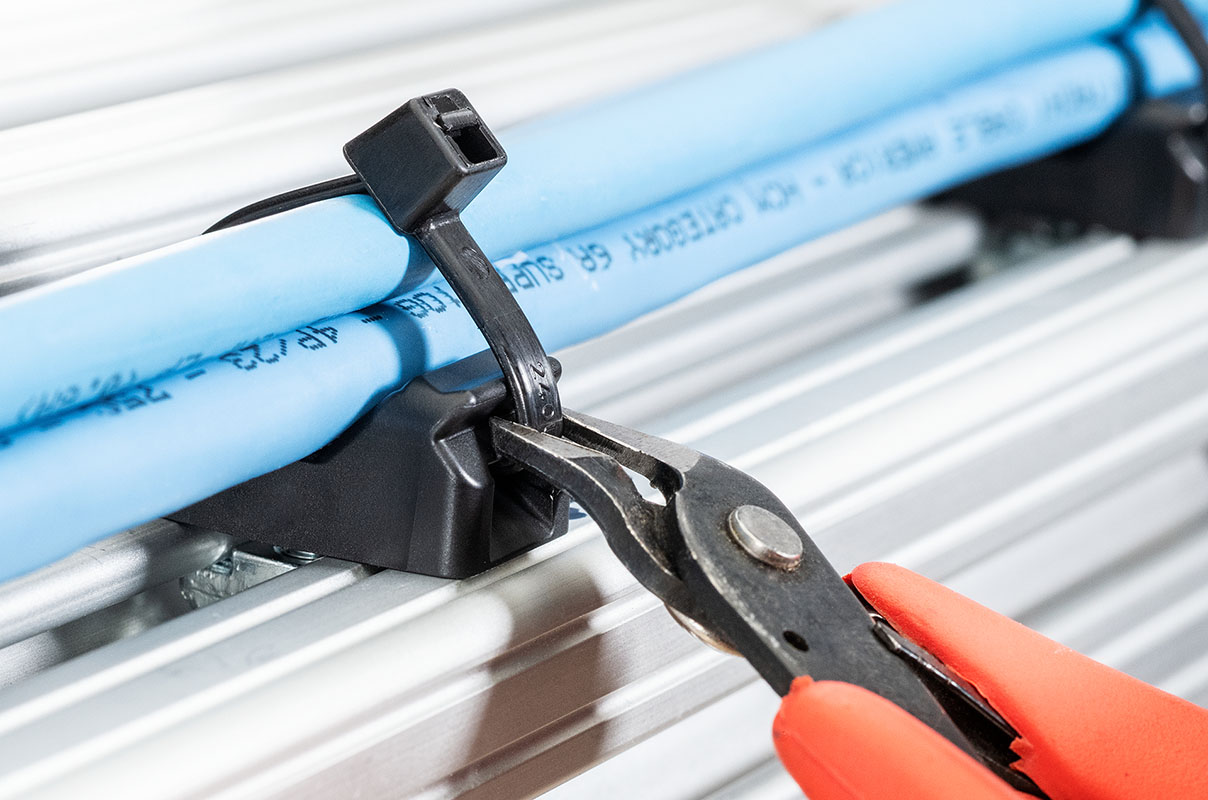

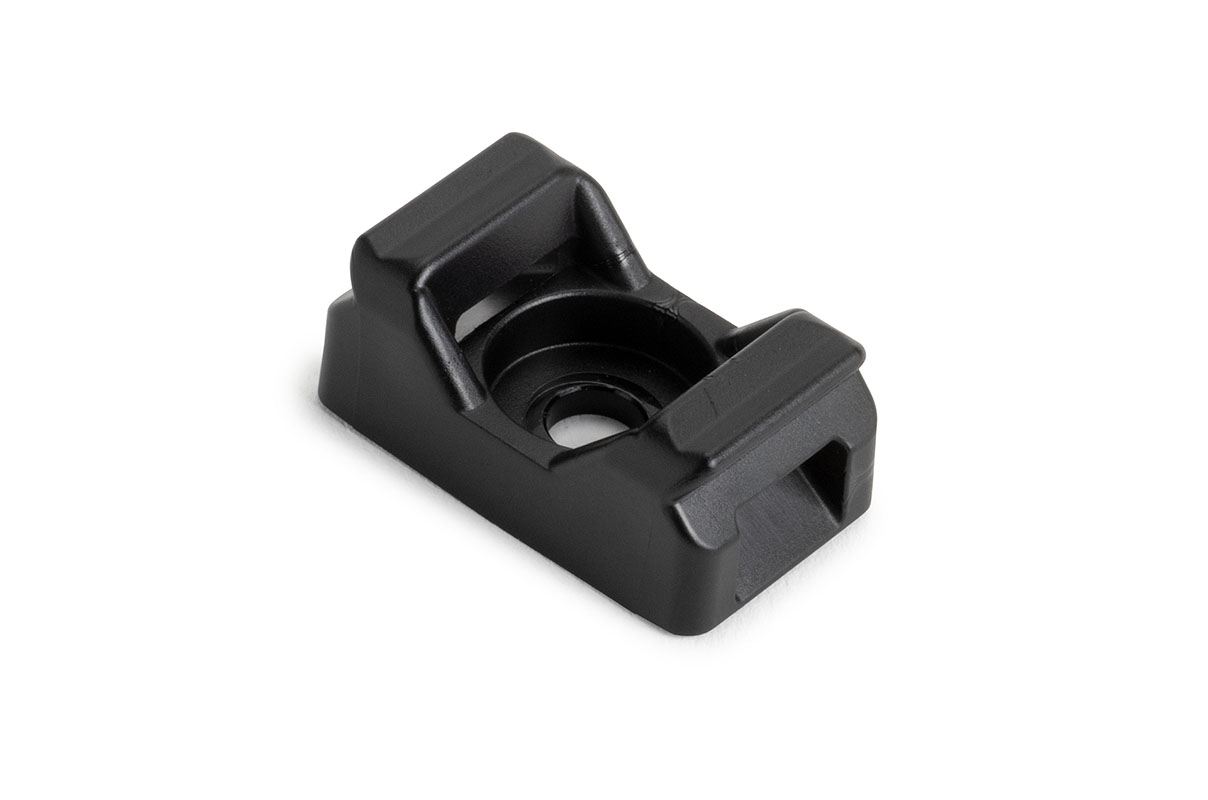

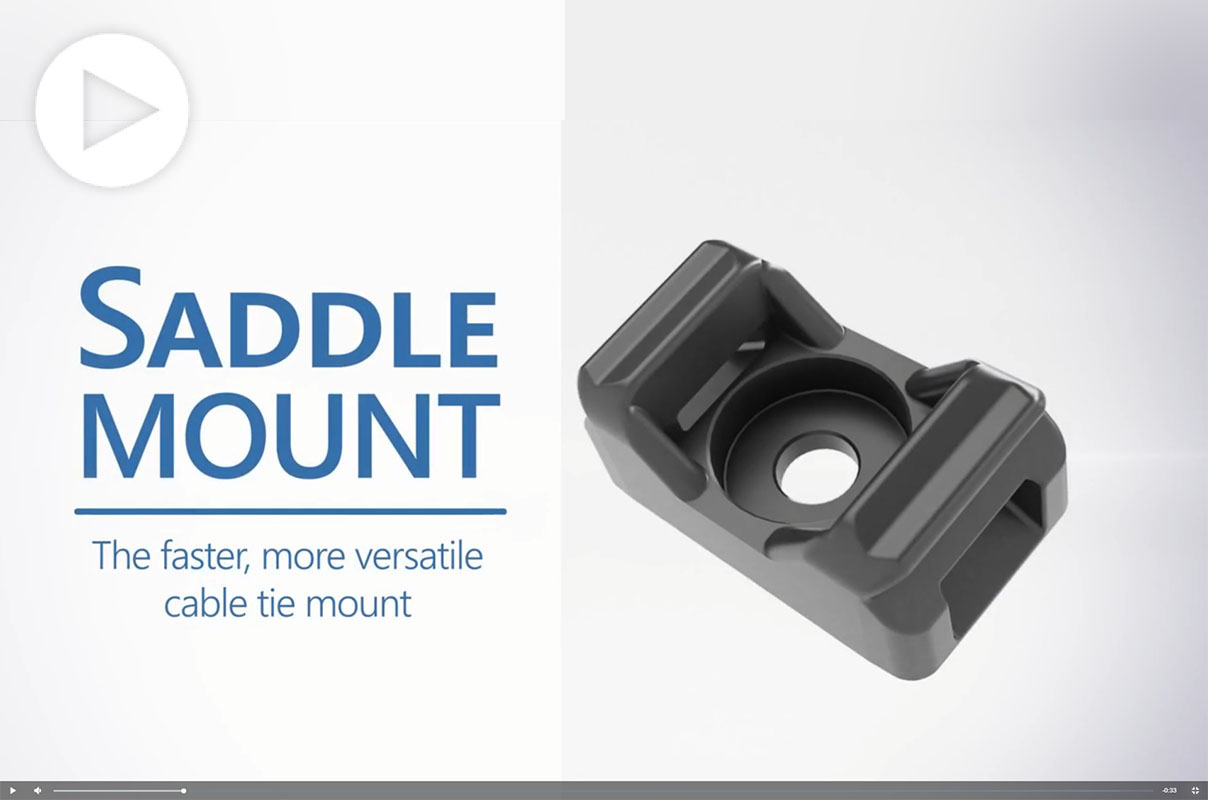

Saddle Mount

Mount single or dual separated routings with a single part.
Screw mount allows flexibility of panel or frame attachment (with optional T-nut).
Exclusive EZ Feed and CutZone features simplify insertion and safe removal of cable ties.

Documents

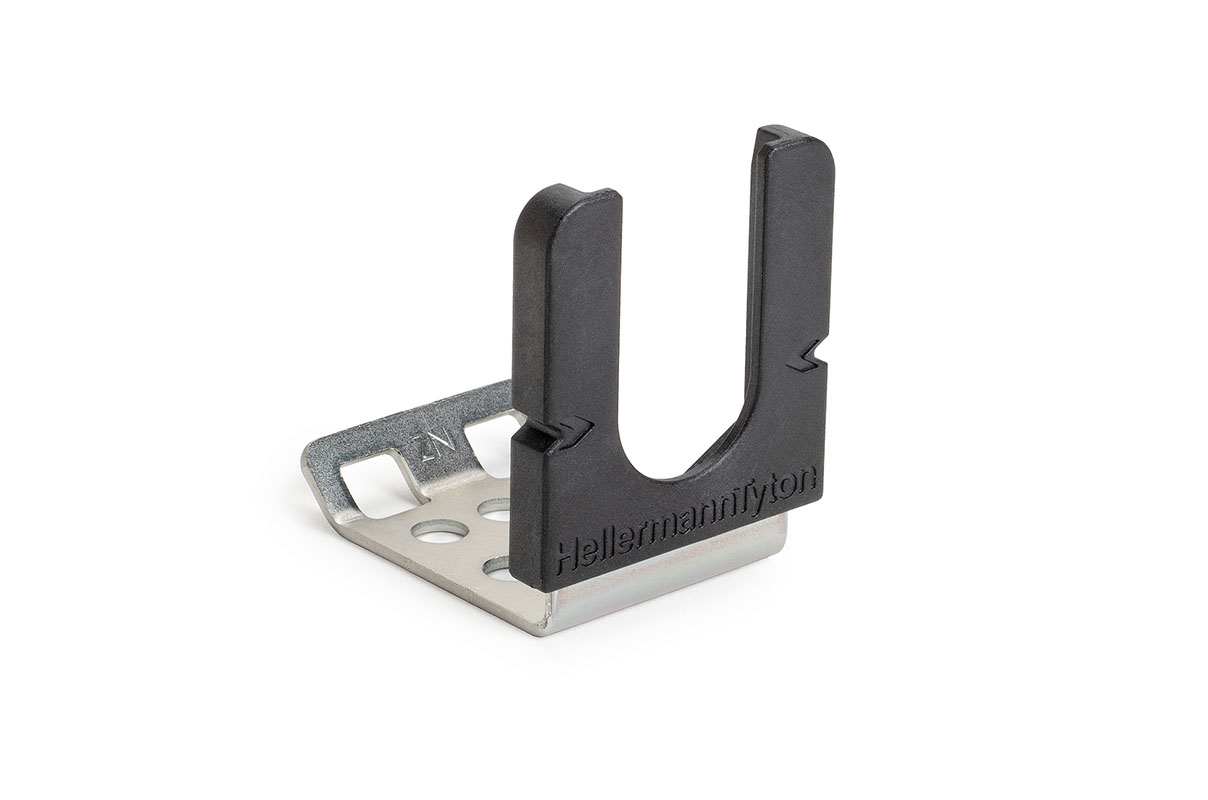

Sensor Mount

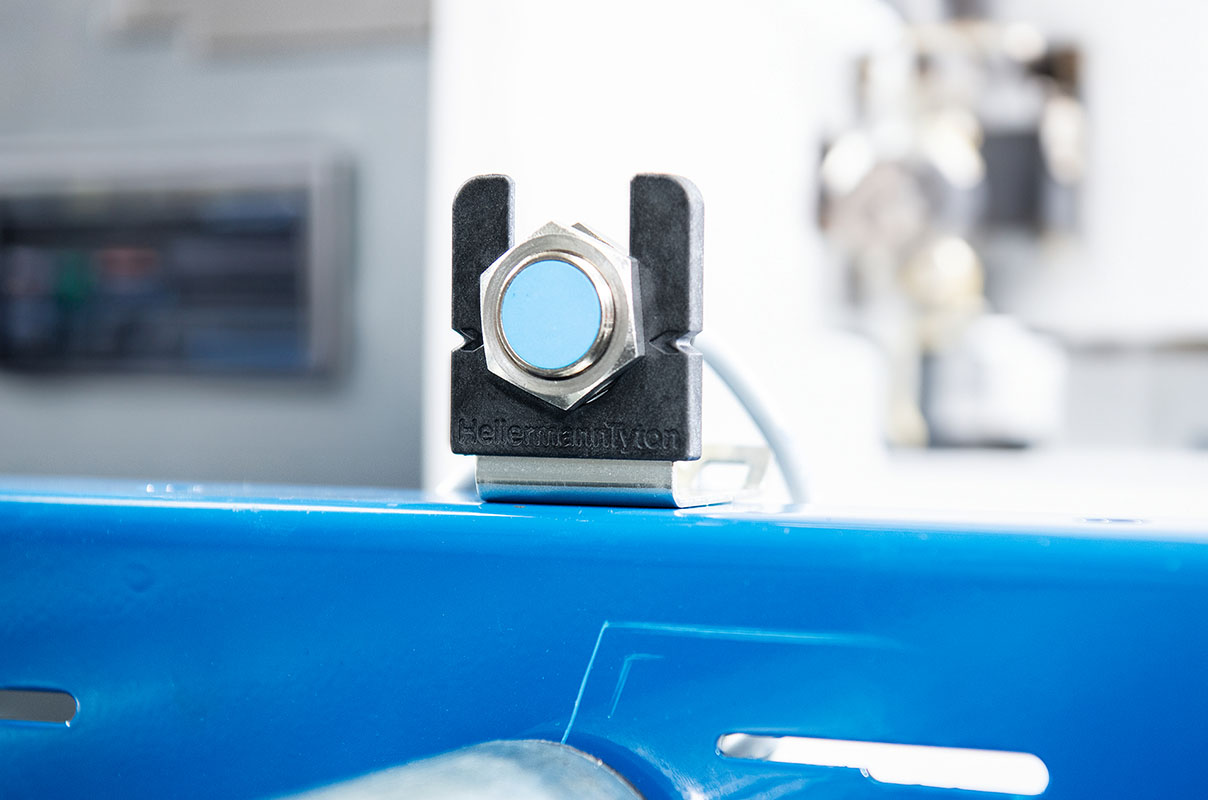

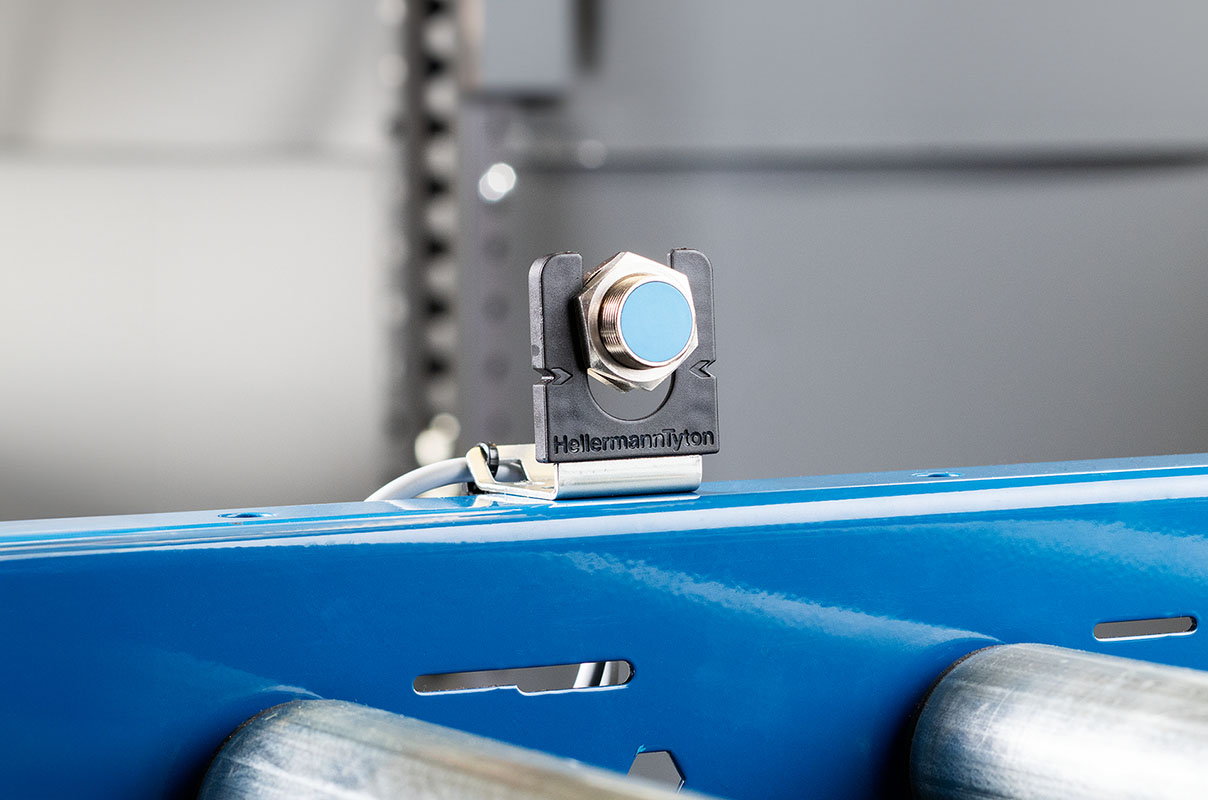

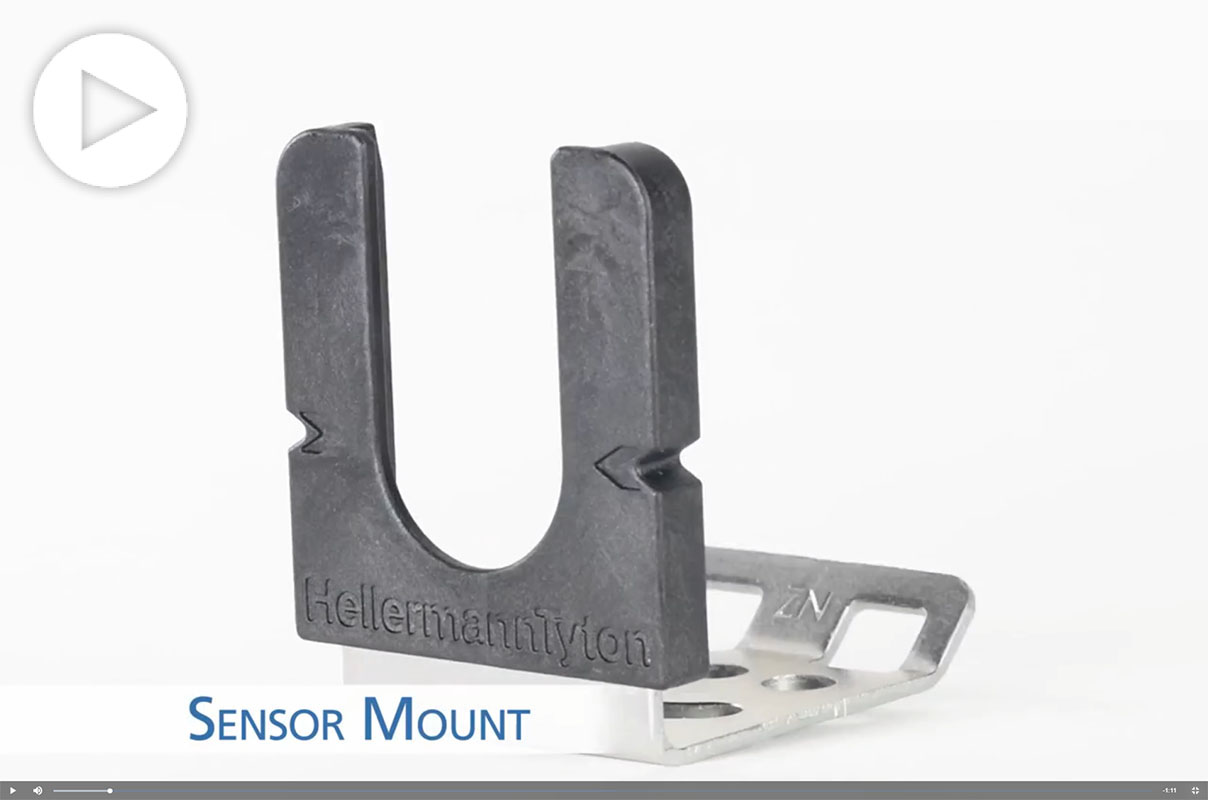

Sensor Mount

Vertical slotted pocket design allows easier assembly and adjustability.
Integrated retaining gap allows for single-tool tightening.
Locating grooves create a visual reference point for easier sensor alignment.
Multiple mounting slot positions for quick assembly and cable tie mount to manage excess cable loops.

Documents

Pre-Printed Labels

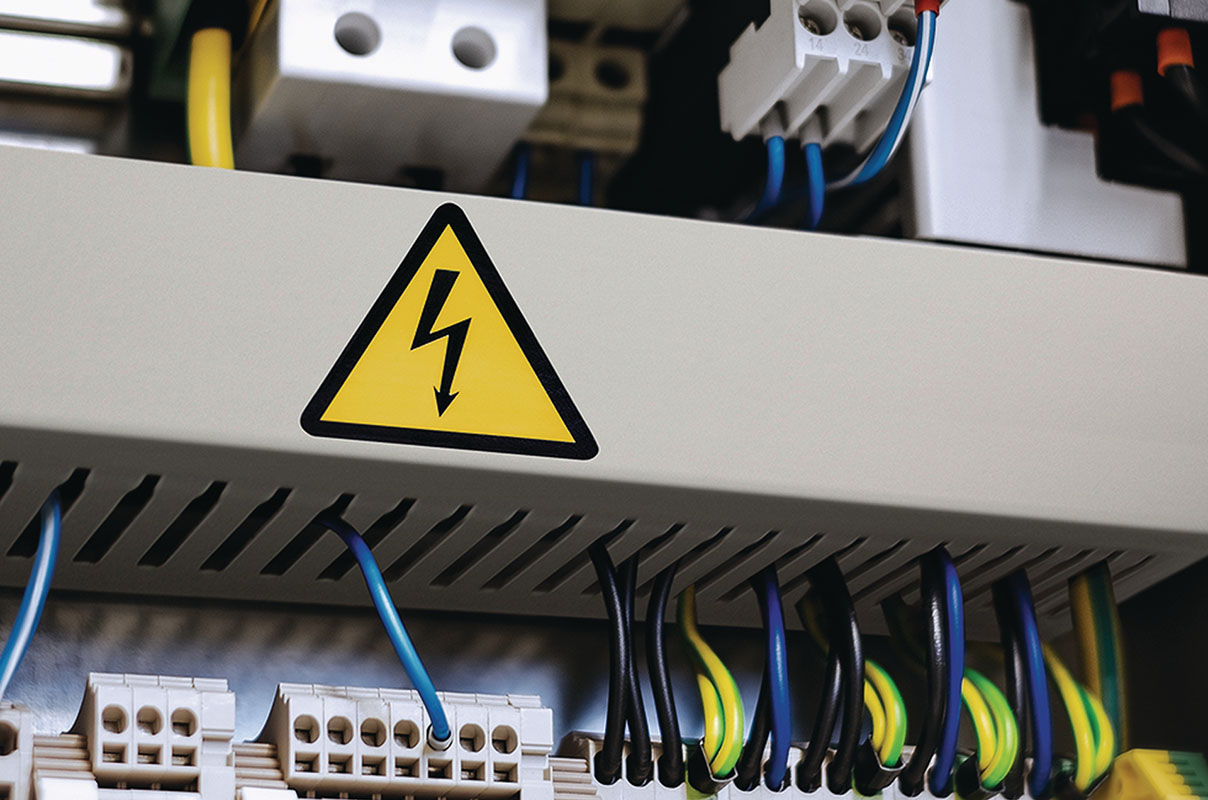

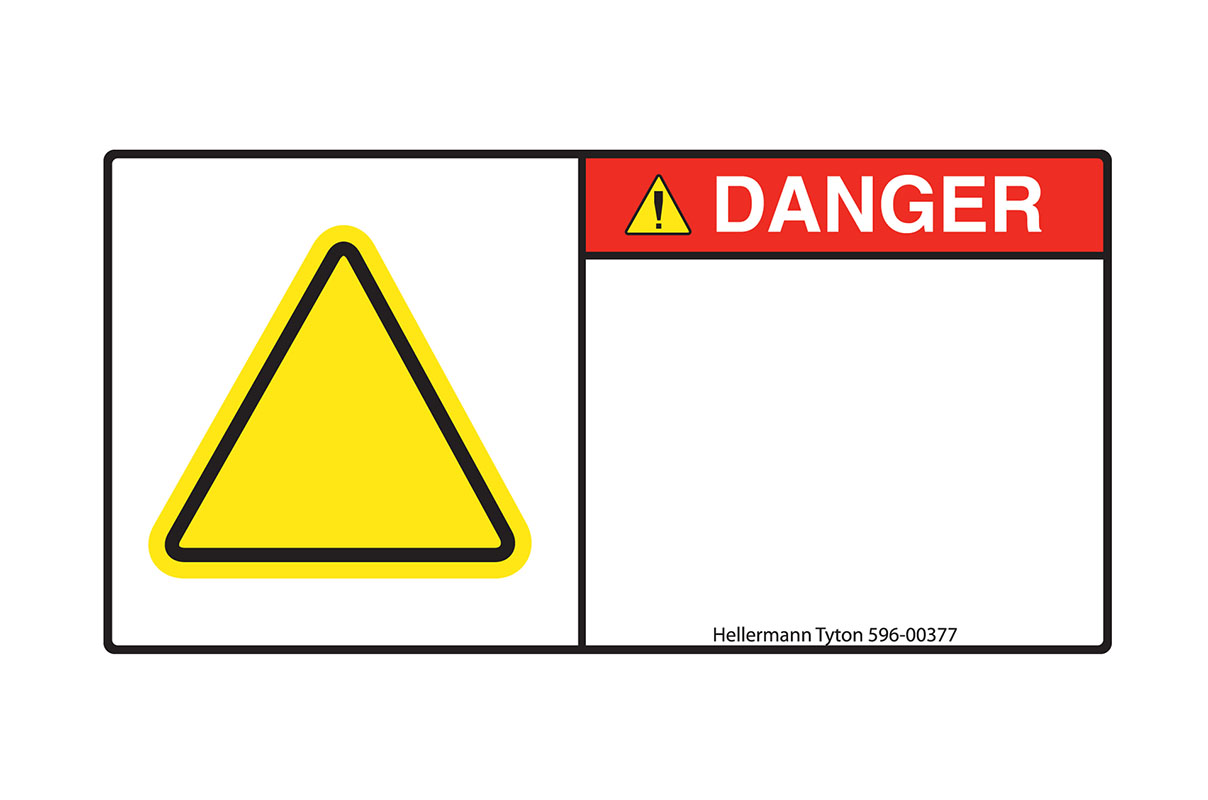

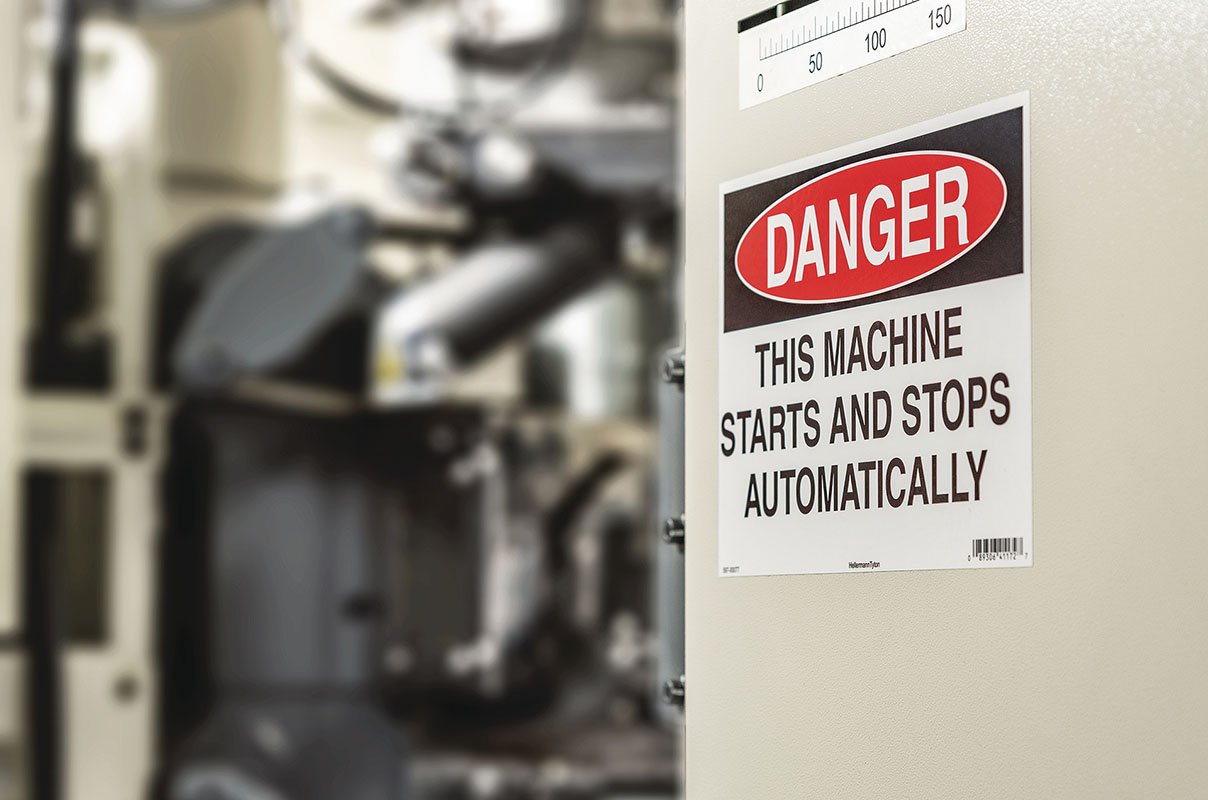

Pre-Printed Header Label

Pre-printed header labels come with the primary warning pre-printed in colors so only a one-color ribbon is needed to complete the message panel.
Labels meet the most recent ANSI standards so code compliance is assured.
Print using standard thermal transfer printers to reduce labor, eliminate minimum orders and create labels on-demand when needed.

Documents

Clips

Cable Tie Mount

Bridle Ring

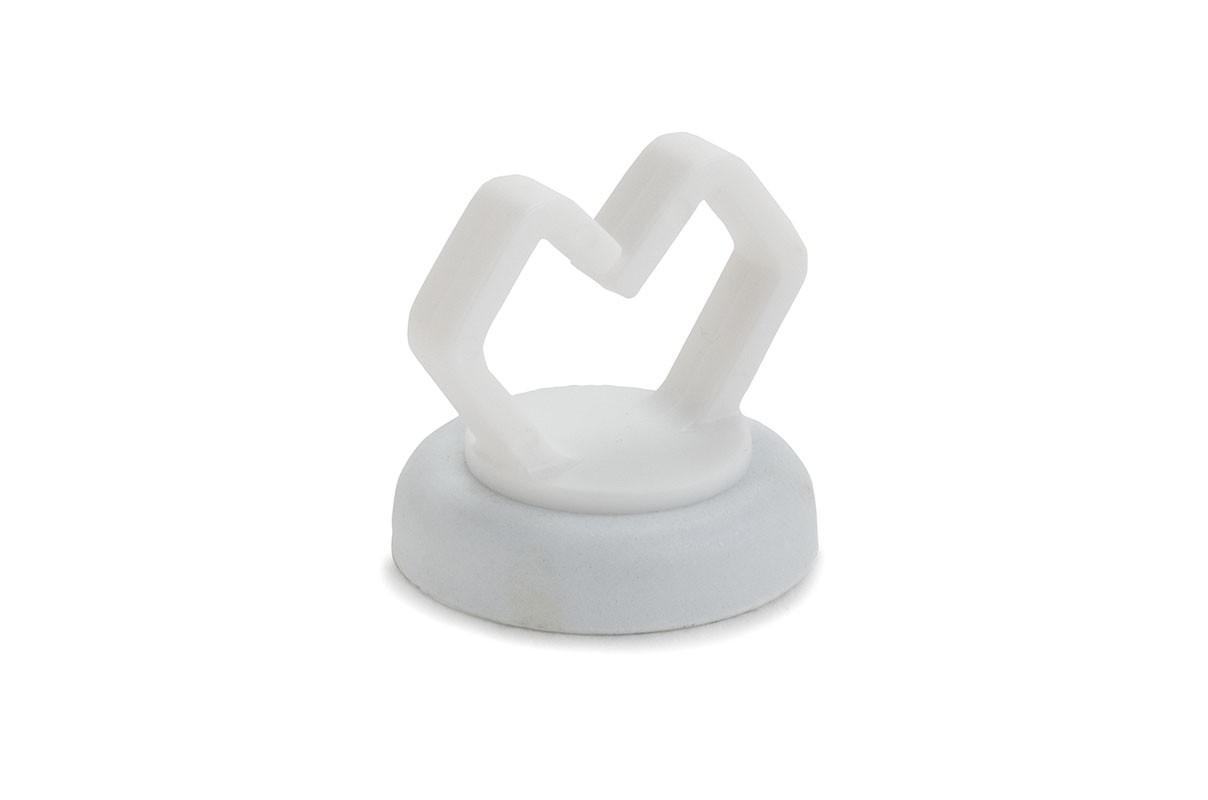

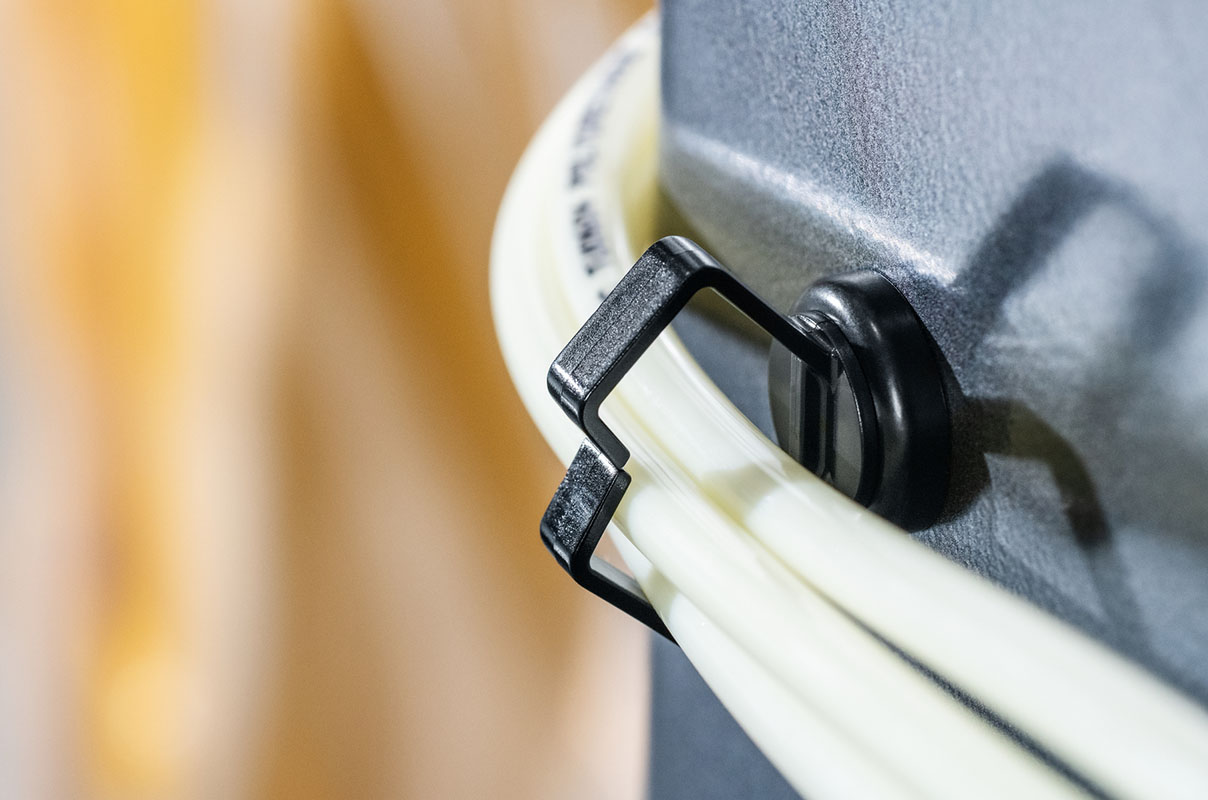

Magnetic Clips

No drilling or extra hardware required – just secure to steel surface.
Magnetic mounts are reliable even in debris, dirt and oil.
Use for permanent mounting or as a temporary installation tool.
Reuse, 360-degree rotation and reposition capabilities allow for a flexible mounting solution.
Leaves no residue if removed.

Documents

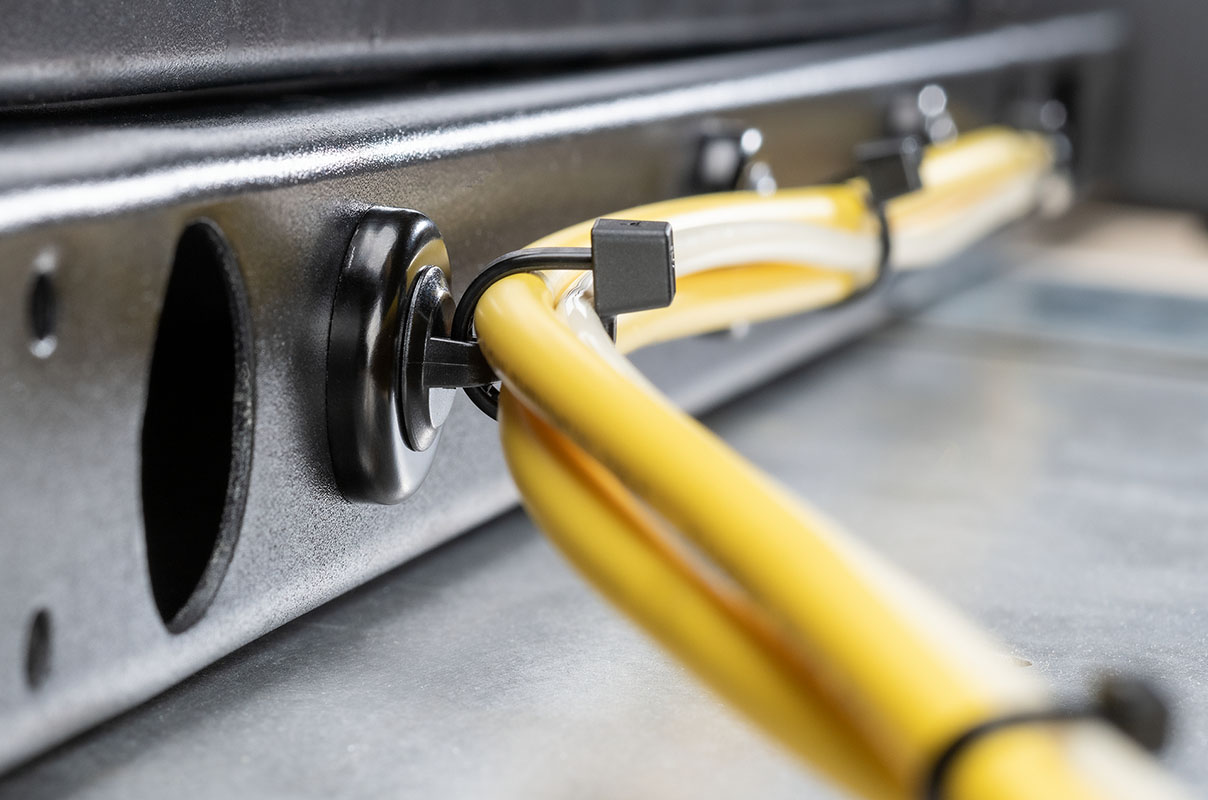

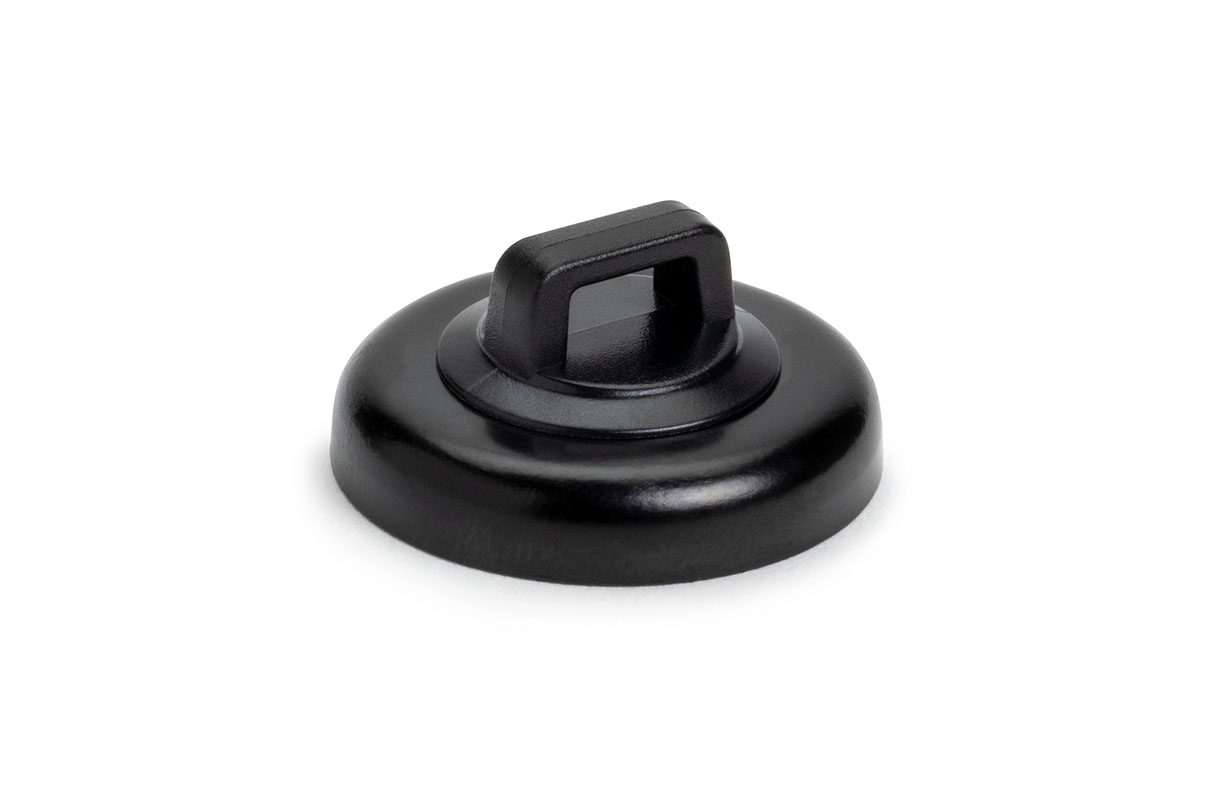

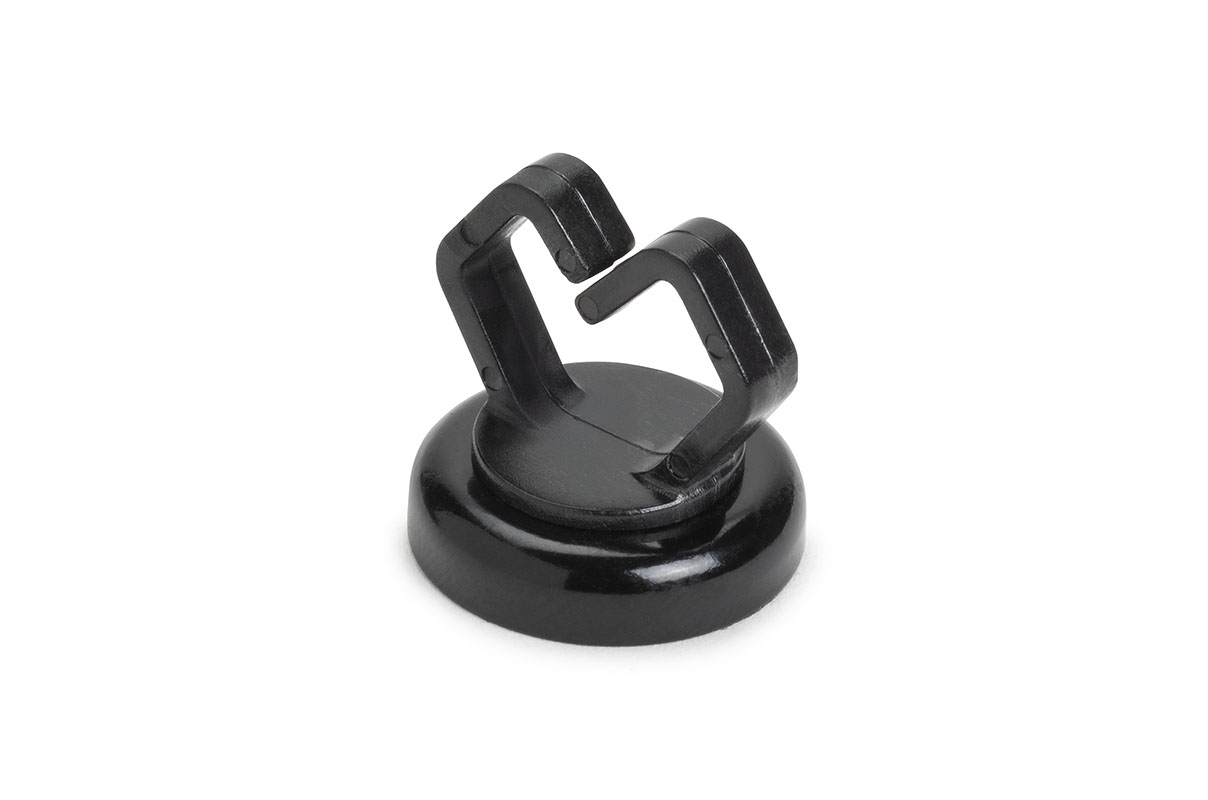

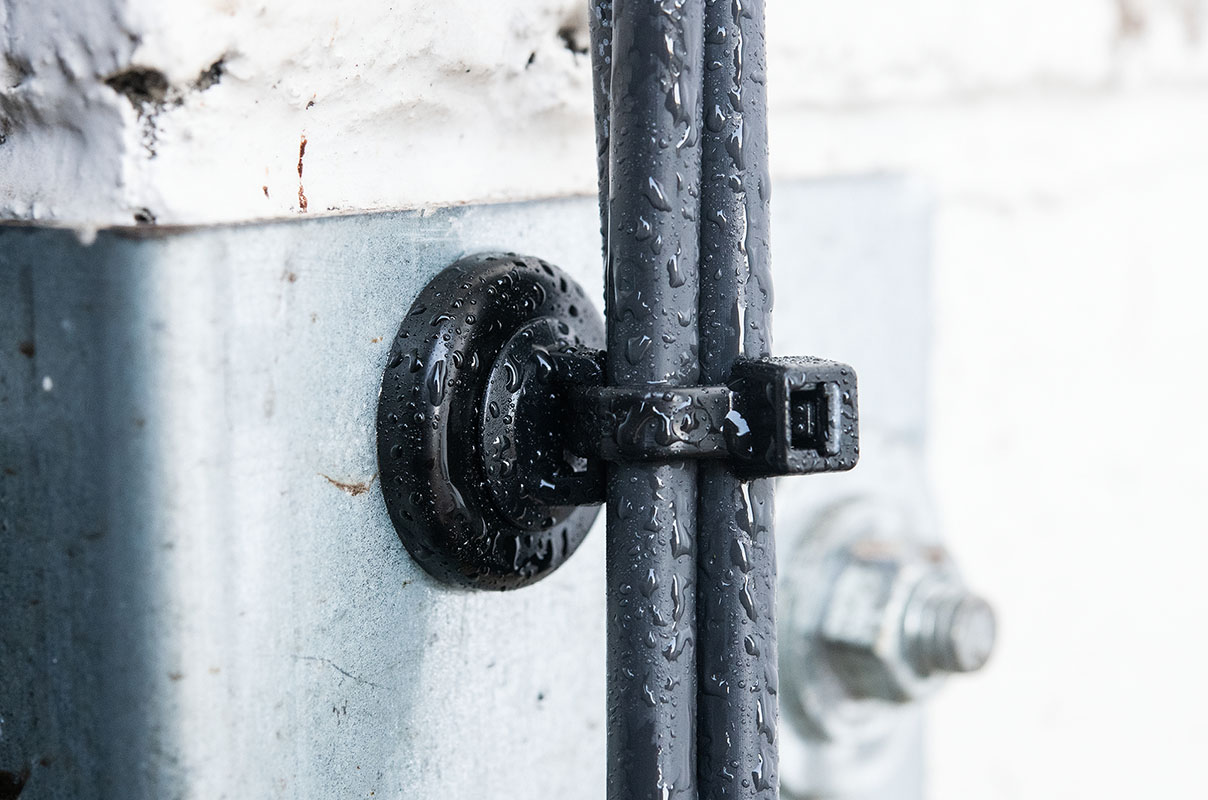

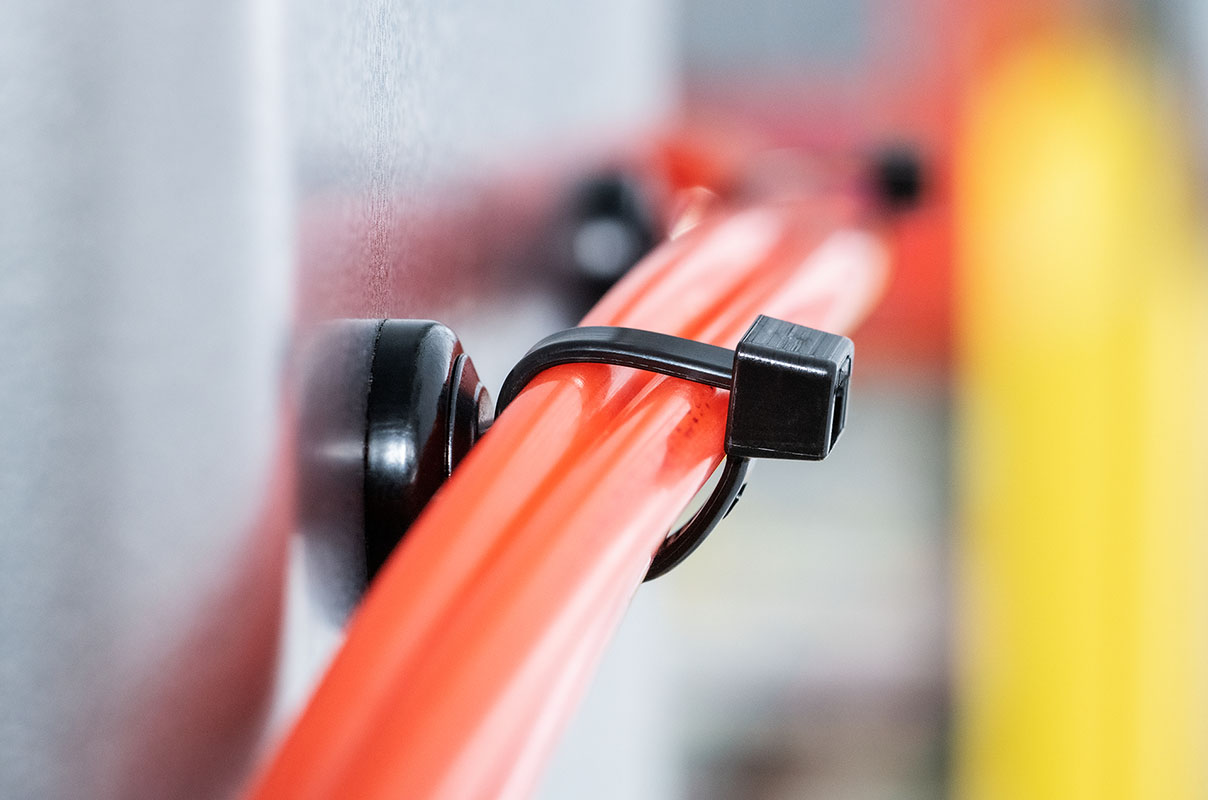

Magnetic Cable Tie Mount

No drilling or extra hardware required – just secure to steel surface.
Magnetic mounts are reliable even in debris, dirt and oil.
Use for permanent mounting or as a temporary installation tool.
Reuse, 360-degree rotation and reposition capabilities allow for a flexible mounting solution.
Leaves no residue if removed.

Documents

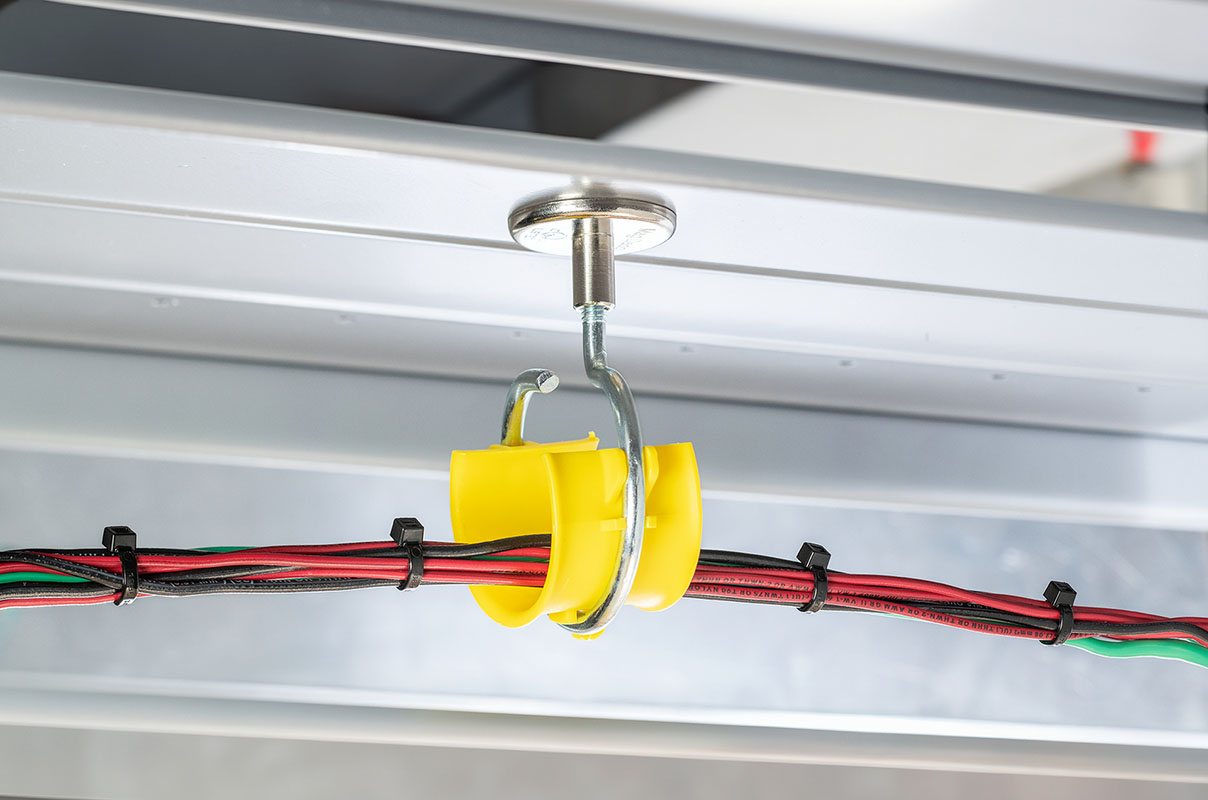

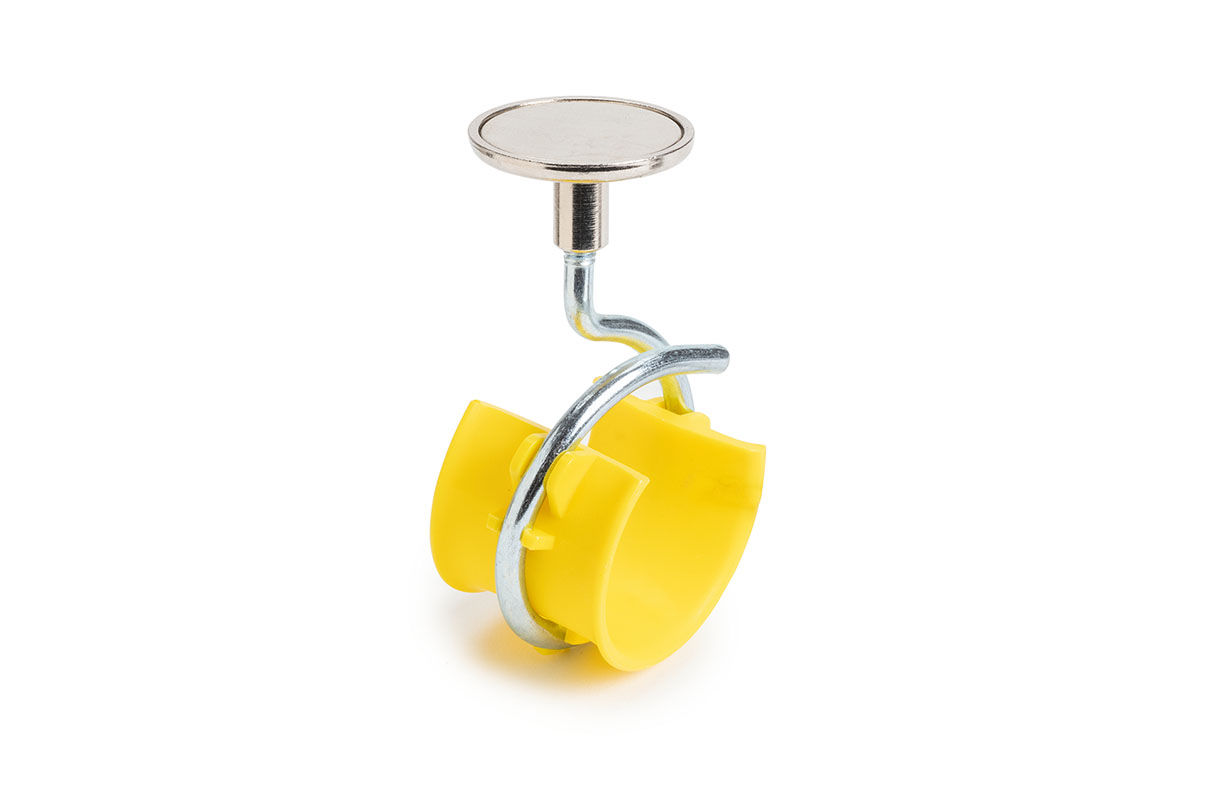

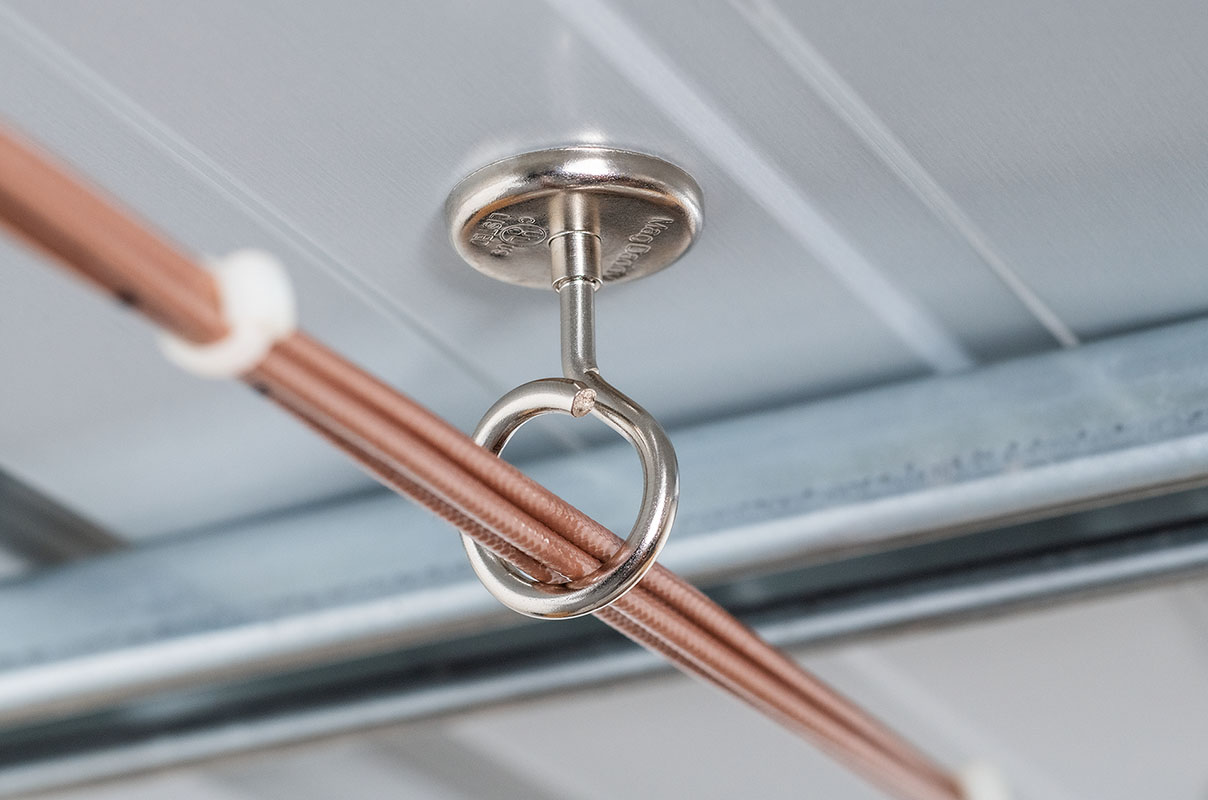

Magnetic Bridle Ring

No drilling or extra hardware required – just secure to steel surface.
Magnetic mounts are reliable even in debris, dirt and oil.
Use for permanent mounting or as a temporary installation tool.
Reuse and reposition capabilities allow for a flexible mounting solution.
Leaves no residue if removed.

Documents

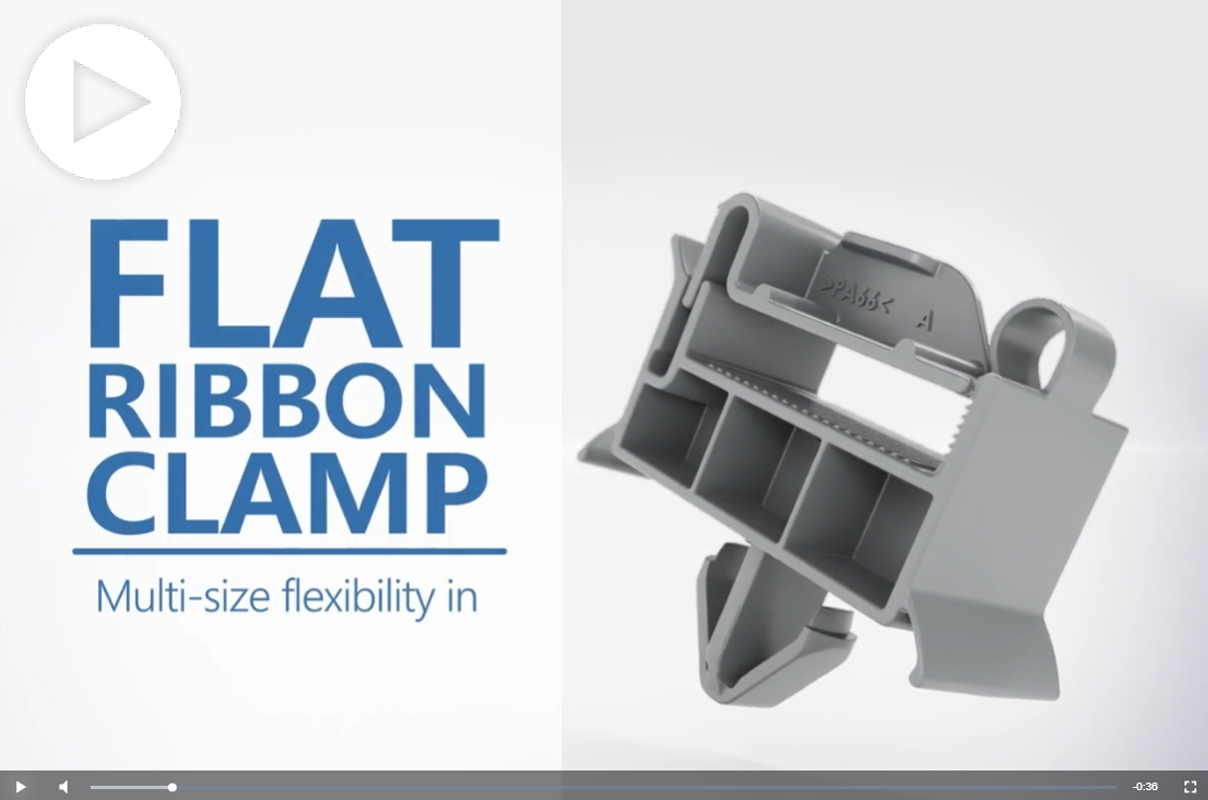

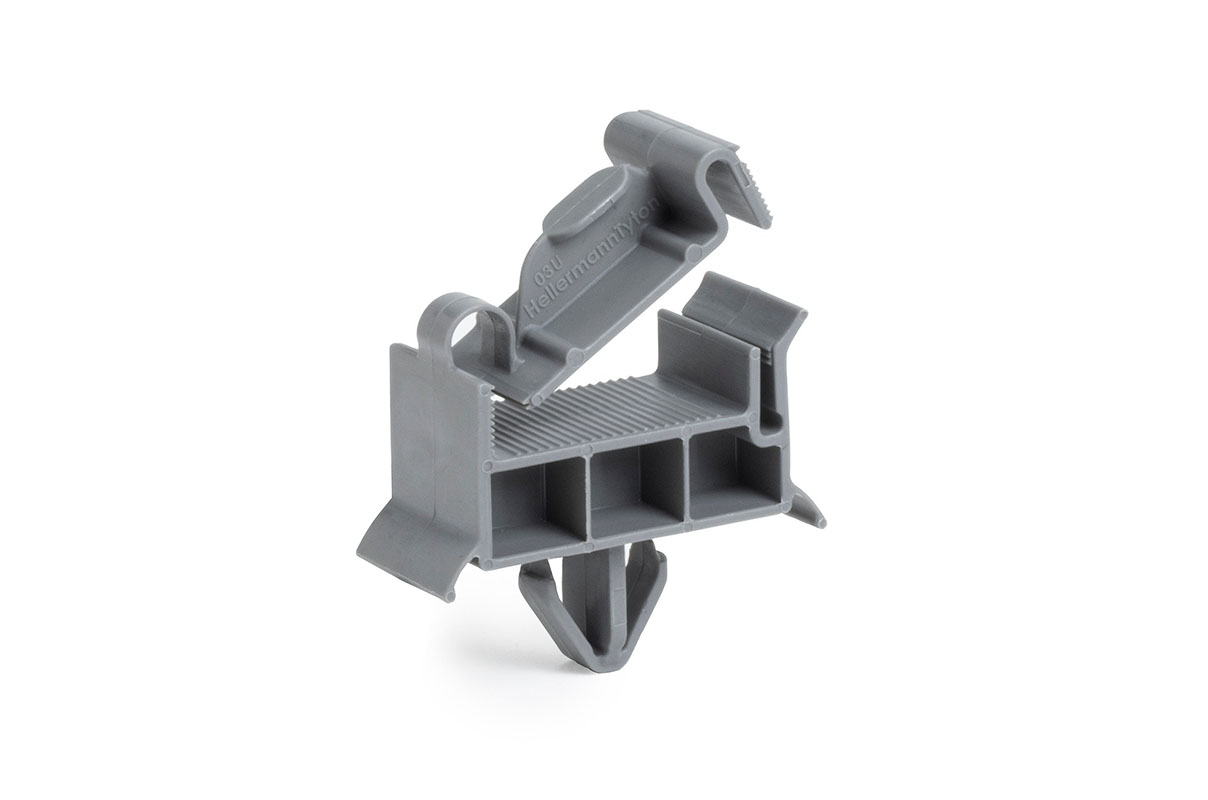

Flat Ribbon Clamp

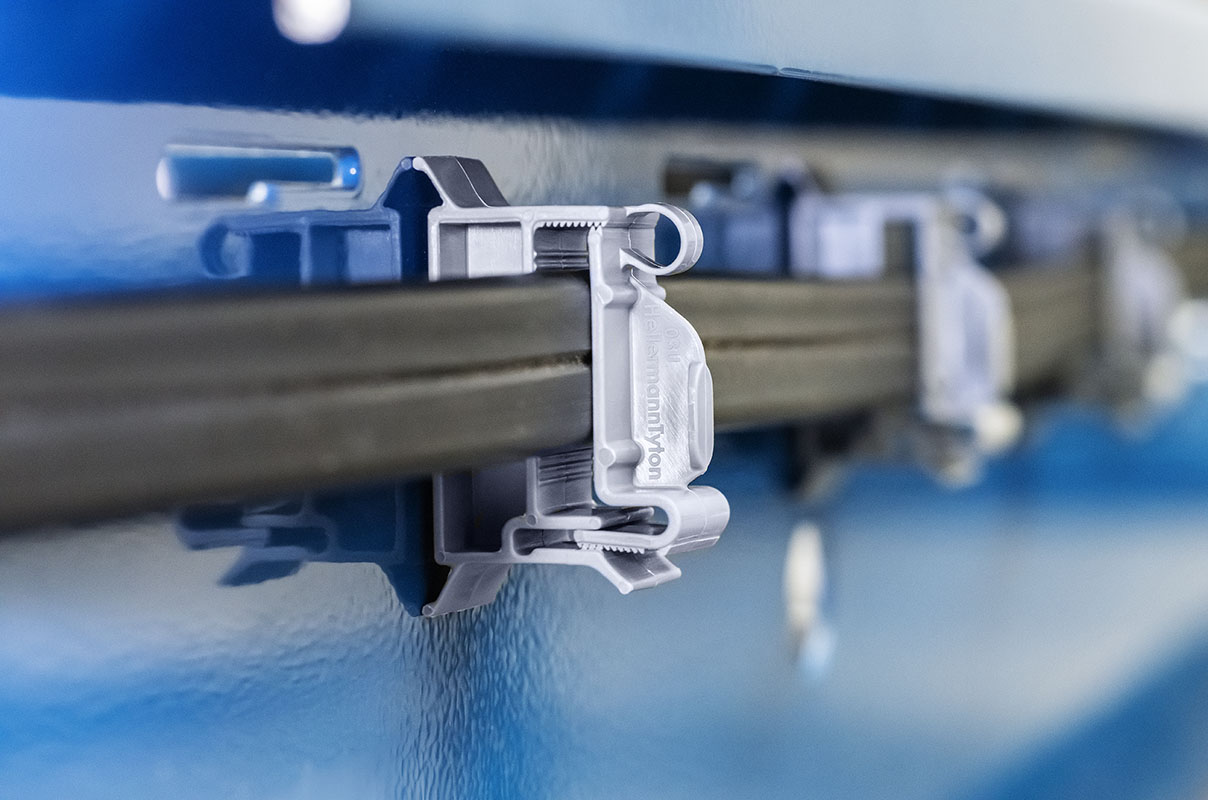

Flat Ribbon Clamp Arrowhead Mount

Adjustable height feature allows the clamp to close to the exact height of the ribbon cable.
Releasable for easy access to cables when necessary.
Arrowhead allows for fast and easy push-in installation with an audible "click."
Half-inch stand-off allows clearance for flat ribbon cable to safely route away from the surface.

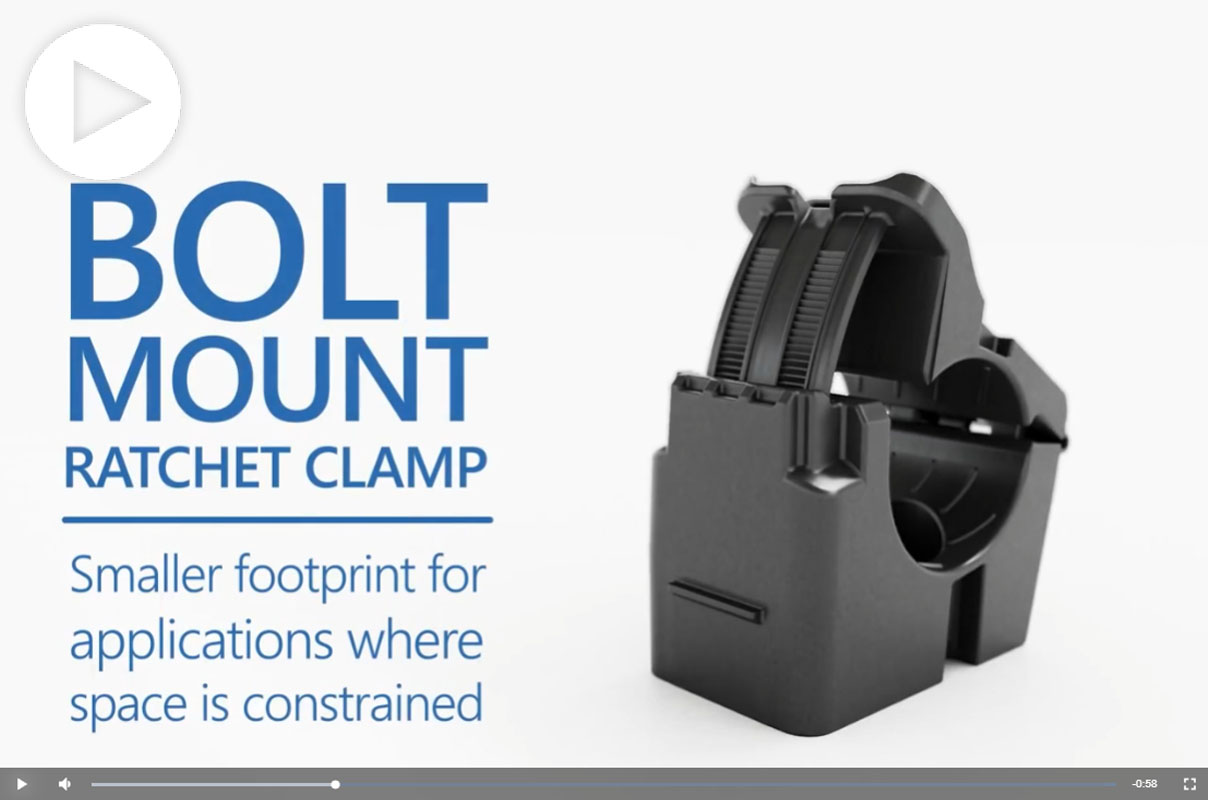

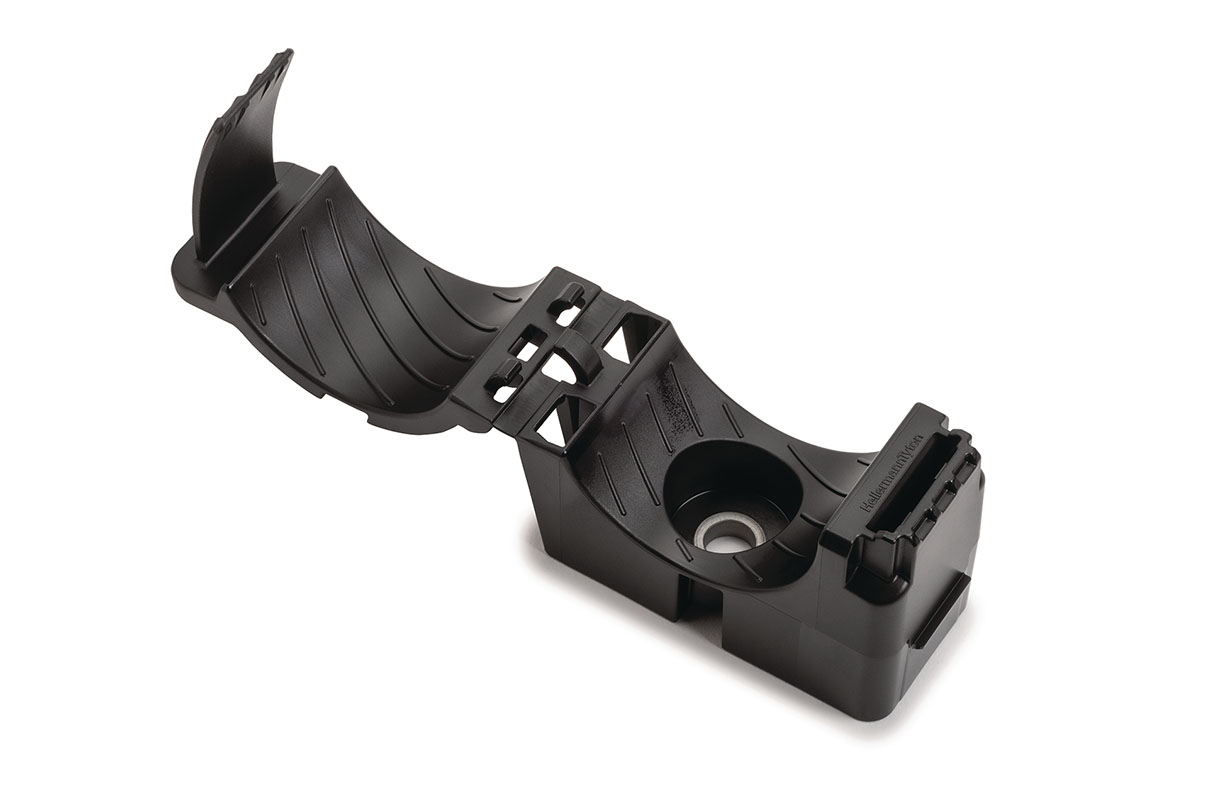

Bolt Mount Rachet Clamp

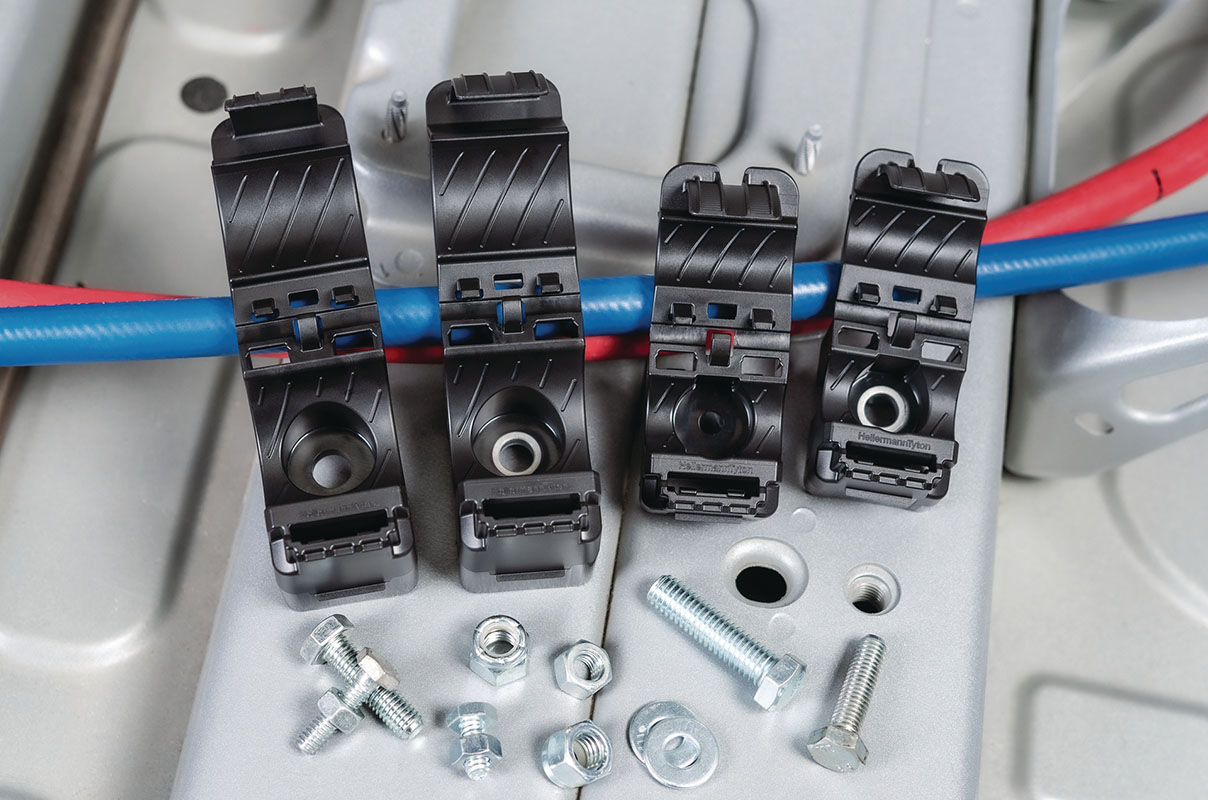

Bolt Mount Rachet Clamp

Smaller footprint for applications where space is constrained.
Attach using a bolt in an existing threaded hole, or bolt and nut for a non-threaded hole, for versatile mounting options.
Integrated metal bushing resists crushing when fastener is torqued down.
One-piece ratchet closure allows for fast and easy installation.
Clamp interior is designed to guide and center bundles to reduce pinching.

Documents

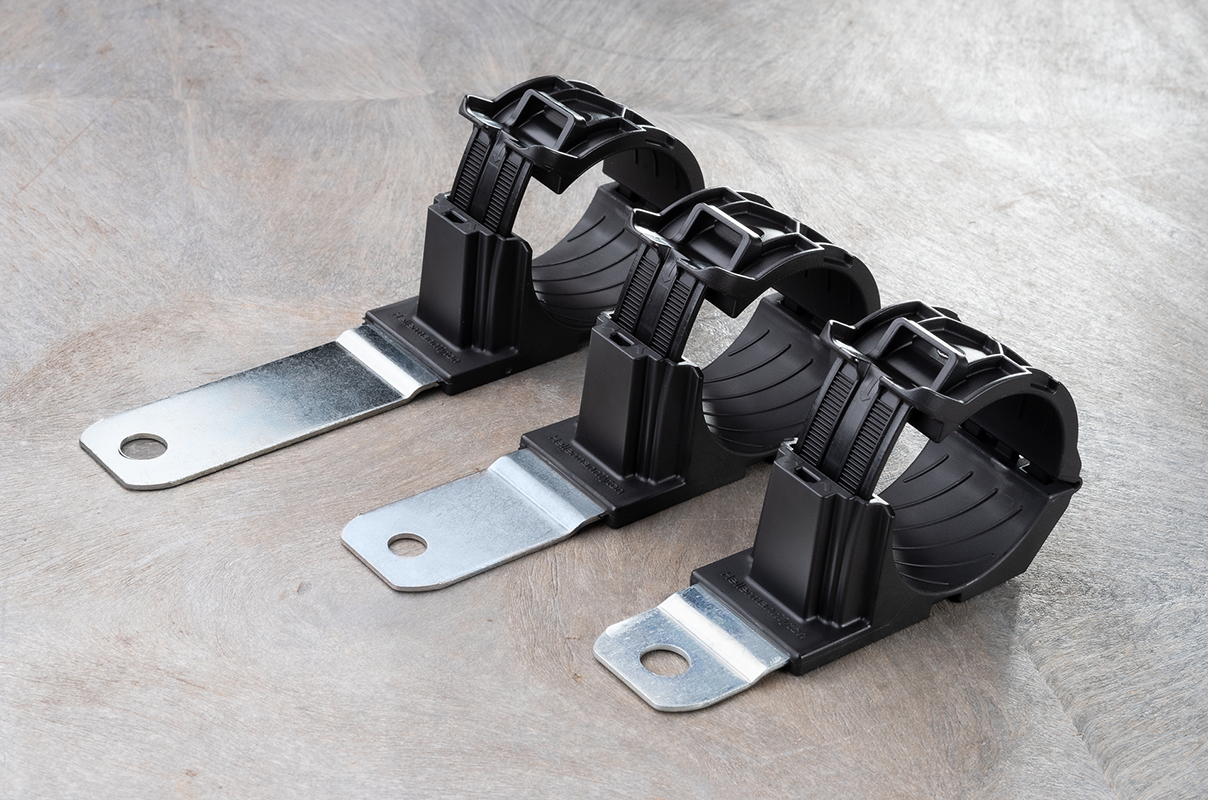

Rachet P-Clamp

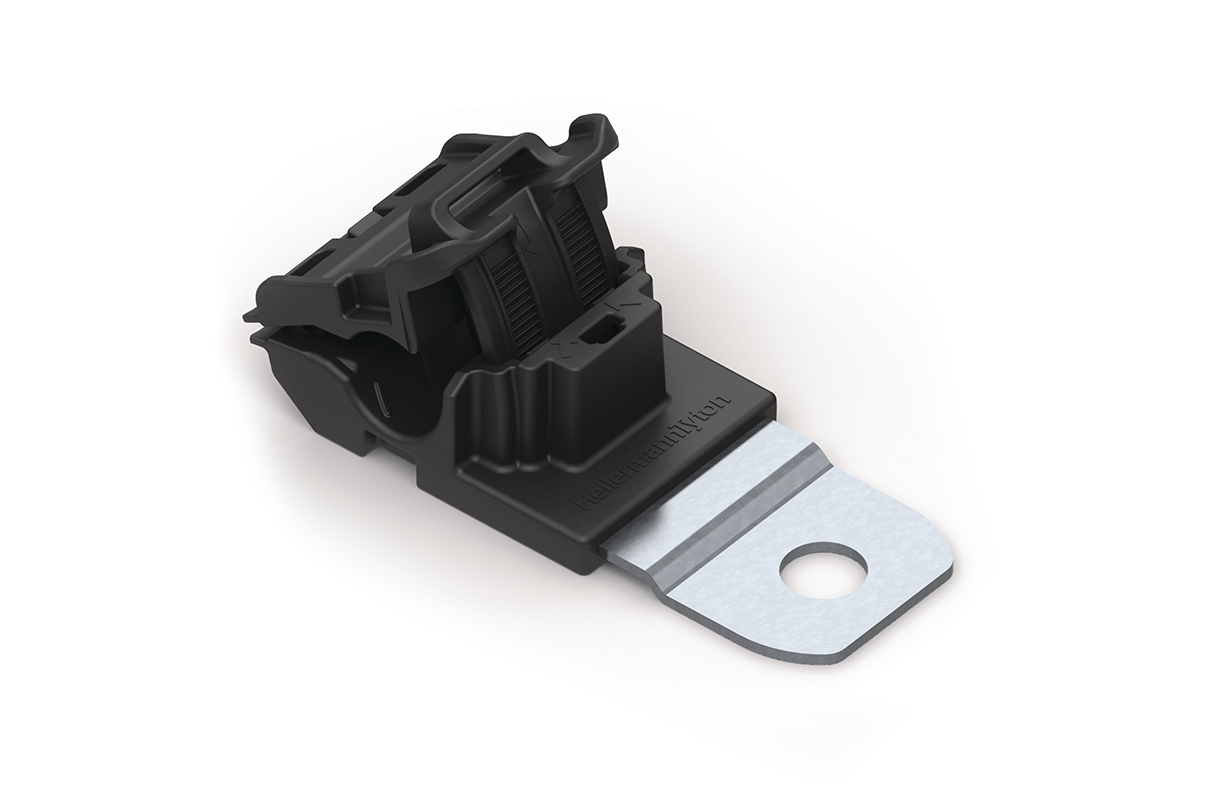

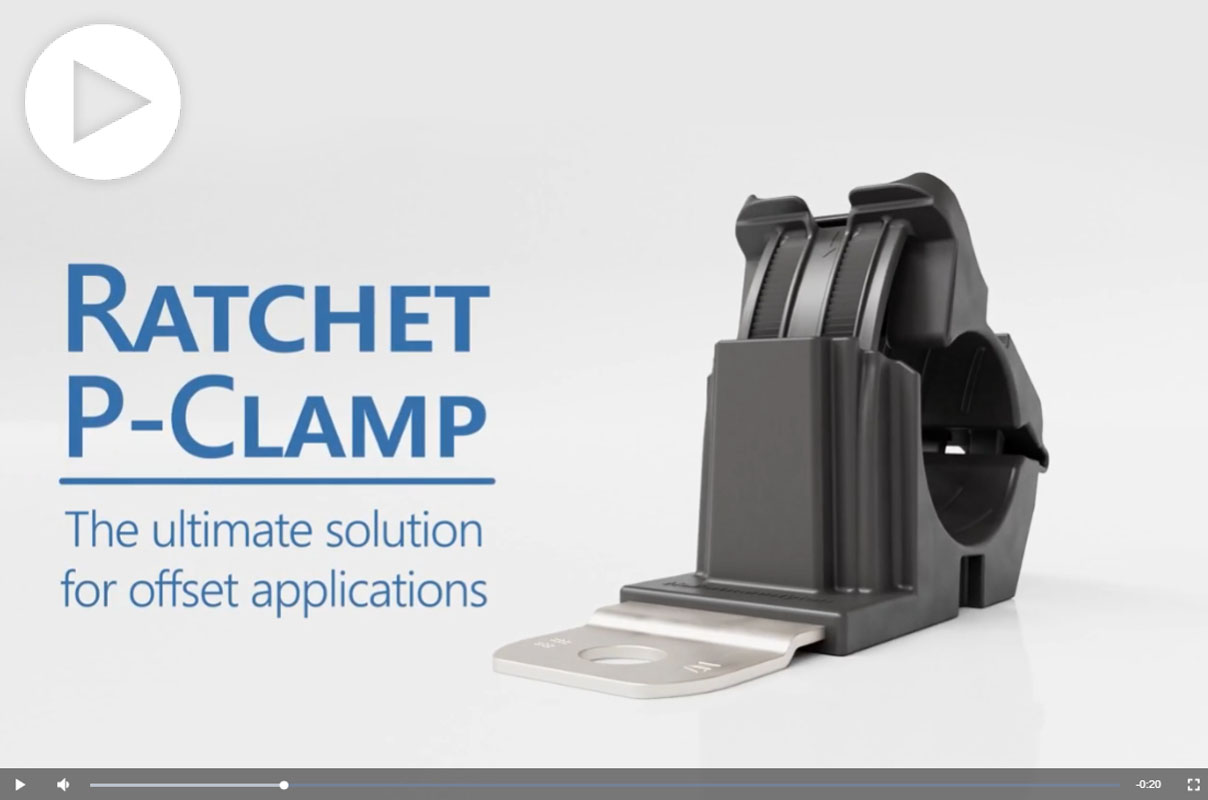

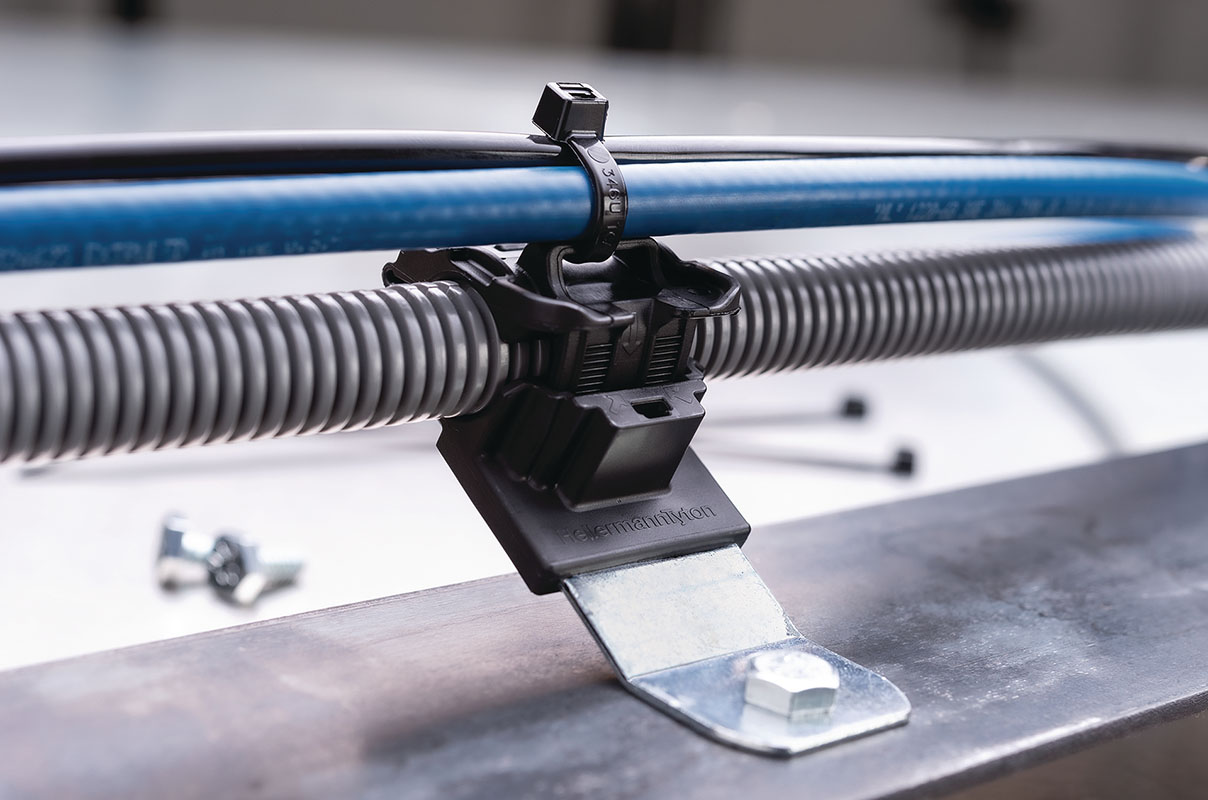

Ratchet P-Clamp

One-piece ratchet closure design allows for easy installation during pre- or final assembly.
Five sizes and multiple configurations handle a wide range of diameters and applications, reducing part inventory.
Clamp interior is designed to guide and center bundle to reduce pinching.
Easy release feature allows for quick adjustments and maintenance.
Impact modified, heat and UV stabilized PA66 provides long-term durability, indoors and out.

Documents

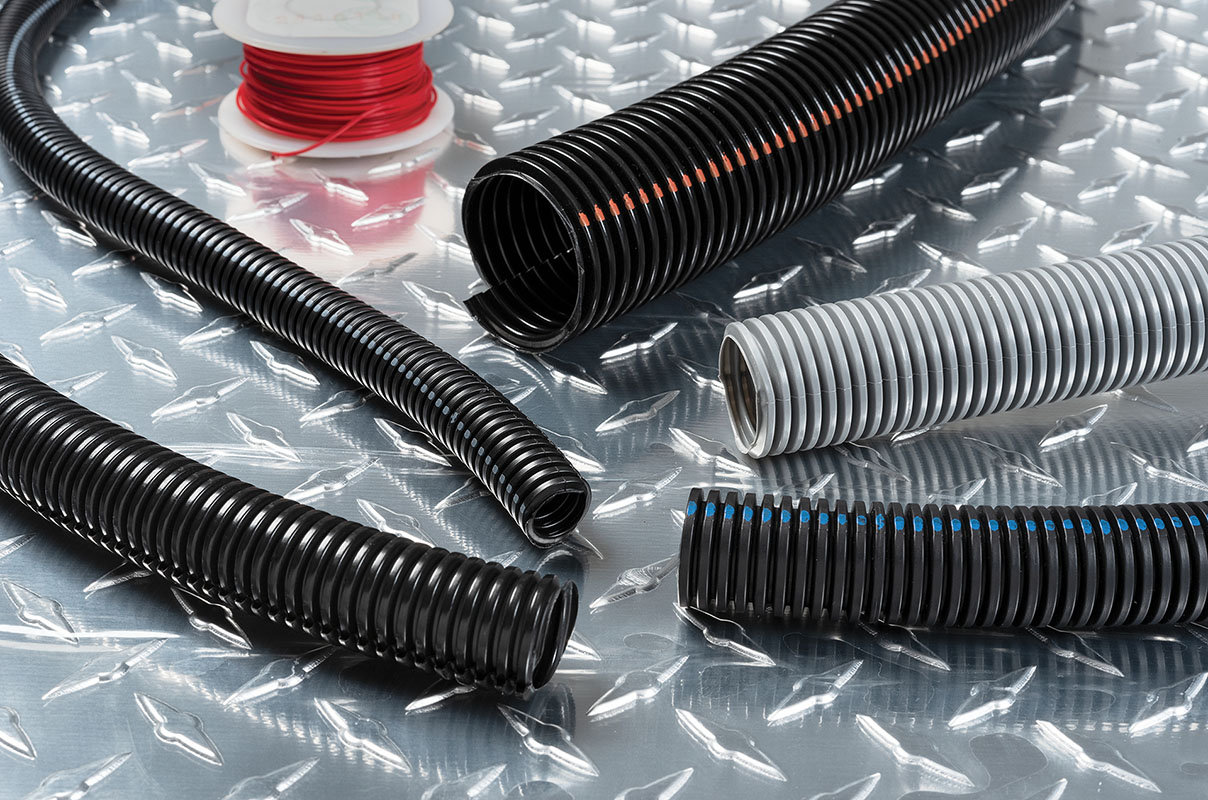

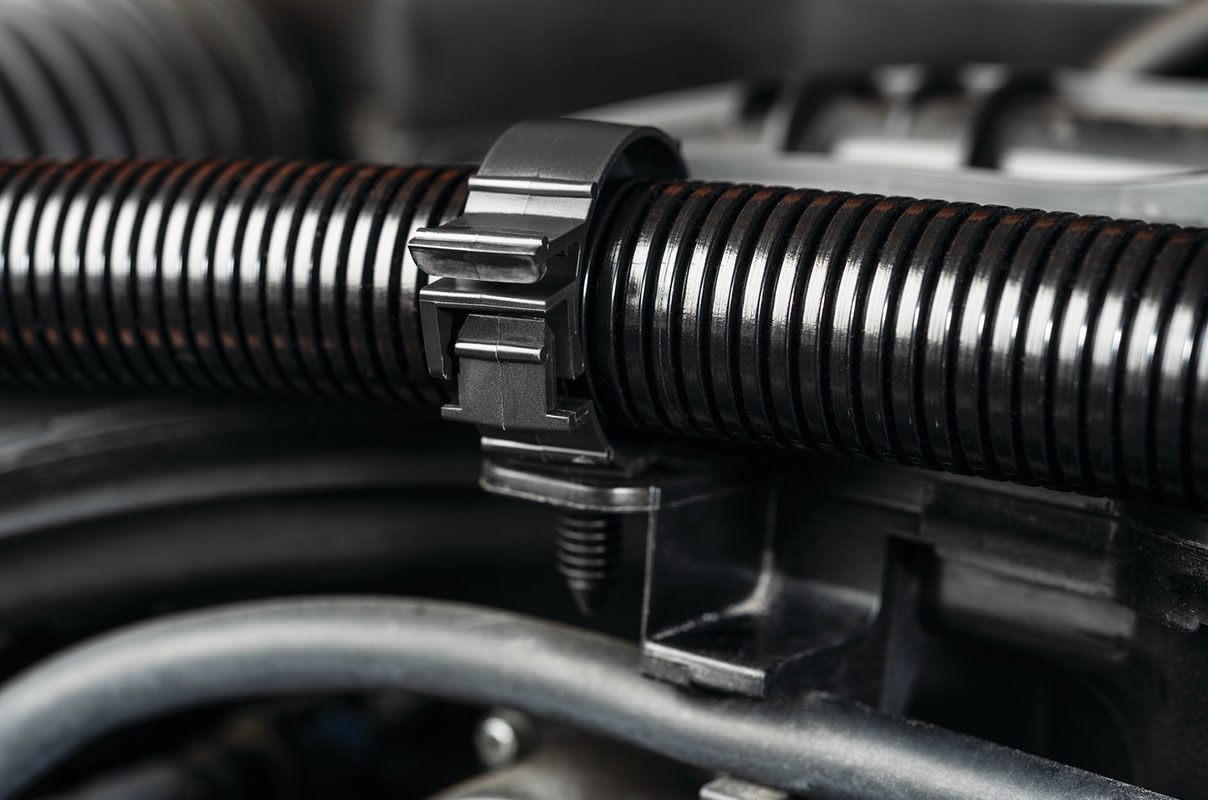

HelaGuard®

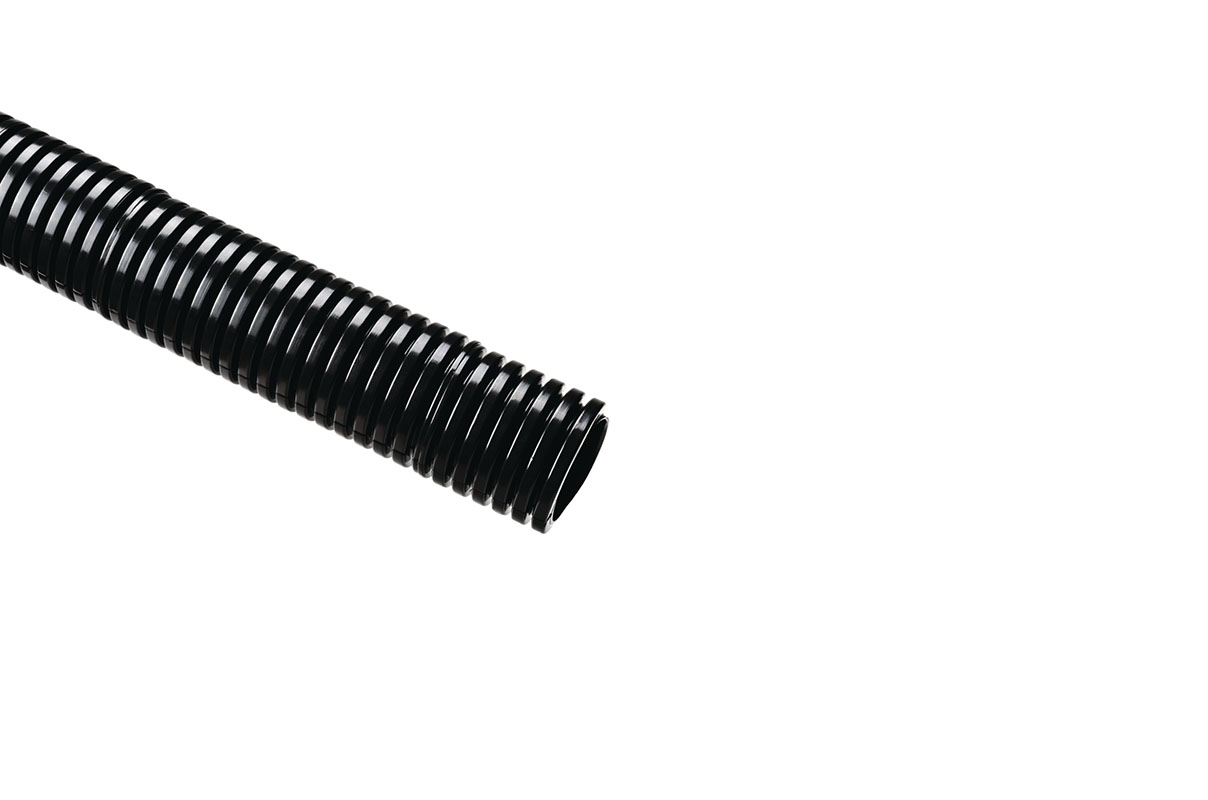

HelaGuard®

Material is easy to use and cut; reduces installation time and labor costs.
Flexible, abrasion resistant and durable for a variety of applications.
Good impact strength; recovers quickly if crushed.
UV resistant; suitable for use in outdoor applications.
Offered in fine or coarse corrugated pitch.

Documents

Grip Tie

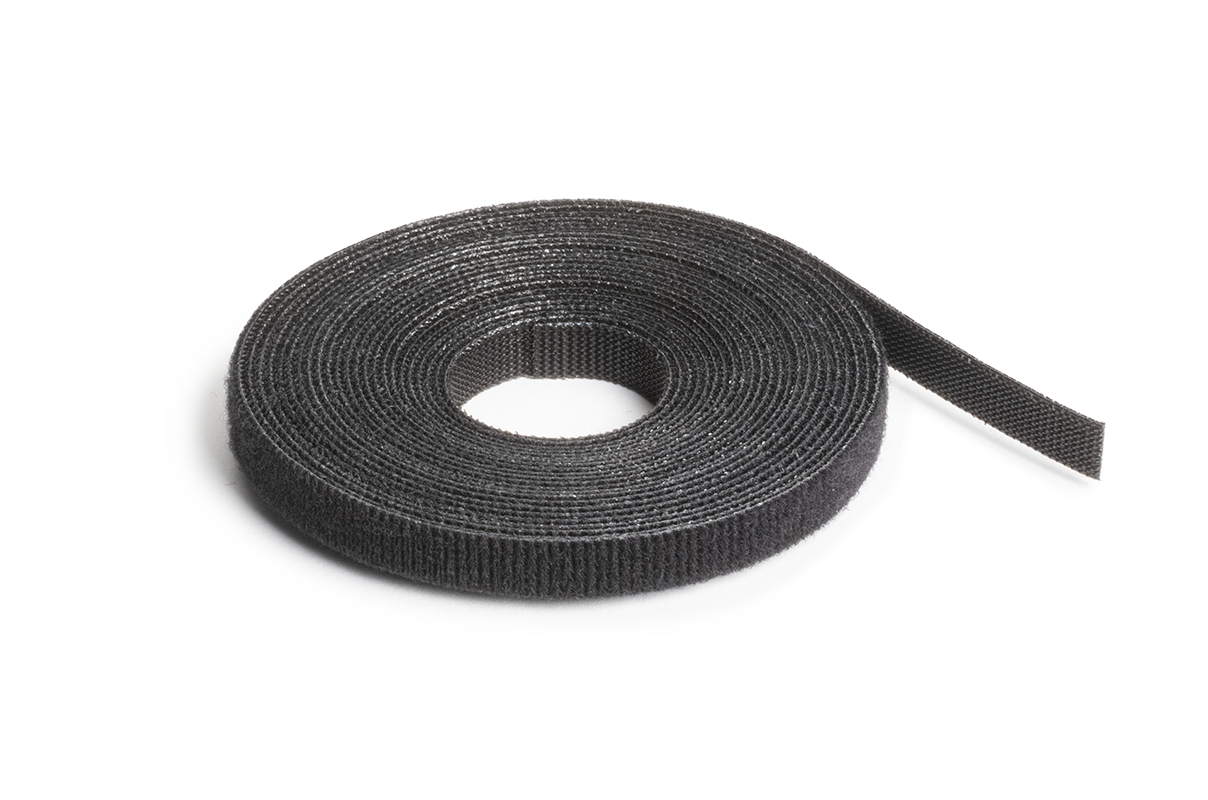

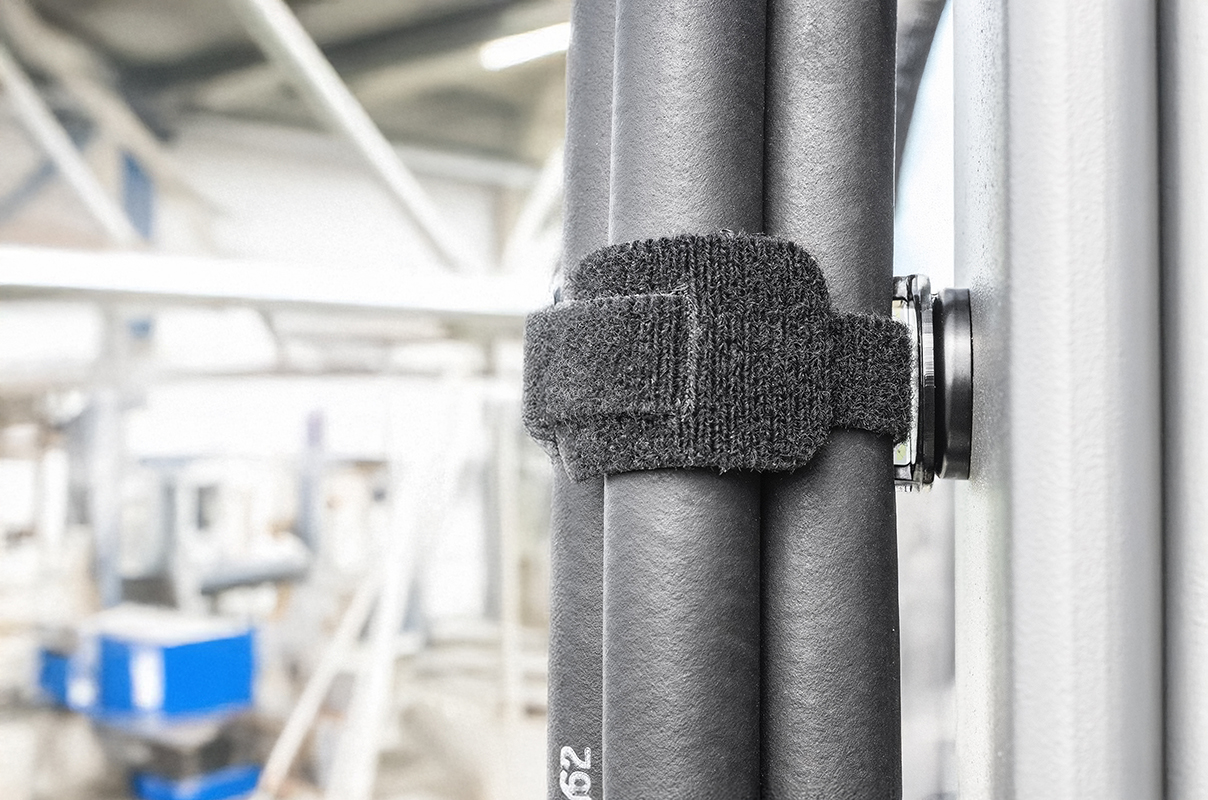

Grip Tie

Features quick release for repetitive access to cables and wire.
Can be opened and closed numerous times without failure.
Adjustable so one size can accommodate multiple bundle sizes.

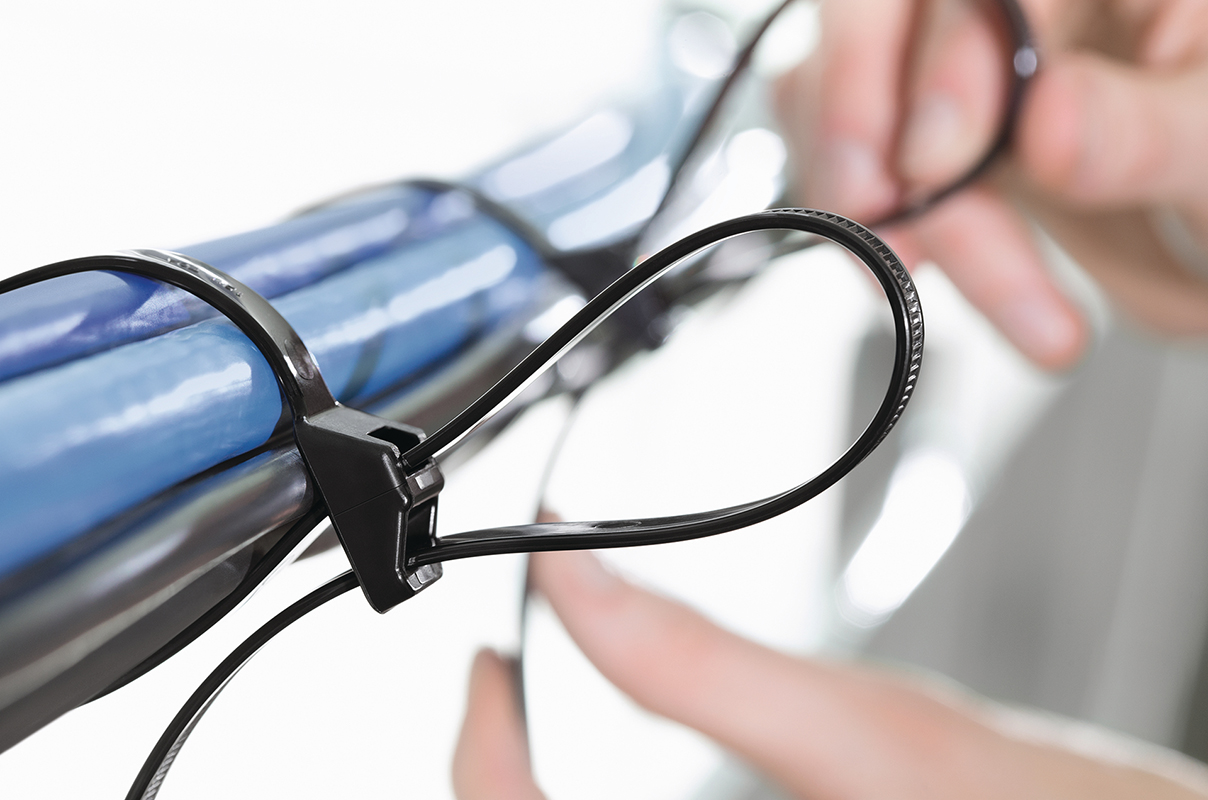

T250 Tie

T250 Mount

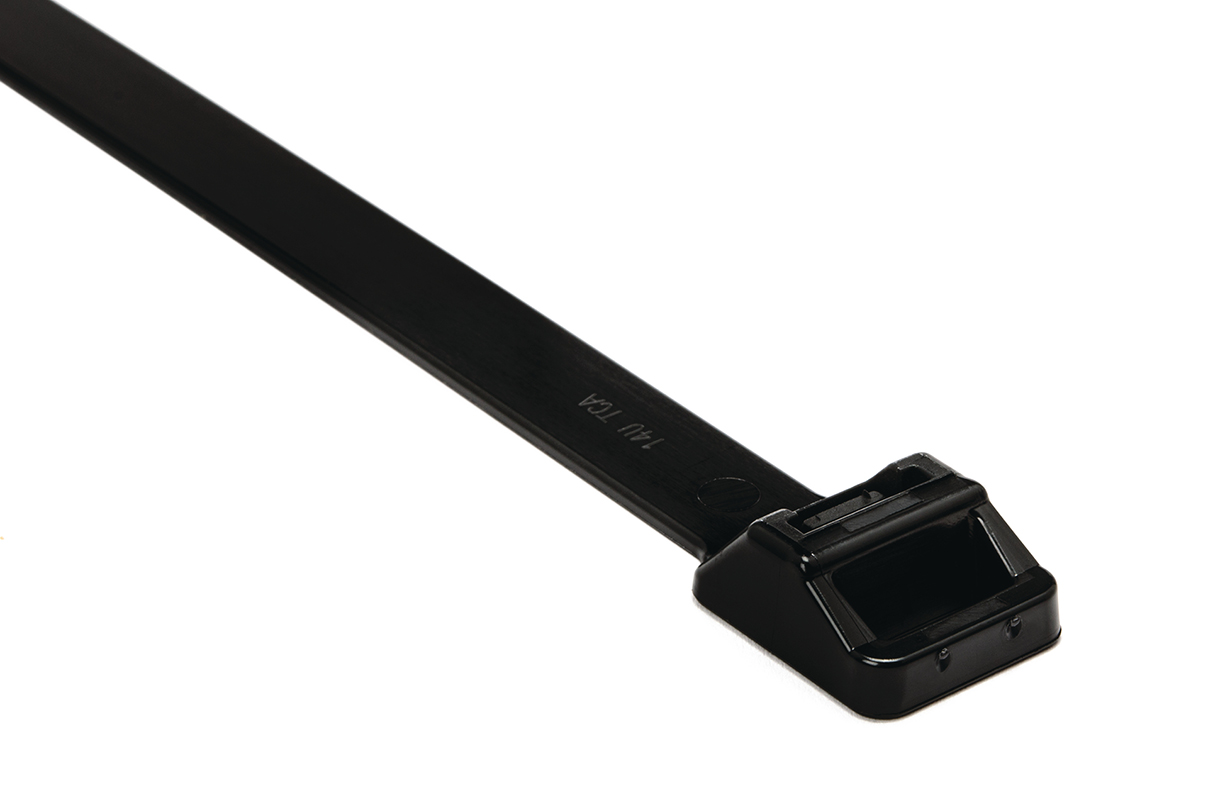

T250 Tie

Engineered and manufactured for maximum performance and quality.
Inside serration for a strong grip on bundles.
Easy application either manually or with a tensioning tool.

Documents

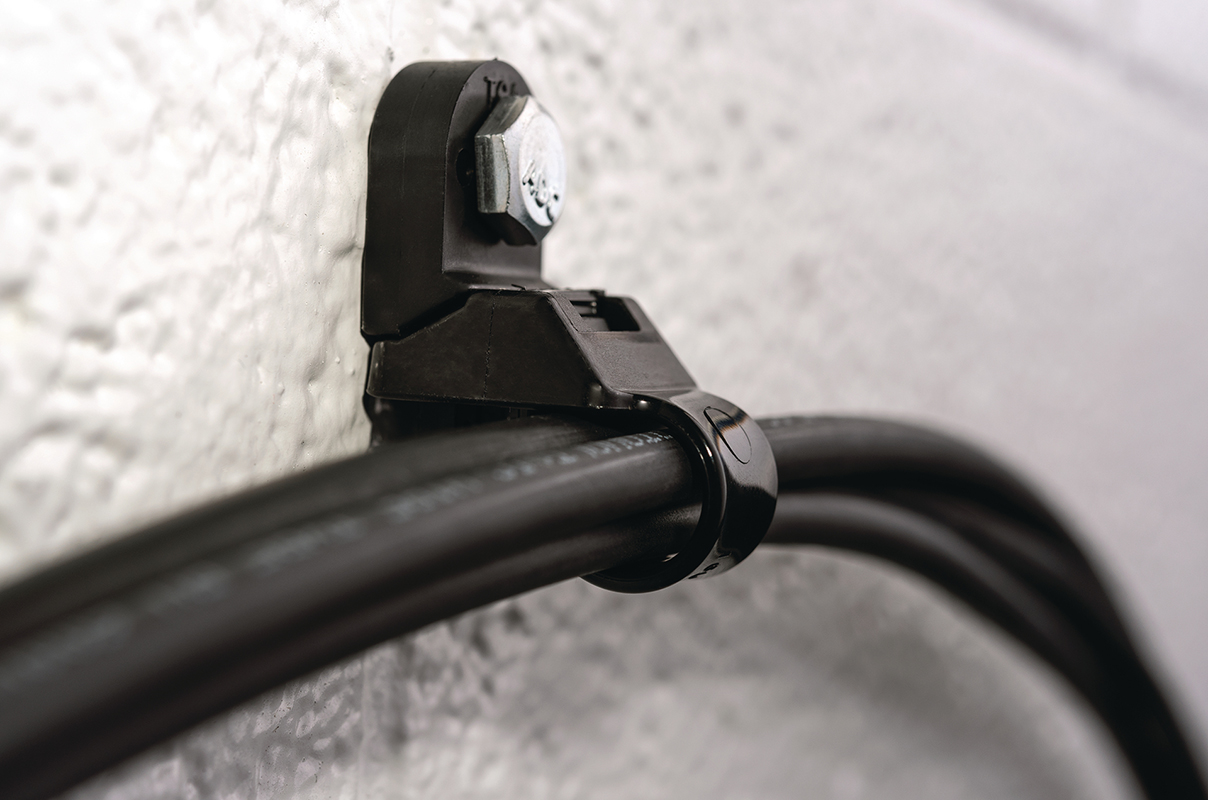

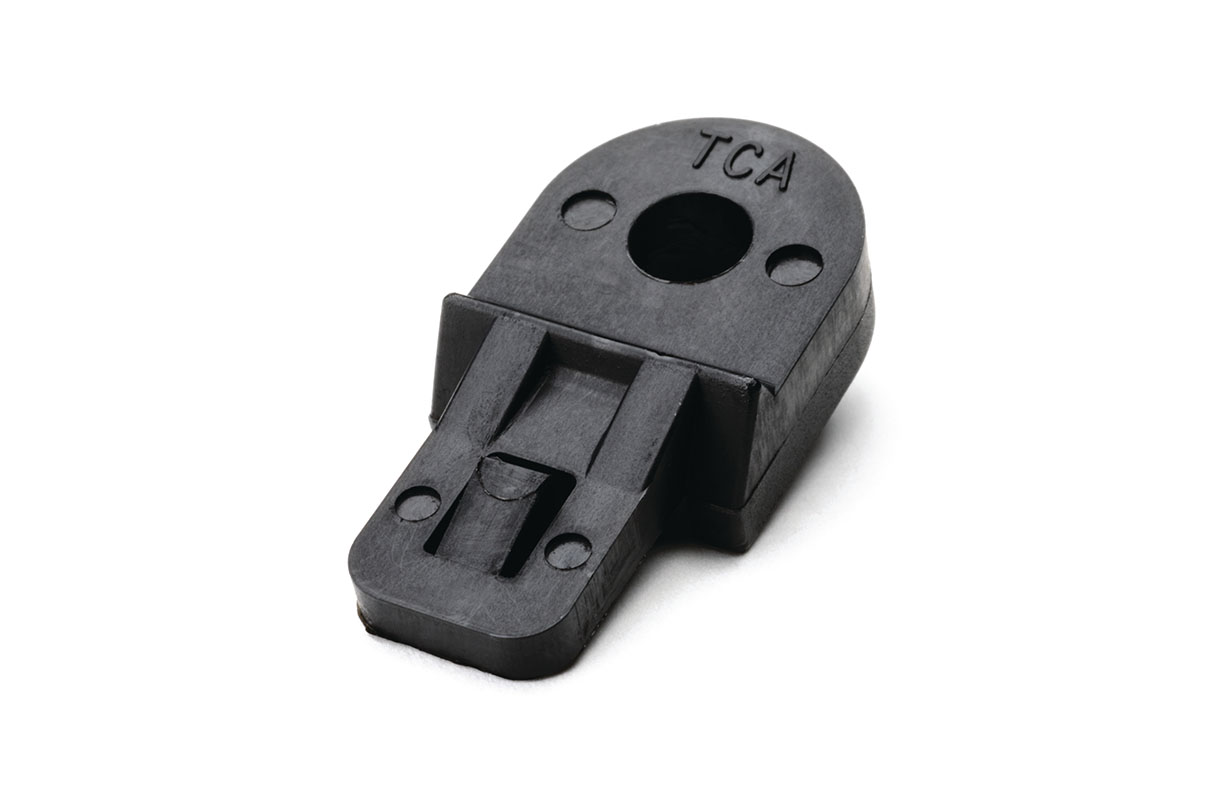

T250 Mount

Provides a robust insertion and mounting point for the cable tie.
